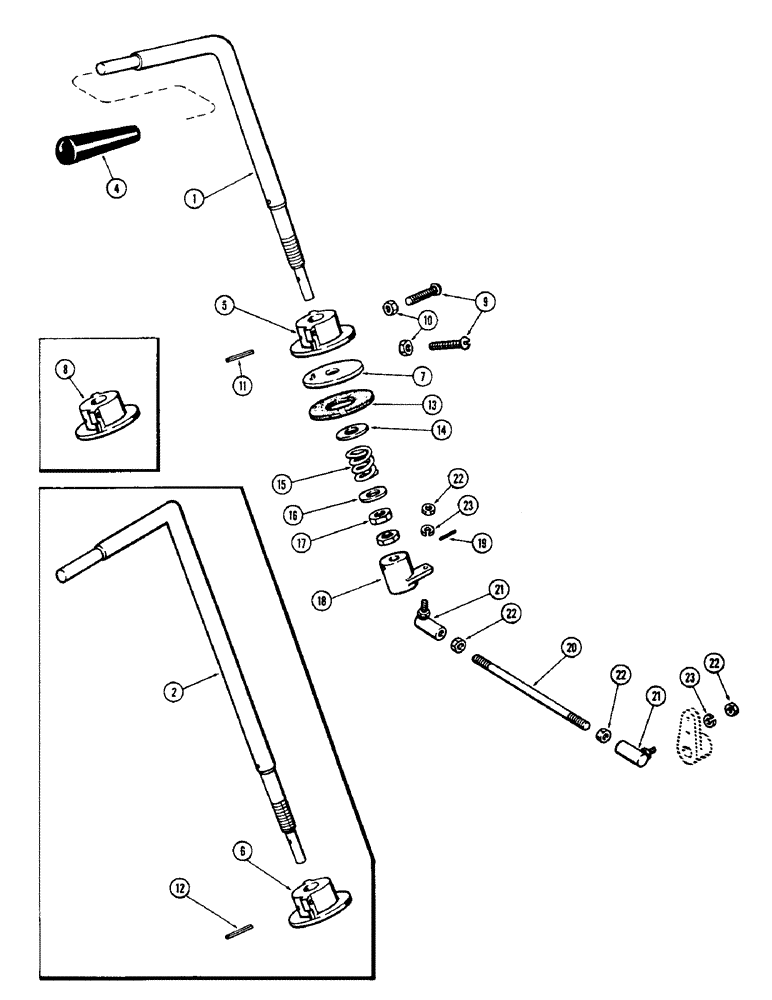

Запчасти Case 580 (052) - UPPER THROTTLE LINKAGE, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A38171

LEVER

- hand, throttle control (Drilled for 7/32" roll pin) (1st used trac. ser. no. 8312734)

1шт.

2

A37493

X

LEVER - hand, throttle control (Drilled for 5/8" roll pin) (Order 1-38171, 1-A38173 & 1-138-118) (Used prior to trac. ser. no. 8312734)

1шт.

4

A37247

KNOB

HANDLE - hand lever (Use adhesive)

1шт.

5

A38173

STOP

COLLAR - stop, friction plate (Use w/A38171) (Drilled for 7/32" roll pin) (1st used trac. ser. no. 8312734)

1шт.

6

A38021

STOP

COLLAR - stop, friction plate (Use w/A37493) (Drilled for 5/32" roll pin) (Adapted for A57029 disc) (Used trac. ser. no. 8309475 thru 8312734)

1шт.

7

A57029

DISC

- throttle plate (Used w/A38173 & A38021 collar) (1st used trac. ser. no. 8309475)

1шт.

8

A37263

X

COLLAR - stop, friction plate (Drilled for 5/32" roll pin) (Not adapted for A57029 disc) (Used prior to trac. ser. no. 8309475) (Order 1-A38021 & 1-A57029)

1шт.

9

75-424

SCREW

- stop, 1/4 x 1-1/2" N.C. rd. hd.

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

138-118

LOCK PIN,7/32" x 1 1/2", Slotted

PIN, , Use w/A38171 7/32" x 1 1/2", Slotted

1шт.

12

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, (use w/A37493) 5/32" x 1 1/2", Slotted

1шт.

13

A11969

GASKET

DISC - friction

1шт.

14

A32838

WASHER

- friction disc

1шт.

15

A34113

SPRING

- tension, hand lever

1шт.

16

195-33

WASHER,1/2"

- 17/32 x 1-1/16" x 13 ga.

1шт.

17

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

2шт.

18

G1338

LEVER

- bottom, hand lever

1шт.

19

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

20

A35642

ROD

- hand lever to cross shaft

1шт.

21

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate rod

2шт.

22

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
