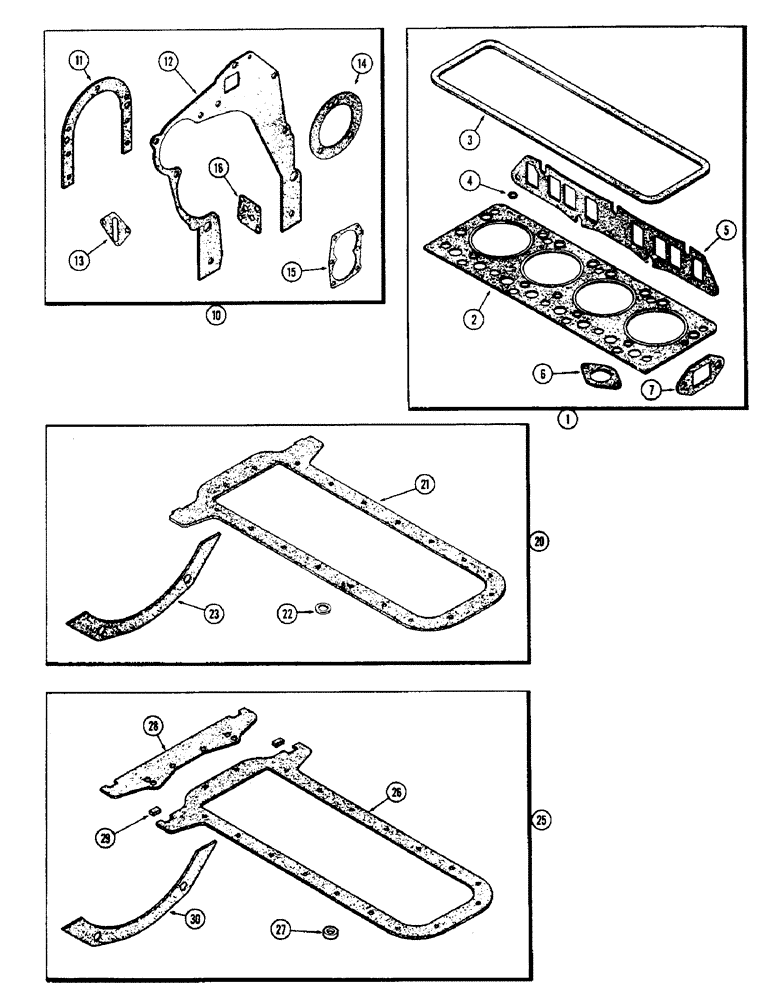

Запчасти Case 580 (048) - ENGINE GASKET KITS, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G11963

GASKET

VALVE GRIND GASKET KIT (See note), Inlcudes: Ref. 2 - 7

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A43021

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

G46826

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

CYLINDER BLOCK GASKET KIT - engine (See note) (Replaces G11916), Inlcudes: Ref. 11 - 16

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover (Replaces A30010)

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter bracket

1шт.

20

A41447

KIT

OIL PAN GASKET KIT (Used w/cast iron pan) (1st used eng. ser. no. 2639670) (See note), Inlcudes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order ref. 20)

1шт.

22

A58608

GASKET

- drain plug (3/4" I.D.) (Nylon)

1шт.

23

G46913

GASKET

- block to torque tube

1шт.

25

A40711

GASKET KIT

OIL PAN GASKET KIT - engine (Used w/stamped pan) (Used prior to eng. ser. no. 2639670) (See note), Inlcudes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order ref. 25)

1шт.

27

A27927

OIL PAN GASKET SET

- drain plug

1шт.

28

A36653

GASKET

- radius rod support

1шт.

29

A11604

OIL PAN GASKET SET

- rear, oil, Serial Range: pan-support

2шт.

30

G46913

GASKET

- block to torque tube

1шт.
