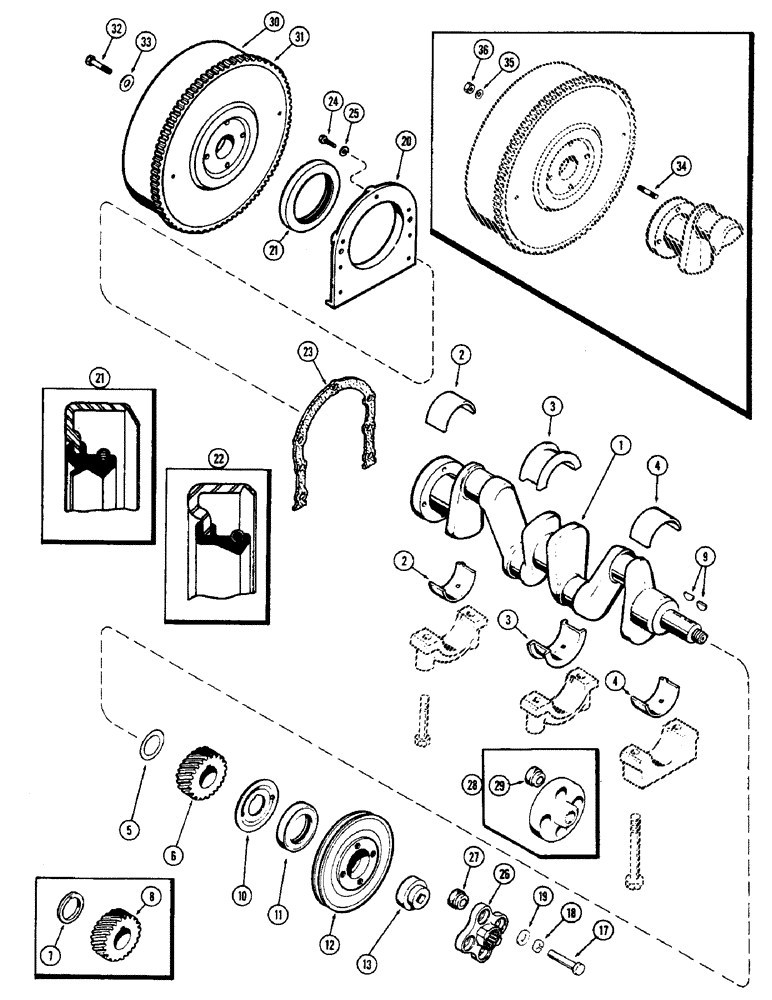

Запчасти Case 580 (043A) - CRANKSHAFT & FLYWHEEL, (159) SPARK IGNITION ENGINE, POWER SHUTTLE (10) - ENGINE

1

A37210

CRANKSHAFT

1шт.

2

G37051

KIT

LINER - main brg., rear (Std.) (Set of 2)

1шт.

2

G37052

KIT

LINER - main brg., rear (.002" undersize) (Set of 2)

1шт.

2

A42322

FIP KIT

LINER - main brg., rear (.010" undersize) (Set of 2)

1шт.

2

G37053

KIT

LINER - main brg., rear (.020" undersize) (Set of 2)

1шт.

2

G37054

KIT

LINER - main brg., rear (.040" undersize) (Set of 2)

1шт.

3

G37047

KIT

LINER - main brg., center (Std.) (Set of 2)

1шт.

3

G37048

KIT

LINER - main brg., center (.002" undersize) (Set of 2)

1шт.

3

A42321

FIP KIT

LINER - main brg., center (.010" undersize) (Set of 2)

1шт.

3

G37049

KIT

LINER - main brg., center (.020" undersize) (Set of 2)

1шт.

3

G37050

KIT

LINER - main brg., center (.040" undersize) (Set of 2)

1шт.

4

G37043

KIT

LINER - main brg., front (Std.) (Set of 2)

1шт.

4

G37044

KIT

LINER - main brg., front (.002" undersize) (Set of 2)

1шт.

4

A42320

BEARING LINER

LINER - main brg., front (.010" undersize) (Set of 2)

1шт.

4

G37045

KIT

LINER - main brg., front (.020" undersize) (Set of 2)

1шт.

4

G37046

KIT

LINER - main brg., front (.040" undersize) (Set of 2)

1шт.

5

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

6

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)

1шт.

7

A29294

BUSHING

SPACER - thrust (Use w/A29263 gear only)

1шт.

8

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Order A39280)

1шт.

9

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

10

A29259

SLINGER

- oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

12

A50962

PULLEY

- fan drive (Replaces G11342 & A39931)

1шт.

13

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

17

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

20

A38390

RETAINER

- rear oil seal (Replaces G2017)

1шт.

21

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A39027)

1шт.

22

A39027

OIL SEAL

- oil, rear (Replaces A36610) (Order A51339)

1шт.

23

A39188

GASKET

- retainer (Replaces G46802 & A38196)

1шт.

24

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- 1/4 x 3/4" N.C. hex.

4шт.

24

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- 1/4 x 1" N.C. hex.

3шт.

25

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

7шт.

26

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - pump drive (Replaces A35558), Inlcudes: Ref. 27

1шт.

27

A45216

BUSHING

- coupling

4шт.

28

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible (Order A51885), Inlcudes: Ref. 29

1шт.

29

G36905

BLOCK

BUSHING - coupling

4шт.

30

G11860

FLYWHEEL

ASSY., Inlcudes: Ref. 31

1шт.

31

G11710

GEAR

- ring (135 teeth)

1шт.

32

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - 7/16 x 2-1/8" N.F. place (See ref. 34 before ordering)

4шт.

33

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

34

A29434

STUD

- 7/16" N.F. x 1-3/4" (See ref. 32 before ordering)

4шт.

35

92-7

LOCK WASHER,7/16"

4шт.

36

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.
