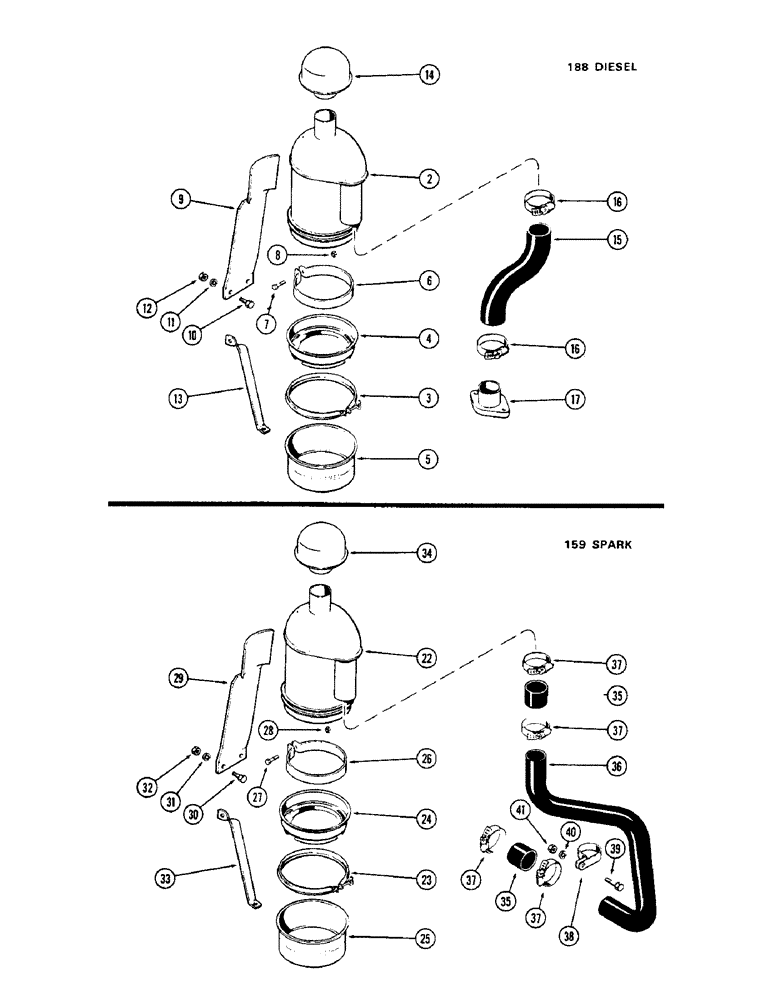

Запчасти Case 580 (035A) - AIR CLEANER, (188) DIESEL ENGINE, (159) SPARK IGNITION (10) - ENGINE

A35586

CLEANER

AIR CLEANER ASSY., Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A8297

CLAMP

- oil cup

1шт.

4

R15280

CUP

- oil, inner

1шт.

5

R15279

CUP ASSY.

CUP - oil, outer

1шт.

6

A16898

BAND

- mounting, air cleaner

2шт.

7

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex.

2шт.

8

131-48

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. (Essna)

2шт.

9

A36613

BRACKET

- mounting, air cleaner

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

13

A37788

BRACE - air, Serial Range: cleaner-engine

1шт.

14

A21430

CAP

- air cleaner

1шт.

15

A35589

LARGE HOSE

HOSE - air, Serial Range: cleaner-manifold

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

2шт.

17

A37098

FLANGE

- hose to intake manifold

1шт.

A35585

AIR CLEANER

ASSY., spark ignition engine, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - air cleaner, spark ignition engine

1шт.

23

G45153

CLAMP

- oil cup, spark ignition engine

1шт.

24

G46324

CUP

- oil, inner, spark ignition engine

1шт.

25

G46325

CUP

- oil, outer, spark ignition engine

1шт.

26

G15614

BAND - mounting, air cleaner, spark ignition engine

2шт.

27

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex., spark ignition engine

2шт.

28

131-48

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex., spark ignition engine

2шт.

29

A36056

BRACKET - mounting, air cleaner, spark ignition engine

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Spark ignition engine Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

WASHER - , lock, spark ignition engine 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., spark ignition engine

2шт.

33

A35590

BRACE - air cleaner, spark ignition engine

1шт.

34

D22685

CAP

- air cleaner, spark ignition engine

1шт.

35

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2 - Air Cleaner Tube, Spark Ignition Engine

2шт.

36

A35588

TUBE

- air cleaner to carburetor, spark ignition engine

1шт.

37

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

spark ignition engine #36, 1.81/2.75 Type F Worm

4шт.

38

A35860

CLAMP - tube to engine, spark ignition engine

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

WASHER - , lock, spark ignition engine 3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., spark ignition engine

1шт.
