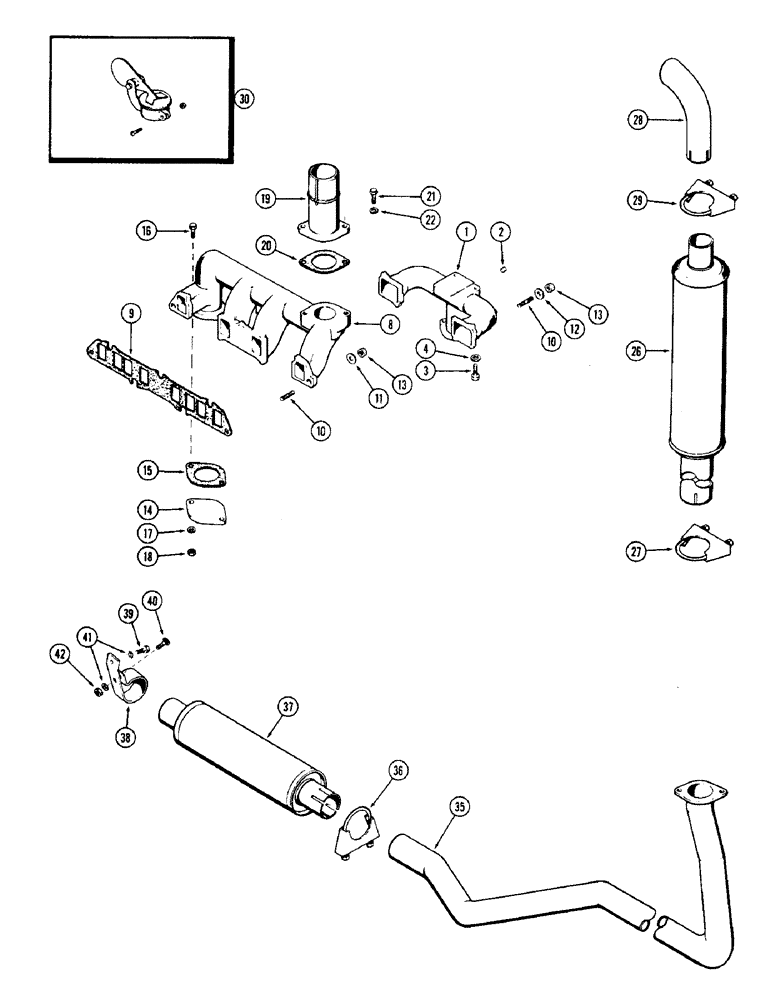

Запчасти Case 580 (034) - MANIFOLDS AND MUFFLER, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A37004

MANIFOLD

- intake

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" P.T. sq. hd. (Intake manifold)

1шт.

3

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

8

G2042

MANIFOLD

- exhaust

1шт.

9

A30030

GASKET

- intake & exhaust, Serial Range: manifold-head

1шт.

10

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

11

A30058

WASHER

- exhaust manifold (13/32 x 7/8 x 1/8")

4шт.

12

195-25

WASHER,3/8"

- intake manifold (13/32 x 13/16 x 1/16")

3шт.

13

131-903

NUT,3/8"-16

NUT - brass, 3/8" N.C. hex.

7шт.

14

A38188

PLATE

COVER - exhaust opening

15шт.

15

G46853

MANIFOLD GASKET

- exhaust cover

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

17

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

2шт.

18

131-903

NUT,3/8"-16

NUT - brass, 3/8" N.C. hex.

2шт.

19

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

20

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(w/power shuttle) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

26

A39022

MUFFLER

- upright (Replaces G45239)

1шт.

27

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

28

A39023

PIPE

- extension, vertical exhaust (Replaces A38182) (1st used trac. ser. no. 8321776)

1шт.

29

R11500

CLAMP

- pipe to muffler (Replaces G13184 & A39019) (1st used trac. ser. no. 8321776)

1шт.

30

G45048

CAP

- weather, vertical muffler (Used prior to trac. ser. no. 8321776)

1шт.

35

A36908

PIPE, EXHAUST SYSTEM

PIPE - horizontal muffler

1шт.

36

A27077

CLAMP

-, Serial Range: muffler-pipe

1шт.

37

G45287

MUFFLER

- horizontal

1шт.

38

A36909

BRACKET

- rear, horizontal muffler

1шт.

39

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

40

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

41

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
