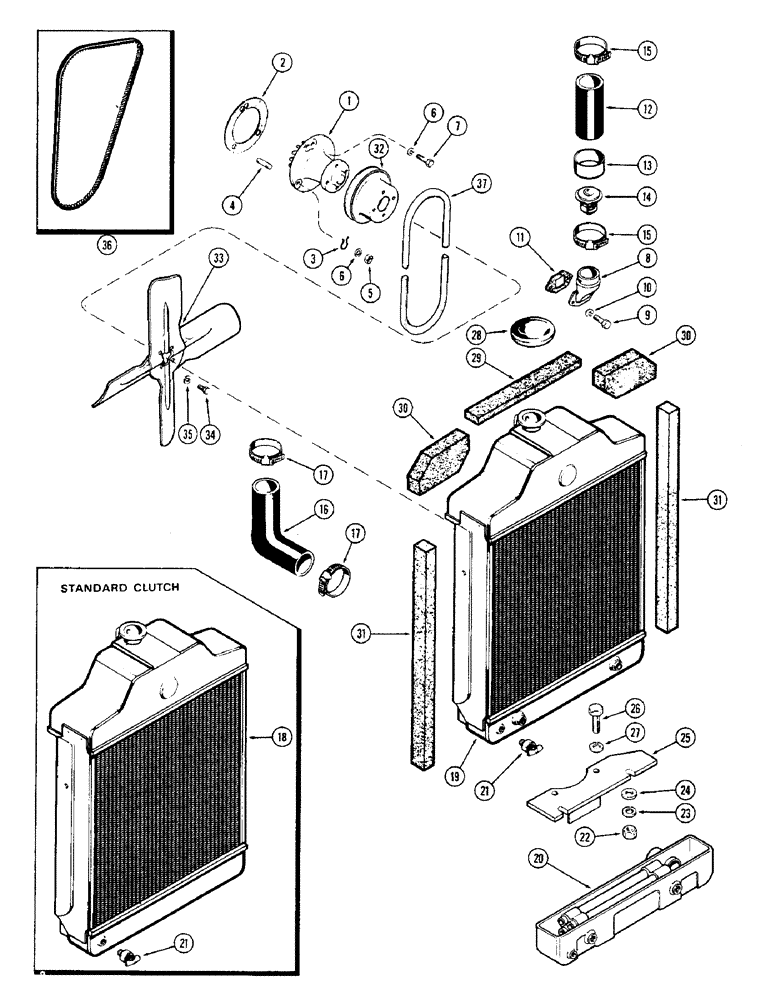

Запчасти Case 580 (032) - ENGINE COOLING SYSTEM, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A39074

PUMP

ASSY. - water (1st used eng. ser. no. 2684784) (Replaces A37758), Includes: Ref. 2 and 3

1шт.

A39074 water pump assy - This part is no longer available. Order A146584 water pump assy. (3 1/8" O.D. impeller).

1шт.

1

G11956

WATER PUMP

PUMP ASSY. - water (Used prior to eng. ser. no. 2684784), Includes: Ref. 2 and 3

1шт.

G11956 water pump assy - Now subs to A148401 water pump assy. (2 3/4" O.D. impeller).

1шт.

2

A38083

GASKET

- pump to cover (Replaces G46875)

1шт.

3

A30067

RING

- retainer

1шт.

4

A29433

STUD

- pump mounting (3/8" N.C. x 1")

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

6

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex. hd.

1шт.

8

G11965

ELBOW

- engine, Serial Range: outlet-radiator

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

11

A30003

GASKET

- elbow

1шт.

12

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

13

G49625

SUPPORT

SPACER - thermostat

1шт.

14

G11065

CASE

THERMOSTAT - (177 degrees to 182 degrees F)

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

upper #36, 1.81/2.75 Type F Worm

3шт.

16

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

B , Lower 1.75" ID x 5.13", SAE 20R4

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

lower #28, 1.31/2.25 Type F Worm

2шт.

18

A35604

RADIATOR

- (w/std. clutch)

1шт.

19

A35583

RADIATOR

ASSY. - (w/power shuttle), Includes: Ref. 20

1шт.

20

G45484

RESERVOIR

TANK - lower (Power shuttle oil cooler)

1шт.

21

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

22

25-106

NUT,3/8"-16, G5

- radiator stud, 3/8" N.C. hex.

2шт.

23

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

24

95-6

WASHER,3/8"

- (5/32 x 5/16 x 1/32")

2шт.

25

A35574

BRACKET

- radiator mounting

1шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

G45179

CAP

- radiator

1шт.

29

G46280

BAFFLE

- top center (Use adhesive 345-22)

1шт.

30

G46278

BAFFLE

- top side (Use adhesive 345-22)

2шт.

31

D31270

INSULATOR

BAFFLE - side (Use adhesive 345-22)

2шт.

32

G11339

PULLEY

- fan & pump drive

1шт.

33

G45243

FAN

- cooling

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

WASHER - lock, , #6 lock 5/16"

4шт.

36

A38824

BELT

Fan and Alternator Drive, First Used Engine Serial No. 2684784

1шт.

37

G46238

BELT,0.55" W x 17.78" L

Fan and Generator Drive, Used Prior to Engine Serial No. 2684784 0.55" W x 17.78" L

1шт.
