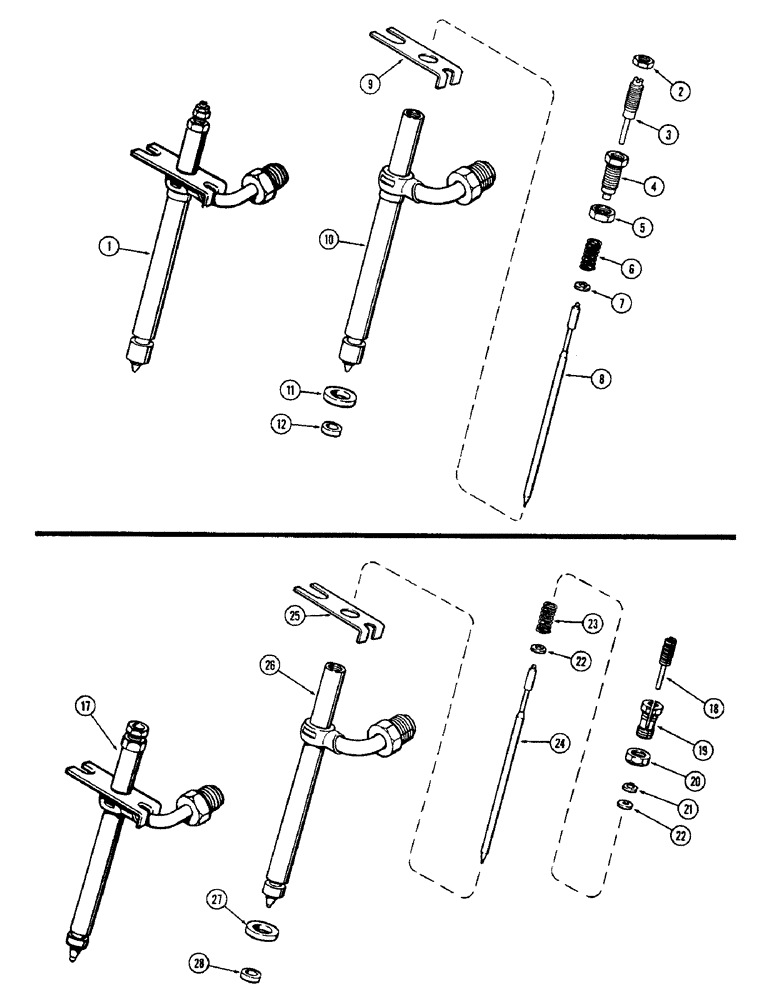

Запчасти Case 580 (031A) - FUEL INJECTION NOZZLES (10) - ENGINE

1

A51234

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's no. 19993 stamped on body) (See note) (Replaces A37836), Includes: Ref. 2 - 12

4шт.

A140829R

REMAN-INJECT NOZZLE

580 BSN 8685800, Reman For New P/N A51234

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43602

NUT

LOCKNUT - lift screw lock

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

LOCKNUT - pressure adj. screw

1шт.

6

A43733

SPRING

- adj., nozzle pressure

1шт.

7

A44369

SEAT

- spring

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A51234)

1шт.

9

A43506

PLATE ASSY.

PLATE - nozzle locating

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A51234)

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

17

A37836

NOZZLE

ASSY. - fuel injector (See note) (Supplier's #18054 stamped on body) (Order A51234), Includes: Ref. 2 - 12

4шт.

A140829R

REMAN-INJECT NOZZLE

580 BSN 8685800, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

20

A42424

LOCK NUT

- lock

1шт.

21

A41407

WASHER

- ball type

1шт.

22

A41401

SEAT

- pressure spring

2шт.

23

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

25

A41405

PLATE

- locating, nozzle

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
