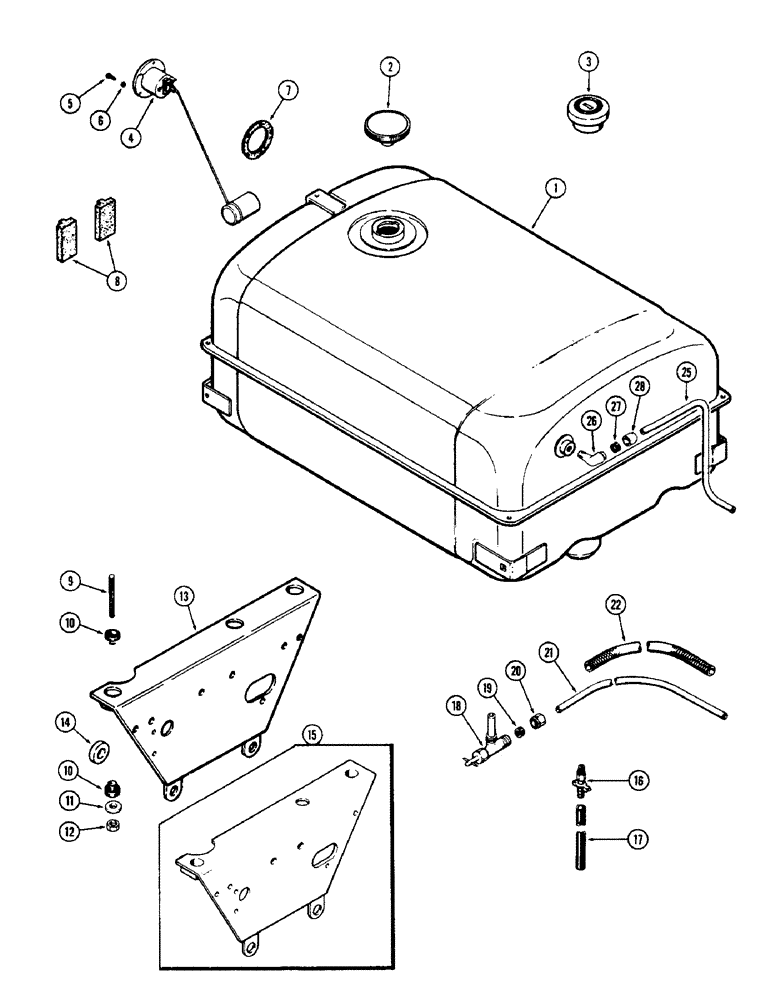

Запчасти Case 580 (024) - FUEL TANK, (188) DIESEL ENGINE (10) - ENGINE

1

A37306

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank, w/lock (Keys included)

1шт.

4

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

-, Serial Range: sender-tank

1шт.

8

A37315

PAD

- rear, tank support

2шт.

9

A37310

STUD

- 3/8" N.C. x 3-1/4", tank mtg.

4шт.

10

A37311

BUSHING

- mounting (Rubber)

8шт.

11

F62051

WASHER

- stud nut, 13/32" I.D. x 1-1/2" O.D.

4шт.

12

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. lock (Gripco)

4шт.

13

A51792

SUPPORT

- front, fuel tank (Replaces A38951 & A37312)

1шт.

14

A51801

BUSHING

SPACER - support to torque tube (Used w/A51792 only)

2шт.

15

A38951

SUPPORT

- front, fuel tank (Order A51792)

1шт.

16

217-107

VALVE

- water trap drain

1шт.

17

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

18

A7313

VALVE

ASSY. - needle, fuel line, Inlcudes: Ref. 19 and 20

1шт.

19

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

20

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

21

A35630

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

22

A27241

LOOM

- fuel line

1шт.

25

A37899

TUBE

- fuel tank leak-off, 1/4" tube (1st used eng. ser. no. 2627377)

1шт.

26

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off line to fuel tank (w/A37899), Inlcudes: Ref. 27 and 28

1шт.

27

222-104

SLEEVE,3/8" Tube

- for 1/4" tube

1шт.

28

222-114

NUT,5/8"-24

NUT - for 1/4" tube

1шт.

25

A35631

TUBE

- fuel tank leak-off, 5/16" tube (Used prior to eng. ser. no. 2627377)

1шт.

26

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off line to fuel tank (w/A35631)

1шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.
