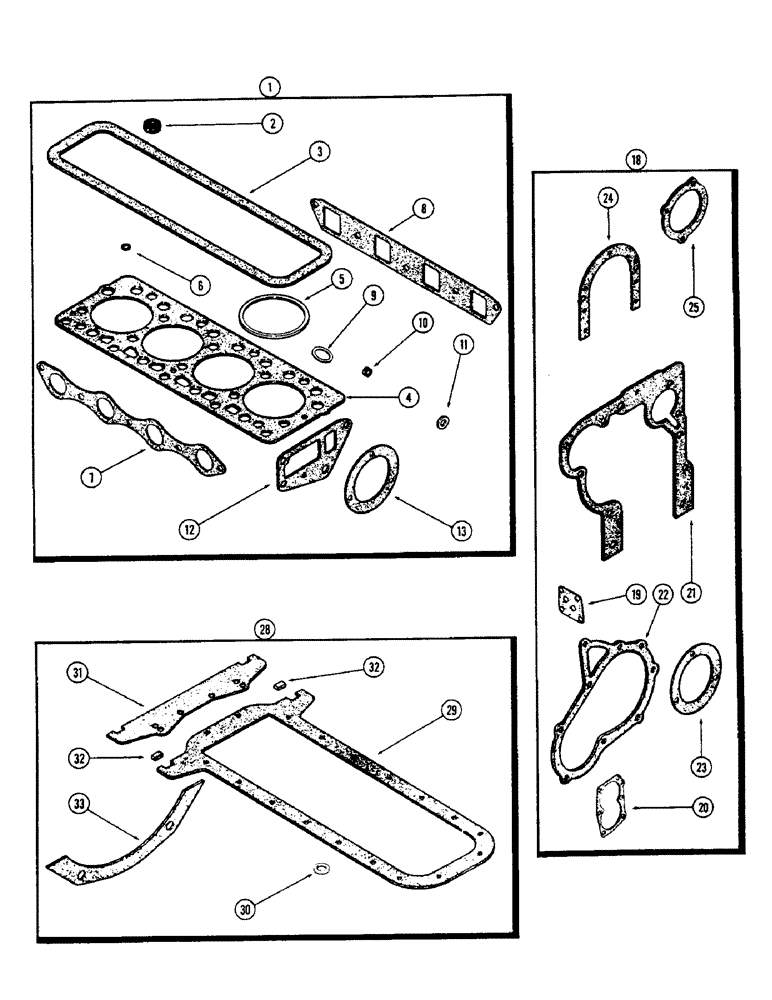

Запчасти Case 580 (021C) - ENGINE GASKET KITS, (188) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2639536 (10) - ENGINE

1

A40707

GASKET KIT

- valve grind (See note) (Order A41425), Inlcudes: Ref. 2 - 13

1шт.

2

G46867

GROMMET

- valve cover (Rubber)

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

A36877

GASKET

- cylinder head

1шт.

5

A36900

RING, PISTON

RING - fire, cyl. head gasket

4шт.

6

G46851

SEAL

- valve stem (Rubber)

8шт.

7

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

8

G46871

GASKET

- manifold, intake

1шт.

9

G49068

GASKET

- fuel injector seat

4шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line (For ) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover (Upper) (Replaces G46858)

1шт.

13

A38083

GASKET

- water pump (Replaces G46875)

1шт.

18

G11950

GASKET

KIT - cylinder block (See note), Inlcudes: Ref. 19 - 25

1шт.

19

G46854

GASKET

- oil filter mounting bracket

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover (Lower) (Replaces G46857)

1шт.

22

G46859

GASKET

- timing gear cover (Front)

1шт.

23

G46875

GASKET

- water pump

1шт.

24

G46802

GASKET

- rear oil seal retainer (Order A38196)

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A40713

KIT

GASKET KIT - oil pan (See note) (Used w/stamped pan), Inlcudes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

30

A27927

OIL PAN GASKET SET

- drain plug (Copper)

1шт.

31

A36653

GASKET

- pivot bracket (Not applicable)

1шт.

32

A11604

OIL PAN GASKET SET

- oil pan & pivot bracket (Not applicable)

2шт.

33

G46913

GASKET

- block to torque tube (Not applicable)

1шт.
