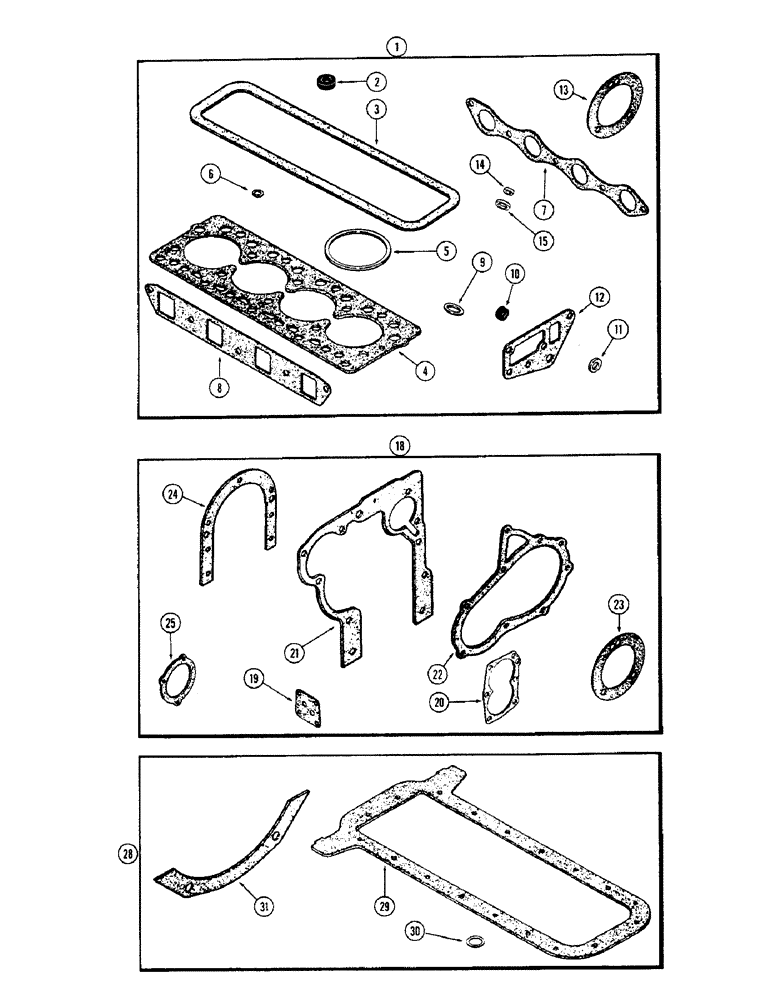

Запчасти Case 580 (020) - ENGINE GASKET KITS, (188) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2656844 (10) - ENGINE

1

A42001

GASKET

KIT - valve grind (See note), Inlcudes: Ref. 2 - 15

1шт.

A42001 gasket kit - This part no longer available. Order A43193 gasket kit (now subs to A189543 gasket kit.

1шт.

2

G46867

GROMMET

- valve cover (Rubber)

2шт.

3

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

4

13490891C1

- cylinder head

1шт.

A38640 gasket - This part subs to 1349089c1 gasket (which includes rings).

1шт.

5

A38639

RING

- fire, cyl. head gasket

4шт.

6

G46851

SEAL

- valve stem (Rubber)

8шт.

7

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

8

G46871

GASKET

- manifold, intake

1шт.

9

G49068

GASKET

- fuel injector seat (Not used w/pencil inj.)

4шт.

10

222-101

SLEEVE,3/16" Tube

- (For ) (Not used w/pencil inj.) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

(Not used w/pencil inj.) 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover (Upper)

1шт.

13

A38083

GASKET

- water pump

1шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (Used w/pencil inj.)

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- inj. nozzle (Used w/pencil inj.)

4шт.

18

A41426

KIT

GASKET KIT - cylinder block (See note), Inlcudes: Ref. 19 - 25

1шт.

19

G46854

GASKET

- oil filter mounting bracket

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover (Lower)

1шт.

22

G46859

GASKET

- timing gear cover (Front)

1шт.

23

A38083

GASKET

- water pump

1шт.

24

A38196

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A41450

KIT

GASKET KIT - oil pan (See note) (Used w/cast iron pan), Inlcudes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

30

A58608

GASKET

- drain plug (Nylon)

1шт.

31

G46913

GASKET

- block to torque tube

1шт.
