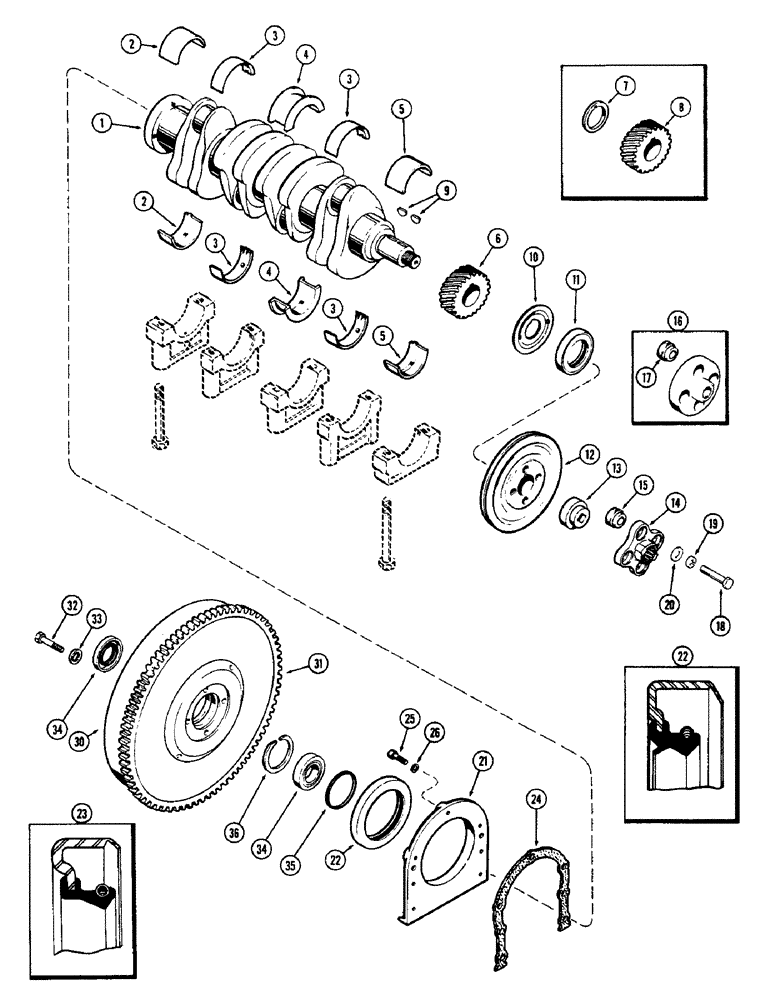

Запчасти Case 580 (014) - CRANKSHAFT & FLYWHEEL, (188) DIESEL ENGINE, MECHANICAL SHUTTLE (10) - ENGINE

1

A39146

CRANKSHAFT

- (Replaces A37211)

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER - main brg., rear (Std.) (Set of 2)

1шт.

2

A36496

LINING

LINER - main brg., rear (.002" undersize) (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - main brg., rear (.010" undersize) (Set of 2)

1шт.

2

A36498

KIT

LINER - main brg., rear (.020" undersize) (Set of 2)

1шт.

2

A36499

BEARING LINER

LINER - main brg., rear (.030" undersize) (Set of 2)

1шт.

3

A36485

LINING

LINER - main brg., intermediate (Std.) (Set of 2)

2шт.

3

A36486

LINING

LINER - main brg., intermediate (.002" undersize) (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER - main brg., intermediate (.010" undersize) (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER - main brg., intermediate (.020" undersize) (Set of 2)

2шт.

3

A36489

LINING

LINER - main brg., intermediate (.030" undersize) (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER - main brg., center (Std.) (Set of 2)

1шт.

4

A36491

LINING

LINER - main brg., center (.002" undersize) (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main brg., center (.010" undersize) (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - main brg., center (.020" undersize) (Set of 2)

1шт.

4

A36494

LINING

LINER - main brg., center (.030" undersize) (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER - main brg., front (Std.) (Set of 2)

1шт.

5

A36481

LINING

LINER - main brg., front (.002" undersize) (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - main brg., front (.010" undersize) (Set of 2)

1шт.

5

A36483

LINING

LINER - main brg., front (.020" undersize) (Set of 2)

1шт.

5

A36484

LINING

LINER - main brg., front (.030" undersize) (Set of 2)

1шт.

6

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide) (Replaces A29294 spacer & A29263 gear)

1шт.

7

A29294

BUSHING

SPACER - thrust, crankshaft (Use w/A29263 gear only)

1шт.

8

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide) (Order A39288)

1шт.

9

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

10

A29259

SLINGER

- oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

12

A50962

PULLEY

- fan drive (Replaces G11342 & A39931)

1шт.

13

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

14

A51885

COUPLING, BREAK AWAY

COUPLING - pump drive flexible (Replaces A35558), Inlcudes: Ref. 15

1шт.

15

A45216

BUSHING

- coupling

4шт.

16

D140524

FLEXIBLE COUPLING,13T

COUPLING - pump drive flexible (Order A51885)

1шт.

17

G36905

BLOCK

BUSHING - coupling

4шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 16 ga.

4шт.

21

A38390

RETAINER

- oil seal, rear (Replaces A38310 & G2017)

1шт.

22

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A39027)

1шт.

23

A39027

OIL SEAL

- oil, rear (Replaces A36610) (Order A51339)

1шт.

24

A39188

GASKET

- retainer (Replaces A38196 & G46802)

1шт.

25

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- 1/4 x 3/4" N.C. hex.

4шт.

25

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- 1/4 x 1" N.C. hex.

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

30

A144358

FLYWHEEL

ASSY.

1шт.

31

G11710

GEAR

- ring (135 teeth)

1шт.

32

A37216

BOLT

- 7/16 x 2" N.F. hex., drilled

4шт.

33

A138295

OIL SEAL

- oil, flywheel (1-3/16 x 2-5/32 x 1/4") (Replaces A37647)

1шт.

A138295 oil seal - In illustration this is actually the part between ref 30 flywheel assy and the washer (which is incorrectly labeled as ref 33). PICTURED AS 34

1шт.

34

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel

1шт.

35

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel (2-15/64 x 2-11/32 x 3/32")

1шт.

36

49482

SNAP RING,2.125", Int, #212

RING - Snap, , brg 2.125", Int, #212

1шт.
