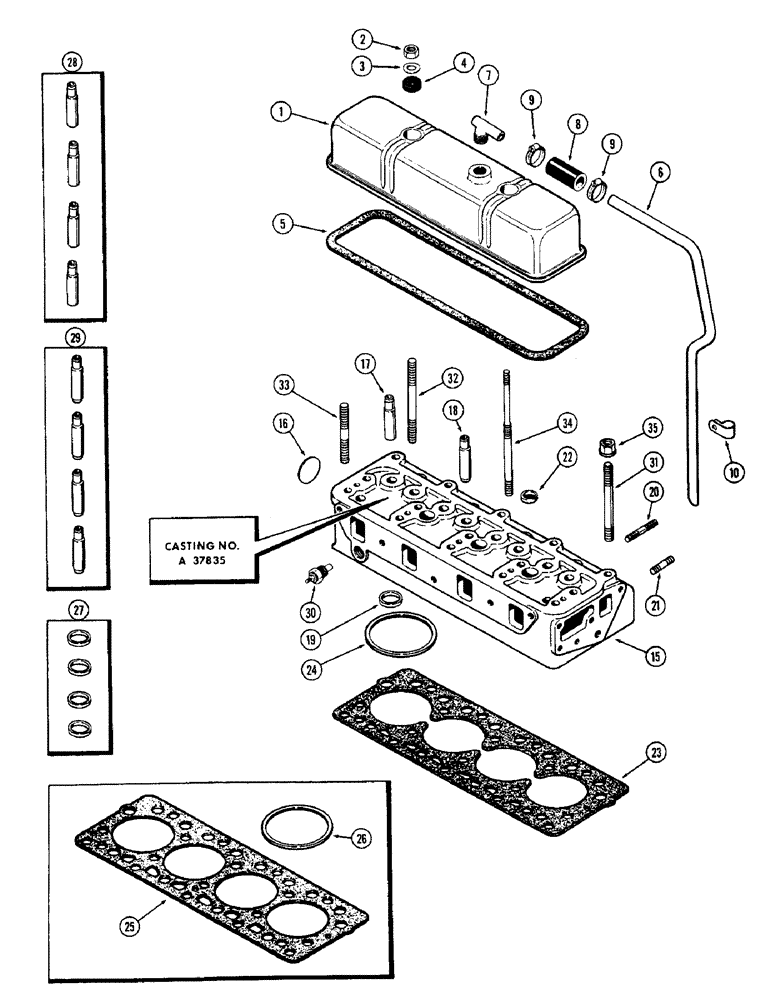

Запчасти Case 580 (010) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ASSEMBLY, 1ST USED ENG. SER. NO. 2627377 (10) - ENGINE

1

A36815

COVER

- valve & head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- cover nut

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46866)

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather tube

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

10

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

-, Serial Range: tube-engine

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting no. A37835), Inlcudes: Ref. 16 - 22

1шт.

16

A30036

PLUG

- rear, 1-3/4" expansion

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 28)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

20

A39129

STUD

- manifold clamp, 3/8" N.C. x 2-1/16"

6шт.

21

A29431

STUD

- manifold, 3/8" N.C. x 1-3/4"

4шт.

22

41-1016

PLUG,Cup, 1"

- cyl. head top, (1" cup type)

3шт.

23

A38640

- cylinder head (1st used eng. se. no. 2656844)

1шт.

24

A38639

RING

- fire, cyl. head gasket (Std. w/orange mark) (4-19/64" I.D. x 4-35/64" O.D. x .070") (1st used eng. ser. no. 2656844)

4шт.

24

A38651

RING

- fire, cyl. head gasket (Oversize w/black mark) (4-19/64" I.D. x 4-35/64" O.D. x .075") (1st used eng. ser. no. 2656844)

4шт.

25

A36877

GASKET

- cylinder head (Used prior to eng. ser. no. 2656844)

1шт.

26

A36900

RING, PISTON

RING - fire, cyl. head gasket (4-3/16" I.D. x 4-7/16" O.D. x .070") (Std w/orange mark) (Used prior to eng. ser. no. 2656844)

4шт.

26

A37031

RING

- fire, cyl. head gasket (4-3/16" I.D. x 4-7/16" O.D. x .075") (Oversize, black) (Used prior to eng. ser. no. 2656844)

1шт.

27

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

28

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

29

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

30

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

31

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

32

A36905

STUD

- head to block, 1/2" N.C. x 6-1/8"

2шт.

33

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

34

A36903

STUD

-, Serial Range: head-cover

2шт.

35

A37030

FLANGE NUT

- flanged, head stud, 1/2" N.C.

19шт.
