(008) - CYLINDER BLOCK ASSY., (188) DIESEL ENG, 1ST USED ENG. SER. NO. 2679761 USED W/CAST PAN W/TACH. DRIVE

Запчасти Case 580 (008) - CYLINDER BLOCK ASSY., (188) DIESEL ENG, 1ST USED ENG. SER. NO. 2679761 USED W/CAST PAN W/TACH. DRIVE (10) - ENGINE

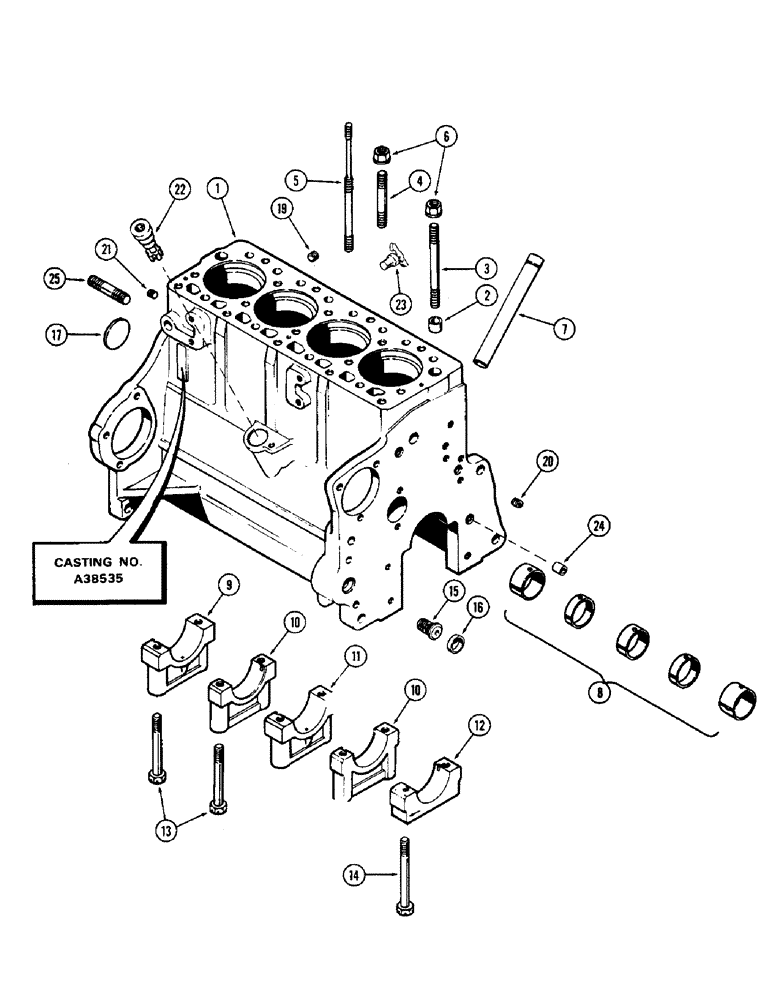

Схема запчастей Case 580 - (008) - CYLINDER BLOCK ASSY., (188) DIESEL ENG, 1ST USED ENG. SER. NO. 2679761 USED W/CAST PAN W/TACH. DRIVE (10) - ENGINE
22
1
25
16
21
8
24
17
11
15
20
10
12
23
3
10
9
2
6
5
14
19
13
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A42814

CYLINDER BLOCK

BLOCK ASSY. - cyl. short (Casting no. A38535) (Incl. crankshaft & brgs., conn. rod & brgs., camshaft, piston assy., oil pump & timing gears), Inlcudes: Ref. 1 - 25

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - cyl. stripped (Casting no. A38535), Inlcudes: Ref. 2 - 21

1шт.

2

G49608

RING

- dowel, cyl., Serial Range: head-block

2шт.

3

A36902

STUD

- cyl. head, 1/2" N.C. x 5-5/8"

11шт.

4

A36904

STUD

- cyl. head, 1/2" N.C. x 6"

2шт.

5

A36903

STUD

- cyl. head & cover

2шт.

6

A37030

FLANGE NUT

- cyl. head studs, 1/2" N.C. flanged

19шт.

7

A37149

TUBE

- oil gauge & filler

1шт.

8

A42746

CAM

BUSHING SET - camshaft

1шт.

9

A51057

CAP

- main bearing, rear (Replaces A38385)

1шт.

10

A51055

CAP

- main bearing, intermediate (Replaces G2128)

2шт.

11

A51056

CAP

- main bearing, center (Replaces G2127)

1шт.

12

A51054

CAP

- main bearing, front (Replaces G2126)

1шт.

13

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- brg. caps, 1/2 x 4-1/2" N.C. sltd. hex.

8шт.

14

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- brg. cap & oil pump, 1/2 x 5-1/8" N.C. sltd. hex.

2шт.

15

A153552

ADAPTER

- oil filter

1шт.

16

41-1016

PLUG,Cup, 1"

- adapter hole, 1" cup

1шт.

17

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" exp.

1шт.

19

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - cyl. block, 3/8" P.T. sckt. bd.

1шт.

20

G49070

PLUG

- front oil gallery, 1/4" P.T. drilled

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

1шт.

22

A38942

DRIVE ASSY.

- tachometer

1шт.

23

A23656

COCK, DRAIN

VALVE ASSY. - drain, cyl. block

1шт.

24

A29442

RING

- dowel, timing gear, Serial Range: cover-block

2шт.

25

A29333

STUD

- engine to torque tube, 5/8" N.C./N.F. x 3" (Used w/torque tube A38359)

1шт.

25

A51793

STUD

- engine to torque tube, 5/8" N.C./N.F. x 3-3/16" (Used w/torque tube A51791)

2шт.
