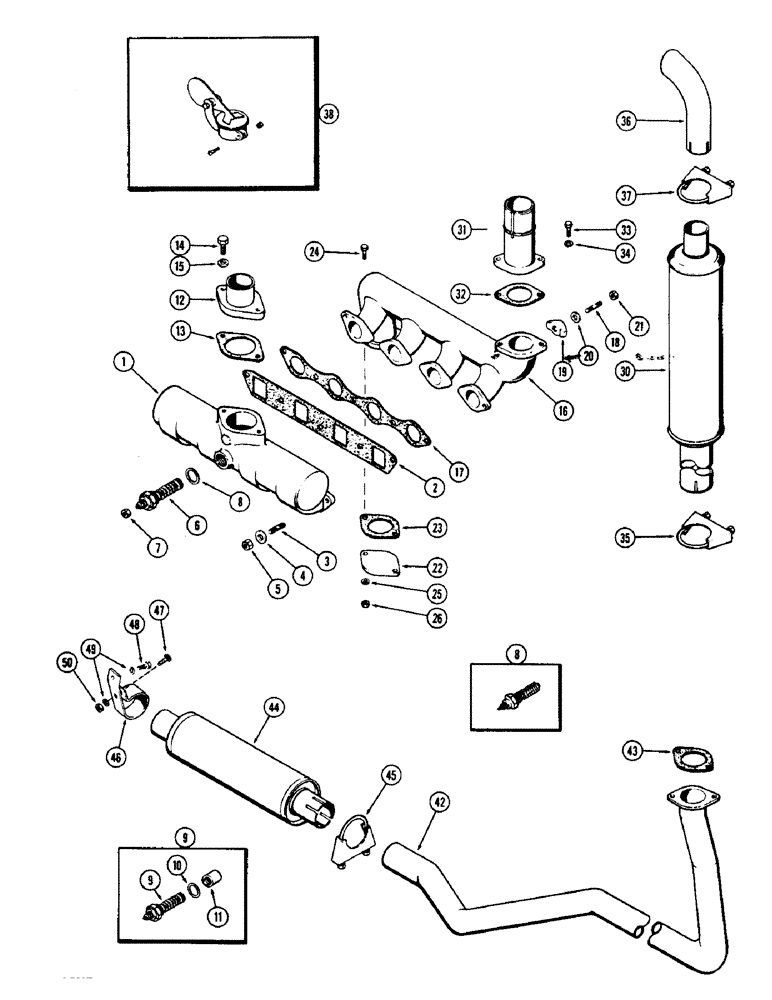

Запчасти Case 580 (006) - MANIFOLDS & MUFFLER, (188) DIESEL ENGINE (10) - ENGINE

1

A35782

MANIFOLD

- intake

1шт.

2

G46871

GASKET

- intake manifold

1шт.

3

A29431

STUD

- intake manifold to head, 3/8" N.C. x 1-3/4"

4шт.

4

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

5

25-106

NUT,3/8"-16, G5

- intake manifold stud, 3/8" N.C. hex.

4шт.

6

A37775

HEATER

ASSY. - intake manifold (Replaces A21821), Inlcudes: Ref. 7

1шт.

7

129-503

NUT,1/4"-20, Brass

1шт.

8

A21821

HEATER ASSY. - intake manifold (Order A43087 kit)

1шт.

A43087

KIT

- heater (Repair replacement for A21821), Inlcudes: Ref. 9 - 11

1шт.

9

A37775

HEATER

ASSY. - manifold

1шт.

10

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

11

A43088

ADAPTER

ADAPTOR - manifold heater

1шт.

12

A37098

FLANGE

- intake manifold (For air cleaner hose)

1шт.

13

D26670

GASKET -, Serial Range: flange-manifold

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

17

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

18

A39129

STUD

- exhaust manifold clamp, 3/8" N.C. x 2-1/16"

6шт.

19

A35028

CLAMP

- exhaust manifold

6шт.

20

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

6шт.

21

131-903

NUT,3/8"-16

NUT - exhaust manifold stud. 3/8" N.C. Seez-Pruf

6шт.

22

A38188

PLATE

COVER - exhaust opening (Replaces G2044)

1шт.

23

G46853

MANIFOLD GASKET

- exhaust opening cover

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

25

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

26

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. brass

2шт.

30

A39022

MUFFLER

- vertical (Replaces G45239)

1шт.

31

G2095

FITTING

OUTLET - exhaust manifold vertical muffler

1шт.

32

G46853

MANIFOLD GASKET

- exhaust manifold outlet

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

35

A13240

CLAMP,2-5/8" ID

ASSY. -, Serial Range: muffler-outlet

1шт.

36

A39023

PIPE

- vertical exhaust extension (Replaces A38182) (1st used trac. ser. no. 8321776)

1шт.

37

R11500

CLAMP

- extension pipe to muffler (Replaces G13184 & A39019) (1st used trac. ser. no. 8321776)

1шт.

38

G45048

CAP

- weather (w/vertical muffler) (Used prior to trac. ser. no. 8321776)

1шт.

42

A36908

PIPE, EXHAUST SYSTEM

PIPE - horizontal muffler

1шт.

43

G46853

MANIFOLD GASKET

- pipe to exhaust manifold

1шт.

44

G45287

MUFFLER

- horizontal

1шт.

45

A27077

CLAMP

-, Serial Range: muffler-pipe

1шт.

46

A36909

BRACKET

- rear, horizontal muffler

1шт.

47

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

48

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

49

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

50

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
