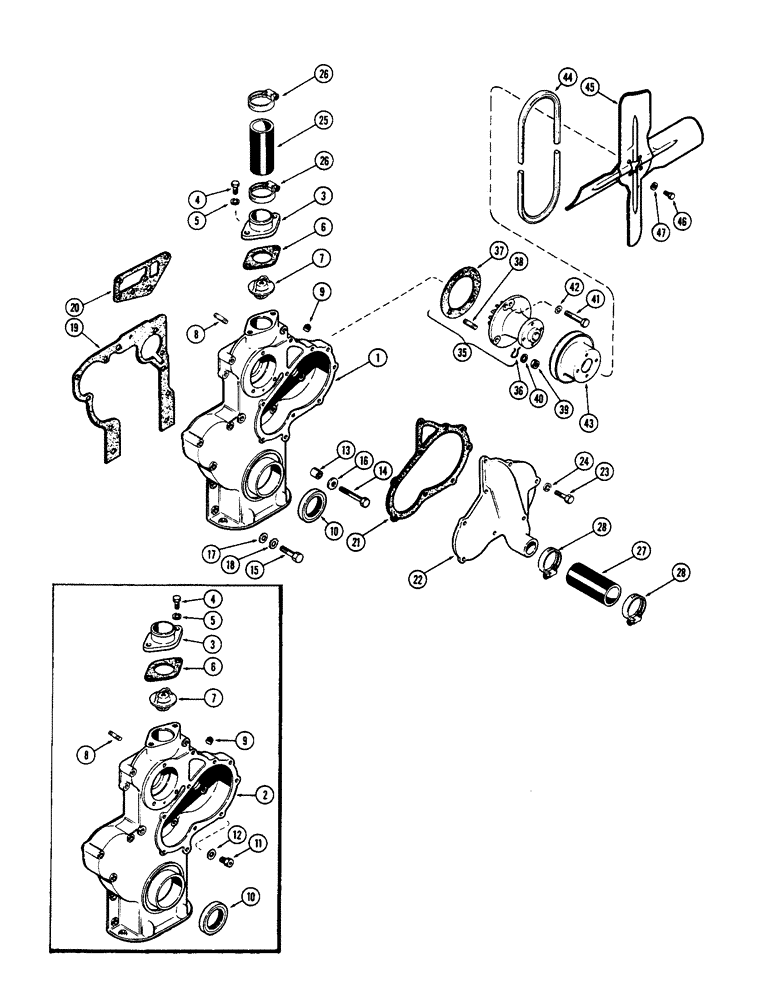

Запчасти Case 580 (005I) - TIMING GEAR COVER, (188) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2679761 1 PIECE COVER (10) - ENGINE

1

A38088

COVER ASSY. - timing gear (Used eng. ser. nos. 2631491 to 2679761), Inlcudes: Ref. 3 - 10

1шт.

2

A36823

COVER

ASSY. - timing gear (Used prior to eng. ser. no. 2631491), Inlcudes: Ref. 3 - 10

1шт.

3

G2144

FITTING

CONNECTION - water outlet

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

6

G46907

GASKET

-, Serial Range: connection-cover

1шт.

7

A57641

THERMOSTAT

- (Replaces G45788)

1шт.

8

G11204

STUD

- injection pump, 3/8" N.C. x 1-7/16"

3шт.

9

221-1843

PLUG

- 3/8" P.T. sckt. hd.

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, 2-3/32 x 3 x 1/2" (Replaces A36609)

1шт.

11

G49083

BOLT

- 1/2 x 3/4" N.C. hex., drilled (Used w/A36823 cover)

1шт.

12

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used w/G49083 bolt) Int Tooth, 1/2"

1шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

14

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

16

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

5шт.

17

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

12шт.

18

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

19

A38228

GASKET

- cover to block (Replaces G46857)

1шт.

20

A38084

GASKET,1.27mm Thk

- cover to head (Replaces G46858)

1шт.

21

G46859

GASKET

- gear cover

1шт.

22

G2077

COVER ASSY

COVER - drive opening

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

24

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

9шт.

25

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

27

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A39074

PUMP

WATER PUMP ASSY. - (Replaces A37758), fan, Inlcudes: Ref. 36 and 37

1шт.

36

A30067

RING

- retainer, water pump and fan

1шт.

37

A38083

GASKET

- pump to cover (Replaces G46875), water and fan

1шт.

38

A29433

STUD

- pump intg., 3/8" N.C. x 1" (3 used some models), water and fan

2шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., water pump and fan

2шт.

40

92-6

LOCK WASHER,3/8"

WASHER - lock, , water pump and fan 3/8"

2шт.

41

A38085

BOLT

- 3/8 x 2-7/8" N.C. hex., water pump and fan

1шт.

42

A22317

WASHER

- 25/64 x 9/16 x 3/64" copper, water pump and fan

1шт.

43

G11339

PULLEY

- fan & generator, water pump

1шт.

44

G46238

BELT,0.55" W x 17.78" L

Fan amd Generator Drive, Water Pump 0.55" W x 17.78" L

1шт.

45

G45243

FAN

- radiator, water pump and fan

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Water pump and fan Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

47

92-5

LOCK WASHER,5/16"

WASHER - lock, , water pump and fan 5/16"

4шт.
