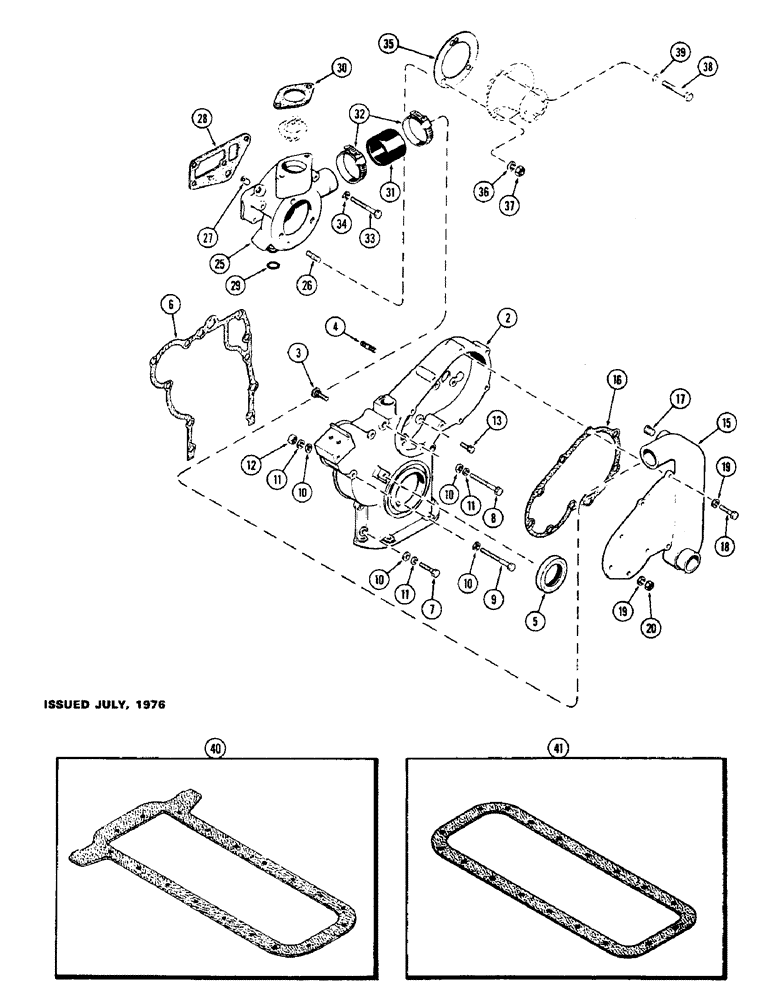

Запчасти Case 580 (005G) - TIMING GEAR COVER, (188) DIESEL ENGINE, CONVERSION KIT, TO COVERT 1 PIECE COVER TO 2 PIECE COVER (10) - ENGINE

A51890

DUST VALVE

KIT - timing gear cover conversion, Inlcudes: Ref. 2 - 41

1шт.

2

A51734

COVER

ASSY. - timing gear, Inlcudes: Ref. 3 - 5

1шт.

3

A51649

STUD

- timing gear cover

2шт.

4

G11204

STUD

- injection pump, 3/8" N.C. x 1-7/16"

3шт.

5

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

1шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

A51765

CLIP

COVER - injection pump drive gear

1шт.

16

A39925

GASKET

- cover

1шт.

17

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8 x 3/8" hex. sckt. hd. nylock set

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

7шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

7шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

25

A51888

BODY

ASSY. - water pump, Inlcudes: Ref. 26 and 27

1шт.

26

A29433

STUD

- water pump

1шт.

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8 x 3/8" hex. sckt. hd. nylock set

1шт.

178-874

SCREW - 7/16 x 7/16" hex. sckt. hd. set

1шт.

221-841

PLUG

- 1/4" hex. sckt. hd. pipe

1шт.

27

222-843

PLUG - 3/8" hex. sckt. hd. pipe

1шт.

28

A38084

GASKET,1.27mm Thk

- pump body to cylinder head

1шт.

29

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

1шт.

30

G46907

GASKET

- water outlet to pump body

1шт.

31

A7249

HOSE

- pump, Serial Range: body-cover

1шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

35

A38083

GASKET

- water, Serial Range: pump-body

1шт.

36

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

38

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

39

A7085

WASHER

- 25/64 x 9/16 x 1/32" copper

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Used w/cast iron pan) (See Figure 020)

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Used w/steel pan) (Not used this application)

1шт.
