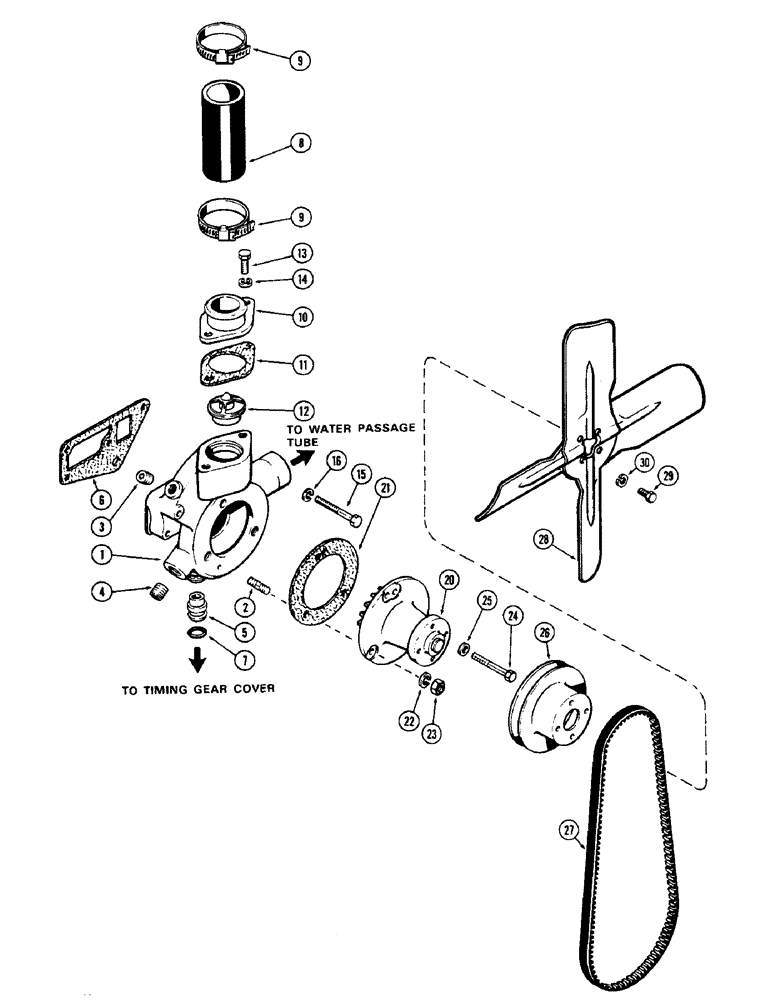

Запчасти Case 580 (005C) - WATER PUMP & FAN, (188) DIESEL ENGINE, 2 PIECE COVER (10) - ENGINE

1

A144054

BODY

ASSY. - water pump (Replaces A51735)

1шт.

2

A29433

STUD

- 3/8" N.C. x 1"

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" P.T. hex. sckt. hd.

1шт.

5

A142823

FITTING

- water pump body inlet

1шт.

6

A38084

GASKET,1.27mm Thk

- pump body to cylinder head

1шт.

7

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

1шт.

8

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

10

G2144

FITTING

OUTLET - thermostat housing & water

1шт.

11

G46907

GASKET

- water outlet to pump body

1шт.

12

A57641

THERMOSTAT

- 180 degrees

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

15

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- 3/8 x 1-7/8" N.C. hex.

1шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

20

A146584

PUMP, WATER

PUMP ASSY. - water

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

21

A38083

GASKET

-, Serial Range: pump-body

1шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

1шт.

25

A7085

WASHER

- 25/64 x 9/16 x 1/32" copper

1шт.

26

G11339

PULLEY

- fan

1шт.

27

A38824

BELT

Fan and Alternator Drive

1шт.

28

G45243

FAN

- radiator

1шт.

29

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

30

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.
