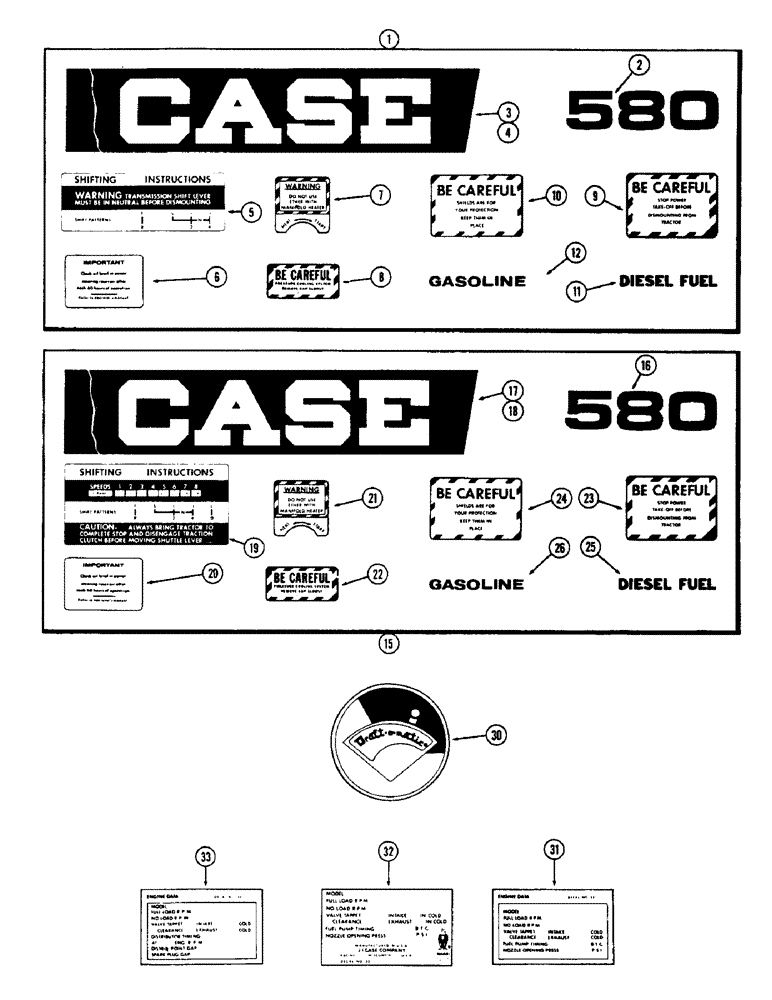

Запчасти Case 580 (172) - DECALS, USED PRIOR TO TRAC. SER. NO. 8656686 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

B17142

DECAL

KIT - (w/power shuttle), Includes: Ref. 2 - 12

1шт.

2

321-995

DECAL

580 - (Grille cap)

2шт.

3

321-996

DECAL

CASE - (R.H. hood side)

1шт.

4

321-997

DECAL

CASE - (L.H. hood side)

1шт.

5

321-946

DECAL

SHIFTING INSTRUCTIONS - 4 speed

1шт.

6

321-695

DECAL

IMPORTANT - (Power steering reservoir)

1шт.

7

321-422

DECAL

WARNING - (Starter switch) (Diesel only)

1шт.

8

321-122

DECAL

BE CAREFUL - (Radiator cap)

1шт.

9

321-605

DECAL

BE CAREFUL - (On R.H. fender)

1шт.

10

321-608

DECAL

BE CAREFUL - (On P.T.O. shield)

1шт.

11

321-230

DECAL

DIESEL FUEL - (Top of tank)

1шт.

12

321-18

DECAL

GASOLINE - (Top of tank)

1шт.

15

B17143

DECAL

KIT - (w/std. clutch), Includes: Ref. 16 - 26

1шт.

16

321-995

DECAL

580 - (Grille cap)

2шт.

17

321-996

DECAL

CASE - (R.H. hood side)

1шт.

18

321-997

DECAL

CASE - (L.H. hood side)

1шт.

19

321-1030

DECAL

SHIFTING INSTRUCTIONS - 8 speed

1шт.

20

321-695

DECAL

IMPORTANT - (Power steering reservoir)

1шт.

21

321-422

DECAL

WARNING - (Starter switch) (Diesel only)

1шт.

22

321-122

DECAL

BE CAREFUL - (Radiator cap)

1шт.

23

321-605

DECAL

BE CAREFUL - (On R.H. fender)

1шт.

24

321-608

DECAL

BE CAREFUL - (On P.T.O. shield)

1шт.

25

321-230

DECAL

DIESEL FUEL - (Top of tank)

1шт.

26

321-18

DECAL

GASOLINE - (Top of tank)

1шт.

30

321-767

DECAL

DRAFT-O-MATIC - (Instrument panel side) (No longer used)

2шт.

31

321-1371

ENGINE DATA - diesel (w/std. clutch) (Replaces 321-1109) (1st used eng. ser. no. 2627377)

1шт.

31

321-1374

DECAL

ENGINE DATA - diesel (w/power shuttle) (Replaces 321-1110) (1st used eng. ser. no. 2627377)

1шт.

32

321-883

ENGINE DATA - (Diesel) (w/std. clutch) (Used prior to eng. ser. no. 2627377)

1шт.

32

321-884

ENGINE DATA - (Diesel) (w/power shuttle) (Used prior to eng. ser. no. 2627377)

1шт.

33

321-1356

DECAL

ENGINE DATA - (Gas) (w/std. clutch) (Replaces 321-891)

1шт.

33

321-1358

DECAL

ENGINE DATA - (Gas) (w/power shuttle) (Replaces 321-892)

1шт.
