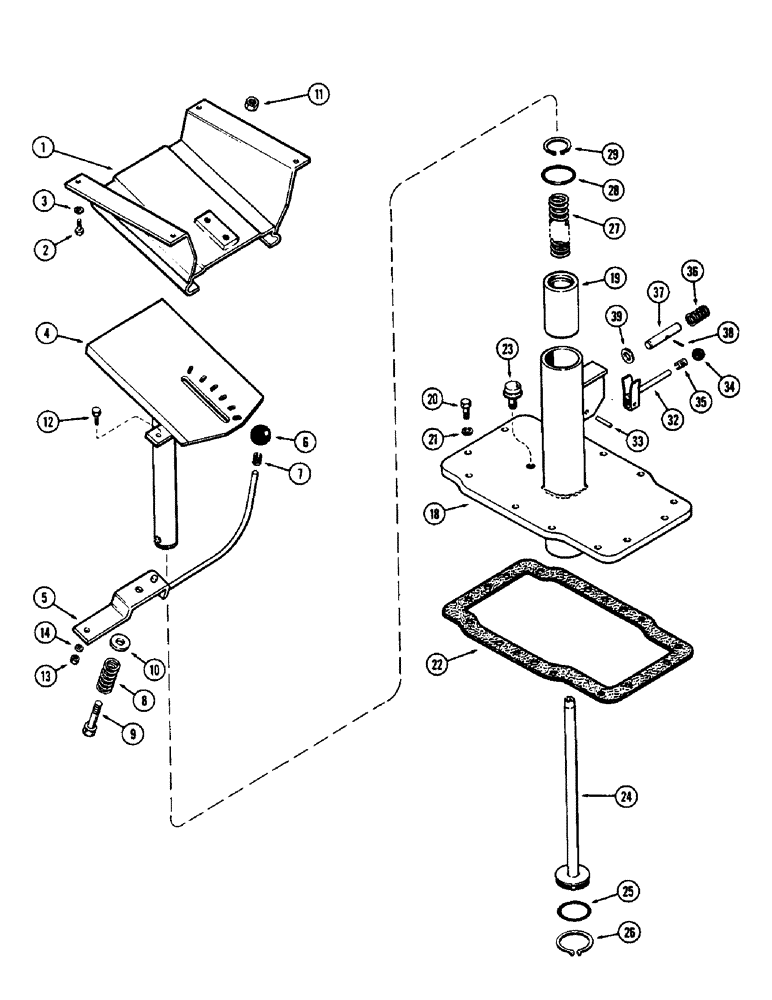

Запчасти Case 580 (169C) - SEAT SUSPENSION, USED WITH BACKHOE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D38265

CHANNEL

ASSY. - seat mounting

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Std. seat to channel Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

4шт.

4

D38249

SUPPORT - seat

1шт.

5

D38450

LEVER

- adjusting, seat

1шт.

6

D38644

KNOB

- adjusting lever

1шт.

7

D38662

RING

- tolerance

1шт.

8

D38446

SPRING

- tension adjusting lever

1шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- adj. lever spring (1/2 x 3" N.C. hex.)

1шт.

10

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

11

131-354

LOCK NUT,1/2"-13, GA

NUT - 1/2" N.C. hex. (Gripco)

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Adj. lever to support Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. (Gripco)

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

18

A37412

COVER ASSY. - rear, Includes: Ref. 19

1шт.

19

D38239

BUSHING

- seat support post

1шт.

20

113-228

X

BOLT - cover, 3/8 x 1-1/4" N.C. hex.

12шт.

21

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

12шт.

22

G10941

GASKET

-, Serial Range: cover-transmission

1шт.

23

A27173

BREATHER

- oil

1шт.

24

D38245

GUIDE

- lift spring

1шт.

25

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - guide base (2-1/4 x 2-1/2 x 1/8")

1шт.

26

70742

WASHER

RING - Snap, 2.50", Int, #250, guide base

1шт.

27

D38257

VALVE SPRING

SPRING - lift

1шт.

28

D38645

O-RING,1.859" ID x 2 1" OD

"O" RING - seat post sealing (1-7/8 x 2-1/8 x 1/8")

1шт.

29

D38248

SNAP RING,#187, Ext

RING - Snap, , inner seat post #187, Ext

1шт.

32

D38258

LOCK

HANDLE - lock, seat post

1шт.

33

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

34

D38643

KNOB

- lock handle

1шт.

35

D38673

RING

- tolerance

1шт.

36

D49602

SPRING

- tension, lock handle (6 coils) (Use late model tractors)

1шт.

36

D38446

SPRING

- tension, lock handle (7 coils) (Used early model tractors)

1шт.

37

D38261

PIN

- lock, seat post

1шт.

38

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

39

D49941

SPRING WASHER

- lock pin (Used w/D49602 spring) (17/32 x 15/16 x 12 ga.)

1шт.

39

F62210

WASHER

- lock pin (Used w/D38446 spring) (17/32 x 7/8 x 16 ga.)

1шт.
