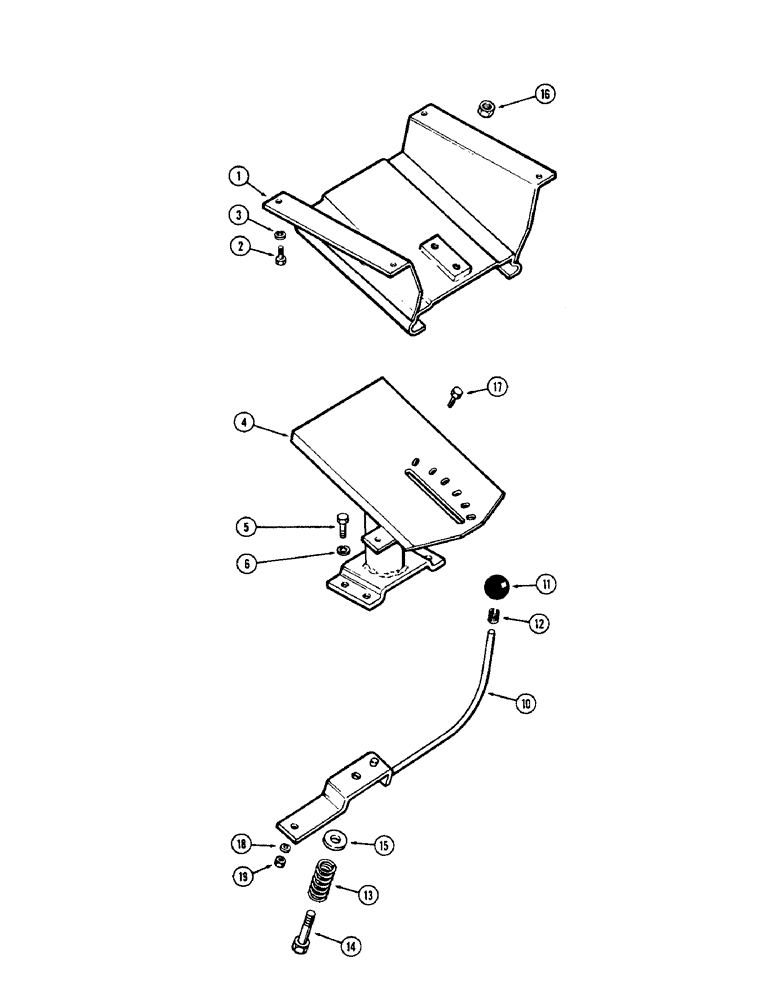

Запчасти Case 580 (169A) - SEAT SUSPENSION, USED WITHOUT BACKHOE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D38265

CHANNEL

ASSY. - seat mounting

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Std. seat to channel Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

4шт.

4

D39148

SUPPORT - seat

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

10

D38450

LEVER

- adjusting, seat

1шт.

11

D38644

KNOB

- adjusting lever

1шт.

12

D38662

RING

- tolerance

1шт.

13

D38446

SPRING

- tension, adjusting lever

1шт.

14

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- adj. lever spring, 1/2" x 3" N.C. hex.

1шт.

15

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

16

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. (Gripco)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever to support Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

19

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. (Gripco)

1шт.
