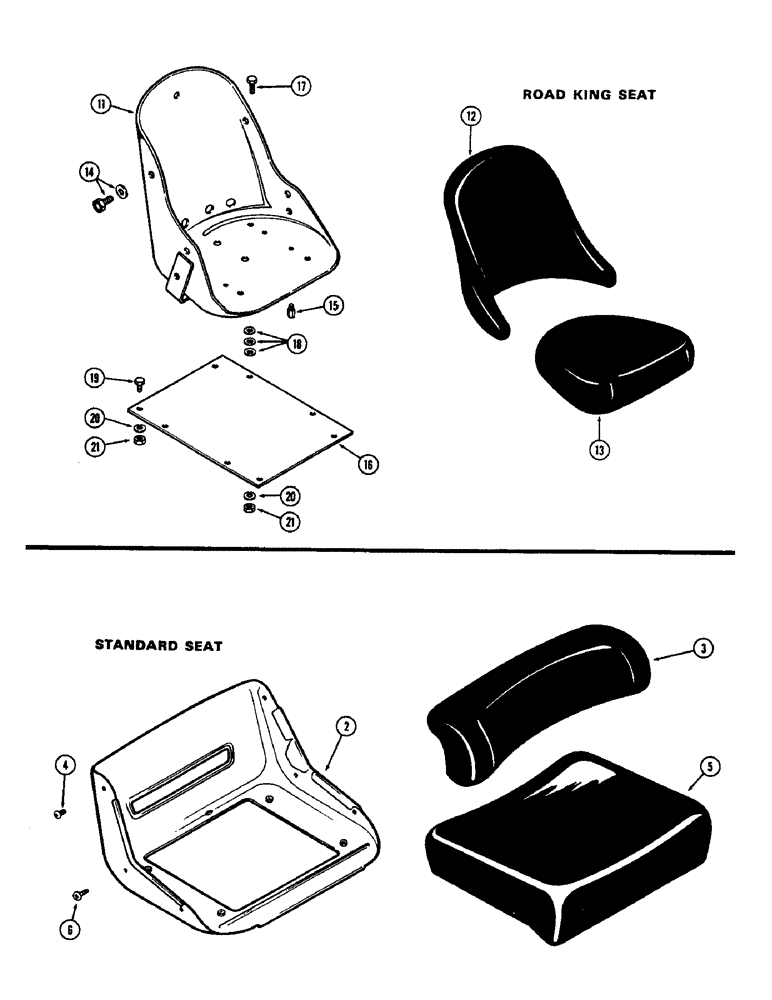

Запчасти Case 580 (168) - SEATS, STANDARD SEAT, ROAD KING SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

D38271

SEAT

ASSY. - complete, battery case and tool box2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - seat (Order D38271)

1шт.

3

D39419

BACKREST

CUSHION - back rest

1шт.

4

173-264

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" rd. hd. Phillips

3шт.

5

D39420

CUSHION

- seat

1шт.

6

173-265

SCREW,Phil Rnd Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" rd. hd. Phillips

4шт.

D49495

SEAT ASSY.

road king seat, Inlcudes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

FRAME - seat shell (Order D49495), road king seat

1шт.

12

A42747

BACKREST

CUSHION - backrest, road king seat

1шт.

13

D52470

CUSHION

- seat, road king

1шт.

14

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(w/washer), road king seat Hex, 3/8"-16 x 5/8", G5, Full Thd

5шт.

15

L32870

PIN

- seat pan, road king

2шт.

16

D49493

PLATE - seat adapter, road king

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Seat to adapter, Road king Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- spacer (3/8 x 7/8 x 5/64"), road king seat

6шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate to mtg. channel, road king seat Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

20

92-5

LOCK WASHER,5/16"

WASHER - , lock, road king seat 5/16"

8шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., road king seat

8шт.
