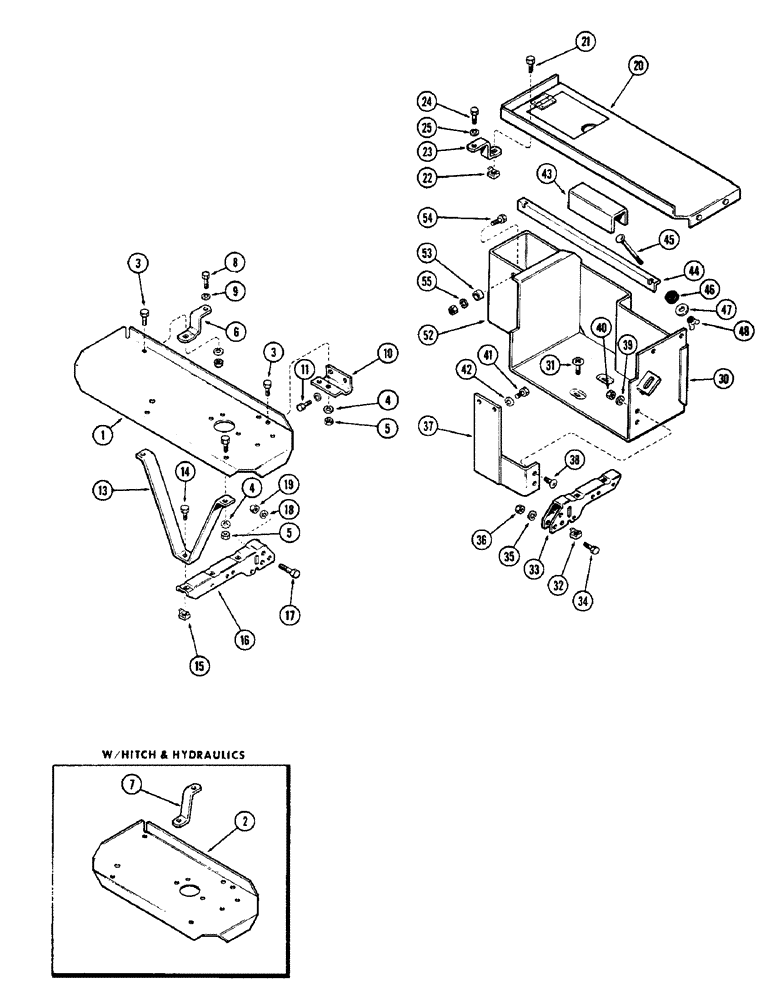

Запчасти Case 580 (167A) - PLATFORMS, BATTERY CASE AND TOOL BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A37526

PLATFORM - R.H. (w/out hitch or remote hyd.)

1шт.

2

A37522

PLATFORM - L.H. (w/hitch or remote hyd.)

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Platform Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

4

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

5шт.

5

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

5шт.

6

A37369

SUPPORT

- R.H. rear (w/out hitch or remote hyd.)

1шт.

7

A37367

SUPPORT - R.H. rear (w/hitch or remote hyd.)

14шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

10

A37366

SUPPORT - R.H. front

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

13

A37364

SUPPORT - R.H. (Underneath)

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Support Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

15

1502286C2

NUT,Floating Cage, 5/16"-18

- cage (5/16" N.C.)

1шт.

16

A37368

SUPPORT - lower, R.H. platform

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Support Hex, 3/8"-16 x 1 3/4", G5

3шт.

18

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

19

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

20

A37521

PLATFORM - L.H.

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Platform

1шт.

22

131-137

SPRING NUT,Ret, 5/16"-18

1шт.

23

A37369

SUPPORT

- L.H. rear

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

30

A37488

CASE - battery, and tool box

1шт.

31

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- case (5/16 x 3/4" N.C. truss hd.), battery and tool box

1шт.

32

1502286C2

NUT,Floating Cage, 5/16"-18

- cage (5/16" N.C.), battery case and tool box

2шт.

33

A37365

SUPPORT

- lower, battery case, and tool box

1шт.

34

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Support, battery case and tool box Hex, 3/8"-16 x 1 3/4", G5

3шт.

35

92-6

LOCK WASHER,3/8"

WASHER - , lock, battery case and tool box 3/8"

3шт.

36

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), battery case and tool box

3шт.

37

A37378

SUPPORT - battery case to torque tube, and tool box

1шт.

38

175-432

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- support to case (5/16 x 5/8" N.C. truss hd.), battery and tool box

2шт.

39

92-5

LOCK WASHER,5/16"

WASHER - , lock, battery case and tool box 5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.), battery case and tool box

2шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Support battery case and tool box Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

42

92-6

LOCK WASHER,3/8"

WASHER - , lock, battery case and tool box 3/8"

2шт.

43

A37376

SPACER - battery case (Gas only), and tool box

1шт.

44

A37509

ANGLE - battery hold down, case and tool box

1шт.

45

11-664

BOLT

- (3/8 x 4" N.C. rd. hd. square neck), battery case and tool box

2шт.

46

G46867

GROMMET

- rubber, hold down bolt, battery case and tool box

2шт.

47

G49400

WASHER

- hold down bolt (13/32 x 1-5/32 x 10 ga.), battery case and tool box

2шт.

48

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C., battery case and tool box

2шт.

52

A37287

TOOL BOX, battery case and tool box

1шт.

53

A37377

SPACER - tool box to brake cover, battery case

1шт.

54

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Battery case and tool box Hex, 1/2"-13 x 4 1/4", G5

1шт.

55

92-8

LOCK WASHER,1/2"

battery case and tool box 1/2"

1шт.
