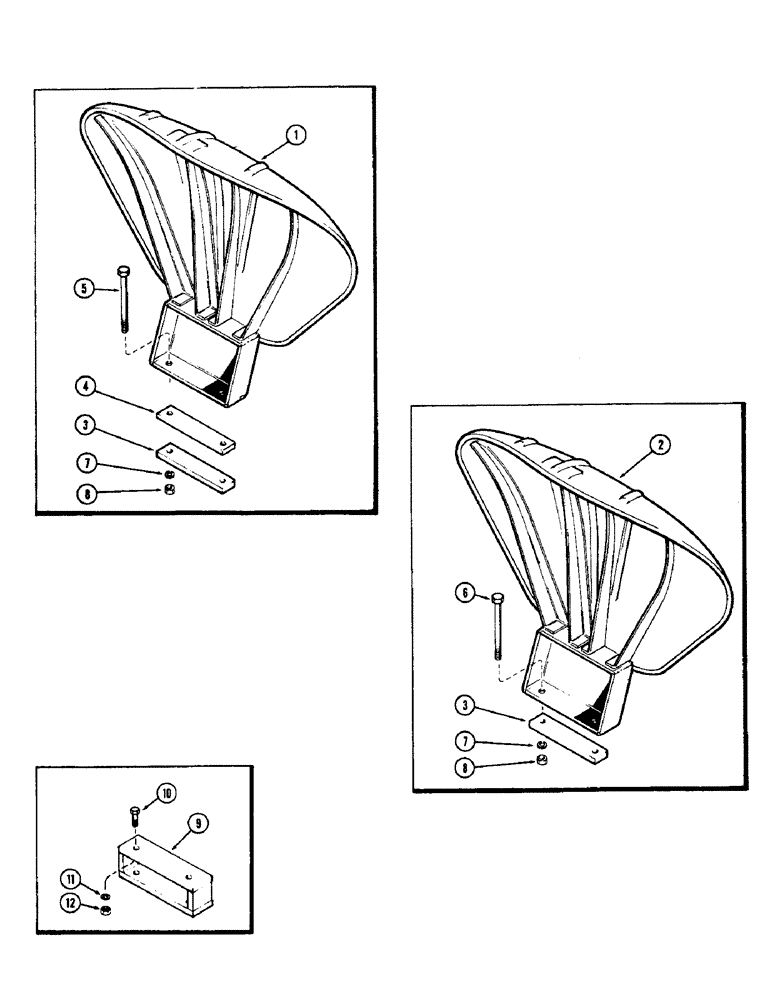

Запчасти Case 580 (166) - FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A38668

FENDER

- right hand (w/8-1/2" base) (1st used trac. ser. no. 8365599)

1шт.

1

A38669

FENDER

- left hand (w/8-1/2" base) (1st used trac. ser. no. 8365599)

1шт.

2

A37294

FENDER

- right hand (w/8" base) (Used prior to trac. ser. no. 8365599)

1шт.

2

A37971

FENDER

- left hand (w/8" base) (Used prior to trac. ser. no. 8365599)

1шт.

3

A37305

CLAMP

- fender to axle (1/2" thick)

2шт.

4

A38667

BAR - fender clamp (1/4" thick) (Used w/A38668 & A38669 fenders)

2шт.

5

15-8112

BOLT

- fender (1/2 x 7" N.C. hex. hd.) (Used w/A38668 & A38669 fenders)

4шт.

6

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Fender, Used w/A37294 & A37971 fenders Hex, 1/2"-13 x 6 1/2", G5

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

9

A38474

PLATE - fender extension (Used w/backhoe w/14.9 x 24 or 16.9 x 28 tires)

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Plate to fender Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

4шт.
