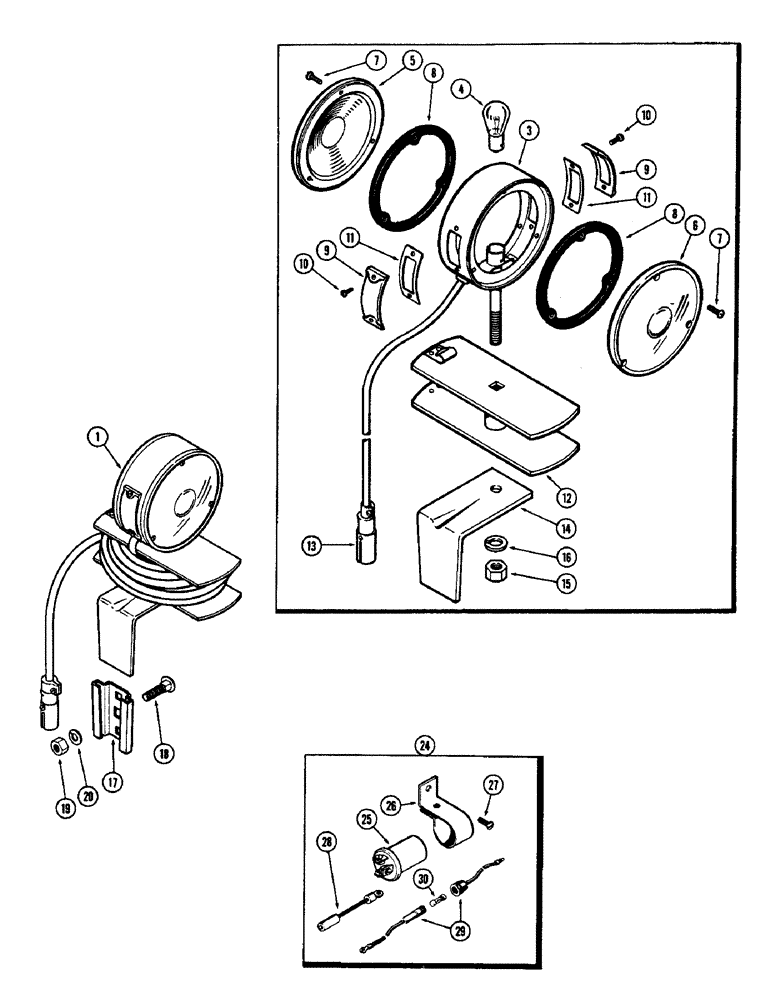

Запчасти Case 580 (077A) - WARNING LAMP, FLASHER ATTACHMENT (55) - ELECTRICAL SYSTEMS

1

A11066M

WARNING LAMP ATTACHMENT, Inlcudes: Ref. 3 - 16

1шт.

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066M), Inlcudes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

33686

BULB

- 21 C.P., 12 volt

1шт.

5

B50337

LENS

- front (Amber)

1шт.

6

B53962

LENS

- rear (Red)

1шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6-32 x 1/2" rd. hd.

6шт.

8

B50317

GASKET - lens

2шт.

9

B50328

LENS - side

2шт.

10

182-43

SCREW - #6-20 x 5/16" pan hd.

4шт.

11

B50329

GASKET - side lens

2шт.

12

B50330

SPOOL - cable

1шт.

13

B50259

PLUG

- auxiliary socket

1шт.

14

B50331

BRACKET - lamp attaching

1шт.

15

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

17

A8179

SOCKET

- lamp socket

1шт.

18

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16 x 5/8" N.C. rd. hd. sq. nk.

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

20

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

24

A22630M

FLASHER ATTACHMENT, Inlcudes: Ref. 25 - 30

1шт.

25

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

26

A22626

BRACKET - mounting, flasher attachment

1шт.

27

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" rd. hd., flasher attachment

1шт.

28

A22628

WIRE - flasher to socket, flasher attachment

1шт.

29

A22629

WIRE ASSY. - flasher to power, flasher attachment, Inlcudes: Ref. 30

1шт.

30

223-4

FUSE,4 Amp, Type 3AG

- (4 amp.), flasher attachment

1шт.
