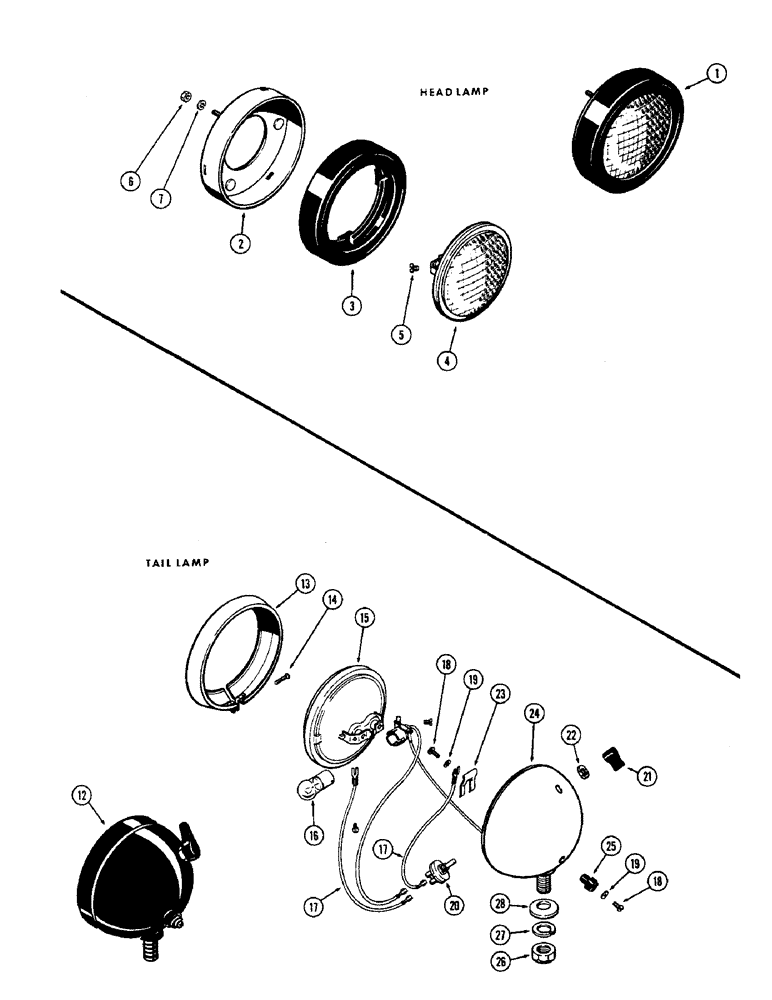

Запчасти Case 580 (076) - HEAD LAMPS, TAIL LAMP (55) - ELECTRICAL SYSTEMS

1

D30243

LAMP

ASSY. - head, Inlcudes: Ref. 2 - 5

2шт.

2

NS

NOT SERVICED

FRAME

1шт.

3

D31441

RETAINER

- rubber (Use w/guide lamp)

1шт.

3

A25213

RETAINER

- rubber (Use w/hobbs lamp)

1шт.

4

D33182

LAMP

- sealed unit

1шт.

5

182-57

SCREW - brass, #8-32 x 5/16" pan hd.

1шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

6шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

12

A20965

LAMP BASE

LAMP ASSY. - flood & tail, Inlcudes: Ref. 13 - 28

1шт.

13

B50255

MOLDING

- lamp retaining

1шт.

14

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding

1шт.

15

A40855

LAMP BASE

LAMP - sealed unit

1шт.

16

B50223

BULB

- red 15 C.P. 12 volt

1шт.

17

B50273

WIRE - switch

2шт.

18

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- wire

2шт.

19

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - 1/4" lock

2шт.

20

B50275

SWITCH

1шт.

21

B50310

SWITCH

KNOB - switch

1шт.

22

B50224

SPECIAL NUT

- switch

1шт.

23

10927

SPRING

- terminal

1шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.

25

B50293

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

10923

WASHER

- bearing

1шт.
