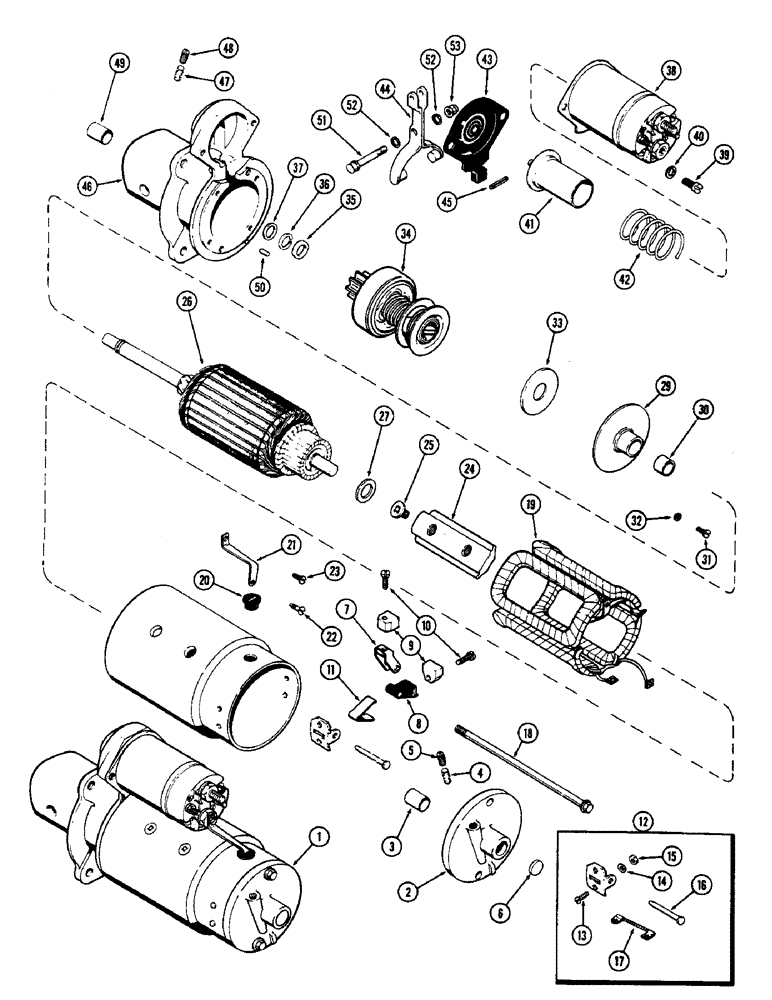

Запчасти Case 580 (073C) - A36582 STARTER, (188) DIESEL ENGINE, USED W/STANDARD CLUTCH (55) - ELECTRICAL SYSTEMS

1

A36582

SPARE PART STARTER ASSY. - (Delco-Remy #1107584) (Order A36583) (See Figure 073A) (See Figure 073E for rebuilt starter kit)

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end

1шт.

3

R15020

BUSHING

BUSHING

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil wick hole (1/8" P.T., sltd. hd.)

1шт.

6

R15021

PLUG

PLUG - bushing hole

1шт.

7

A40217

HOLDER

HOLDER - brush, ground

1шт.

8

R15027

HOLDER

HOLDER - brush, insulated

1шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder

4шт.

11

A25359

SPRING

SPRING - brush tension

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder

2шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - brush support (#10 x 1/2" N.C., rd. hd.)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - (#10 N.F. hex.)

2шт.

16

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground (#12 wire, 1-5/8" long)

1шт.

18

A25552

BOLT

BOLT - thru

2шт.

19

A25319

COIL

COIL ASSY. - field

1шт.

20

A41980

GROMMET

GROMMET - coil connector (In frame)

1шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector to coil (#10 x 7/16" N.F., rd. hd.)

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

24

A25391

SHOE

SHOE - pole

4шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes

8шт.

26

A40219

ARMATURE

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.

A40215

PLATE ASSY.

PLATE ASSY. - center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40215)

1шт.

30

A42125

BUSHING

BEARING - center

1шт.

31

A41959

SCREW,#10 - 32 x 3/8"

SCREW - ctr. brg. to drive hsg.

2шт.

32

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - (#10 ext./int. skpf.)

2шт.

33

R15043

WASHER

WASHER - thrust, center bearing

1шт.

34

A41871

DRIVE

DRIVE ASSY. - starter

1шт.

35

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

36

R15048

RING

RING - snap, collar retaining

1шт.

37

A25385

WASHER

WASHER - thrust, starter drive

1шт.

38

G44891

SOLENOID

SOLENOID ASSY. - (See Figure 073E)

1шт.

39

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid to drive hsg.

2шт.

40

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

41

A40218

PLUNGER

PLUNGER - solenoid

1шт.

42

A40221

SPRING

SPRING - plunger return

1шт.

43

A42126

GASKET

BOOT - solenoid cover

1шт.

44

A40220

LEVER

LEVER - shift

1шт.

45

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN - , lever to plunger 3/16" x 13/16", Slotted

1шт.

46

A40226

FRAME

HOUSING ASSY. - drive end, Inlcudes: Ref. 47 - 49

1шт.

47

R15023

WICK

WICK - oil

1шт.

48

221-1041

PLUG

PLUG - oil wick hole (1/8" P.T. sltd. hd.)

1шт.

49

A25387

BEARING

BUSHING - (15/32 x 5/8 x 13/16")

1шт.

50

R15041

SPARE PART PIN - locating, drive end housing

1шт.

51

A40520

BOLT

PIVOT - shift lever

1шт.

52

A42181

SEALING WASHER

SEAL - pivot stud

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

NUT, , Pivot stud Jam, 5/16"-18, G5

1шт.
