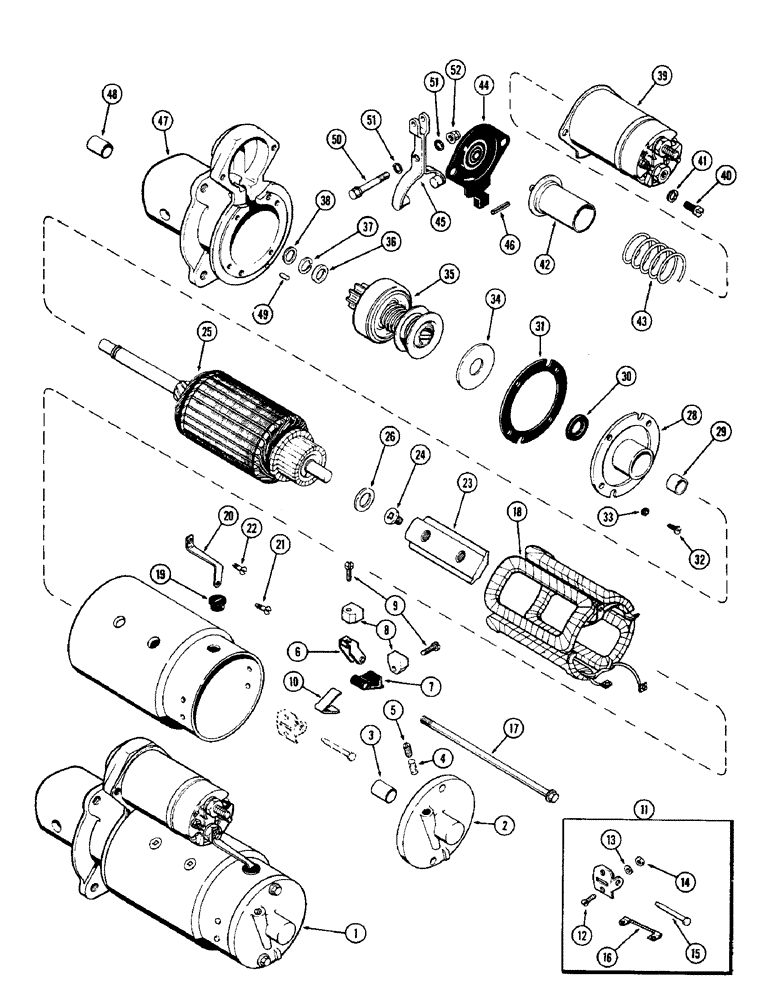

Запчасти Case 580 (072) - A38413 STARTER, (188) DIESEL ENGINE, WITH 9 TOOTH PINION DRIVE USED WITH POWER SHUTTLE (55) - ELECTRICAL SYSTEMS

1

A38413

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1107874) (See Figure 073E for rebuild starter kit)

1шт.

a38413----THIS STARTER HAD A 9 TOOTH DRIVE ASSY. THE SUB TO A47460 WITH 10 TOOTH DRIVE IS CORRECT. 10 TOOTH DRIVE WILL WORK FINE AS LONG AS THE REMAN UNIT WAS MANUFACTURED WITH CORRECT NOSE PIECE.jcl

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A41870

FRAME

HEAD ASSY. - commutator end

1шт.

3

R15020

BUSHING

BUSHING - (9/16 x 11/16 x 29/32")

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil wick hole (1/8" P.T., sltd. hd.)

1шт.

6

A40217

HOLDER

HOLDER - brush, ground

2шт.

7

R15027

HOLDER

HOLDER - brush, insulated

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder

4шт.

10

A25359

SPRING

SPRING - brush tension

2шт.

11

A25379

KIT

SUPPORT KIT - brush holder

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - brush support (#10 x 1/2" N.C. rd. hd.)

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

R15032

X

NUT - (#10 N.C. hex.)

4шт.

15

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

17

A25552

BOLT

BOLT - thru

2шт.

18

A25548

COIL

COIL ASSY. - field

1шт.

19

A41980

GROMMET

GROMMET - coil connector (In frame)

1шт.

20

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector to coil (#10 x 7/16" N.F. rd. hd.)

1шт.

22

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

23

A25391

SHOE

SHOE - pole

4шт.

24

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes

8шт.

25

A25547

ARMATURE

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.

A40223

PLATE

PLATE ASSY. - center bearing

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

29

A41982

BUSHING

BEARING - center (3/4 x 1-1/4 x 13/32")

1шт.

30

A40228

OIL SEAL

SEAL - oil, ctr. brg. (3/4 x 1-1/4 x 1/4")

1шт.

31

A41981

GASKET

GASKET - center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

SCREW - ctr. brg. to drive hsg.

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

WASHER - thrust, center bearing

1шт.

35

A41871

DRIVE

DRIVE ASSY. - starter (9 teeth)

1шт.

36

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

37

R15048

RING

RING - snap, collar retaining

1шт.

38

A25385

WASHER

WASHER - thrust, starter drive

1шт.

39

G44891

SOLENOID

SOLENOID ASSY. - (See Figure 073E)

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid to drive hsg.

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

42

A40218

PLUNGER

PLUNGER - solenoid

1шт.

43

A40221

SPRING

SPRING - plunger return

1шт.

44

A40222

BOOT

BOOT - solenoid cover

1шт.

45

A40220

LEVER

LEVER - shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN - , lever to plunger 3/16" x 13/16", Slotted

1шт.

47

A40224

FRAME

HOUSING ASSY. - drive end

1шт.

48

A40227

BUSHING

BUSHING - housing (1/2 x 9/16 x 25/32")

1шт.

49

R15041

SPARE PART PIN - locating, drive end hsg.

1шт.

50

A25401

SPARE PART PIVOT - shift lever

1шт.

51

A41984

WASHER

SEAL - pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot stud

1шт.
