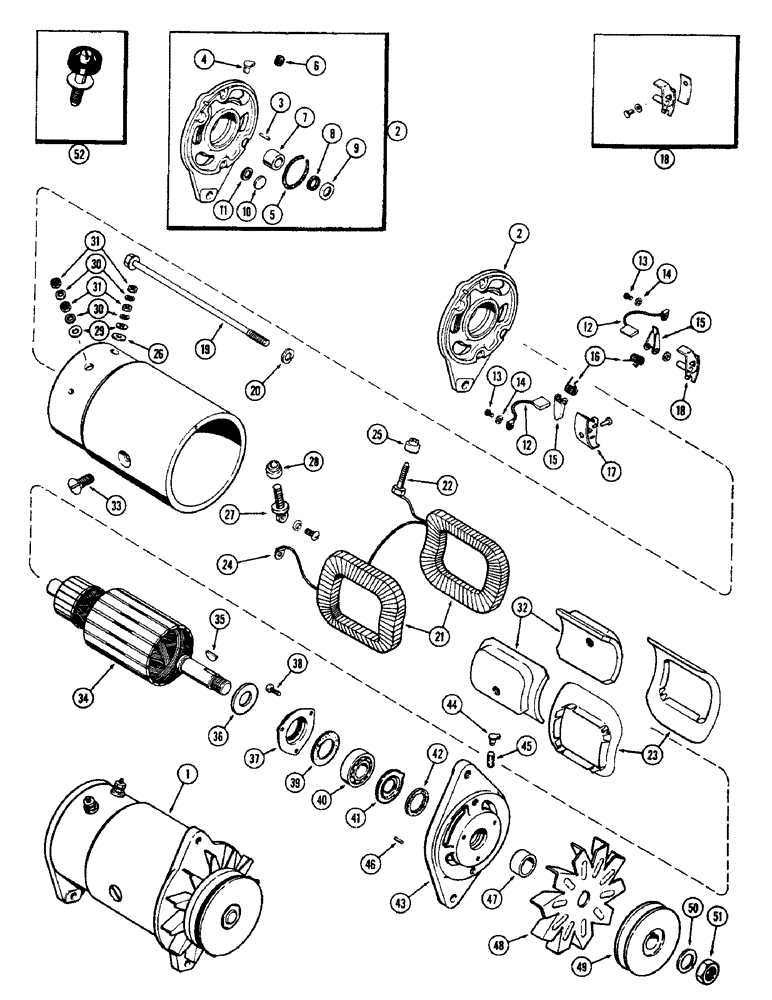

Запчасти Case 580 (070) - A36563 GENERATOR, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A36563

GENERATOR

GENERATOR ASSY. - (Delco-Remy #1100443), Inlcudes: Ref. 2 - 52

1шт.

Reman generator is part nbr A47448 (now subs to 103817A1R).

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

1

108012A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

108012A1C

CORE

Return Number

1шт.

1

87297306

REMAN-GENERATOR

Remanufactured Generator, 12V 20A

1шт.

1

87297307

CORE-GENERATOR

Return Number Generator, 12V 20A

1шт.

1

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

1

104018A1C

CORE-GENERATOR

Return Number

1шт.

2

A25411

HOUSING

HOUSING ASSY. - commutator end, Inlcudes: Ref. 3 - 11

1шт.

3

R15095

SPARE PART PIN - head locating

1шт.

4

219-202

OILER

OILER

1шт.

5

A41417

WICK

WICK - oiler

1шт.

6

A41988

SPARE PART PLUG - oil wick hole

1шт.

7

A25459

BUSHING

BUSHING - armature shaft

1шт.

8

R16157

WASHER

WASHER - felt, commutator end

1шт.

9

R16156

CUP

CUP - retainer, felt washer

1шт.

10

41-13

GUARD,Exp, 13/16"

PLUG - oil reservoir

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil reservoir plug

1шт.

12

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - generator

2шт.

13

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6 x 1/4" rd. hd.)

2шт.

14

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, - Brush lead screw #6

2шт.

15

R15090

ARM

ARM - brush pressure

2шт.

16

R16161

VALVE SPRING

SPRING - brush arm

2шт.

17

A40703

NOZZLE HOLDER

BRUSH HOLDER KIT - grounded

1шт.

18

A40704

NOZZLE HOLDER

BRUSH HOLDER KIT - insulated

1шт.

19

A40129

BOLT

BOLT - thru

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

21

R16149

COIL ASSY.

COIL ASSY. - field, Inlcudes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. #52)

1шт.

23

R16152

INSULATOR

INSULATION - field coil

2шт.

24

R16151

CLIP - armature term.

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - field term. (Order ref. #52)

1шт.

26

R16148

WASHER

WASHER - field term., insulated (See ref. 52)

1шт.

27

A40701

STUD

STUD - armature terminal

1шт.

28

R16147

BUSHING

BUSHING - arm. term., insulating

1шт.

29

R15079

WASHER

WASHER - terminal stud, plain (Metal)

2шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

31

129-18

NUT,#12-24

NUT - terminal studs (#12 N.F. hex.)

4шт.

32

A40700

SPARE PART SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.F., flat hd.)

2шт.

34

A40130

ARMATURE

ARMATURE - generator

1шт.

35

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Armature shaft #5, 1/8" x 5/8", HT

1шт.

36

R15100

SPARE PART SPACER - retainer

1шт.

37

R15101

PLATE

RETAINER - bearing

1шт.

38

A41959

SCREW,#10 - 32 x 3/8"

SCREW - brg. retainer

3шт.

39

R16170

GASKET

GASKET - retainer

1шт.

40

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

41

R16169

LARGE PLATE

PLATE, LARGE RETAINER - felt washer

1шт.

42

R16168

WASHER

WASHER - drive end, felt

1шт.

43

A25442

HOUSING

HOUSING ASSY. - drive end, Inlcudes: Ref. 44 and 45

1шт.

44

219-202

OILER

OILER

1шт.

45

A40700

SPARE PART WICK - oil

1шт.

46

R15041

SPARE PART PIN - drive end locating

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

FAN - ventilating

1шт.

49

A25454

PULLEY

PULLEY - generator drive

1шт.

50

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

51

A25546

NUT

NUT - pulley retaining

1шт.

52

A40702

STUD

STUD ASSY. - field terminal

1шт.
