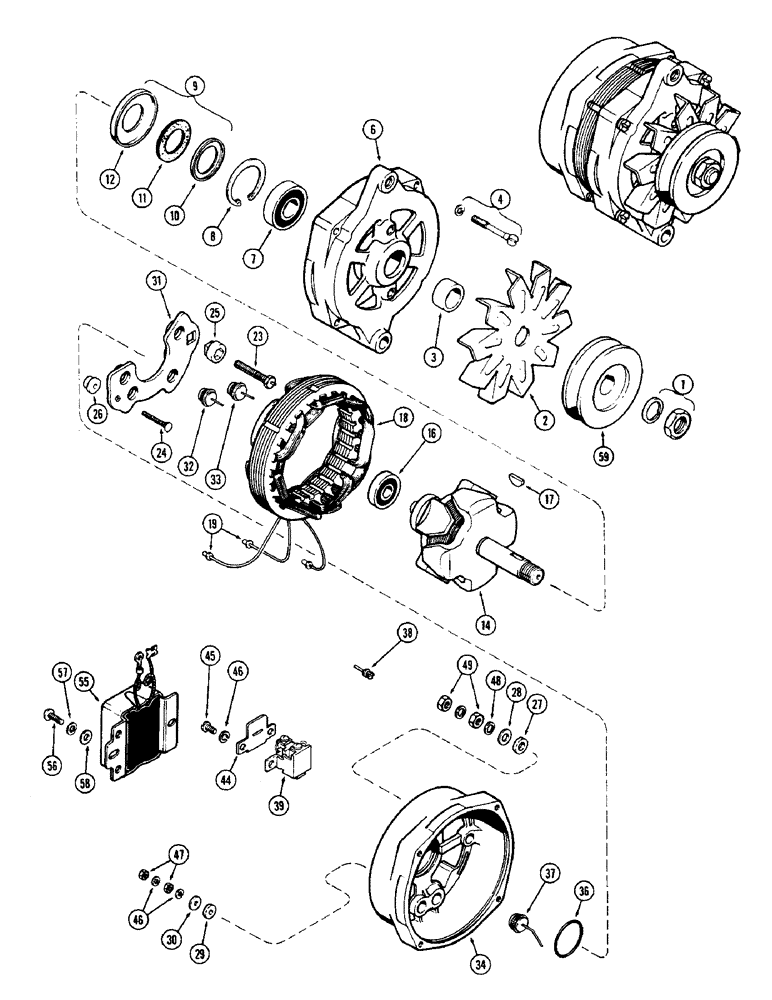

Запчасти Case 580 (068) - A38815 ALTERNATOR, (188) DIESEL & (159) SPARK IGNITION (55) - ELECTRICAL SYSTEMS

A38815

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite #ALK-7314) (Production only - includes pulley & regulator) (Order 1-A42776, 1-A42777 & 1-A42098), Inlcudes: Ref. 1 - 59

1шт.

A42776

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite #ALK-6314-S) (Service only - w/o pulley or regulator), Inlcudes: Ref. 1 - 59

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 63 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New PN A42776

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

580 BSN 8685800

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufacturerd 12 VOLT, 100 AMP Altrrnator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

A40581

KIT

PACKAGE - nut & washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41081

SPARE PART PACKAGE - bolt, thru (Set of 4 w/washers)

1шт.

6

A42262

HEAD

SPARE PART HEAD ASSY. - drive end, Inlcudes: Ref. 7 - 12

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

PACKAGE - retainer & seal, Inlcudes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A42774

KIT

ROTOR ASSY. - alternator

1шт.

16

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft (Sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42775

STATOR

STATOR ASSY. - alternator

1шт.

19

A41065

KIT

PACKAGE - eyelet, wire end (Set of 6)

1шт.

A42771

STUD

PACKAGE - terminal stud, Inlcudes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A42773

HEAD (CYLINDER)

HEAD SINK - rectifier, Inlcudes: Ref. 32 and 33

1шт.

32

A41075

DIODE

DIODE - positive (Color coded w/red mark)

3шт.

33

A42261

DIODE

DIODE - output (Set of 2) (Color coded w/black mark)

1шт.

34

A42772

SPARE PART HEAD ASSY. - slip ring end, Inlcudes: Ref. 36 - 38

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - 1-3/16 x 1-5/16 x 1/16"

1шт.

37

A41071

DIODE

DIODE - negative

4шт.

38

A42266

KIT

PACKAGE - plugs (Set of 10)

1шт.

39

A42495

HOLDER

HOLDER ASSY. - brush

1шт.

44

A41073

COVER

INSULATION - brush holder cover

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10-24 x 3/8" mach.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10 N.F. hex. jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-9002

NUT - 1/4"-28 hex.

2шт.

55

A42098

VALVE

REGULATOR ASSY. - voltage

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - mach., regulator mtg.

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42777

PULLEY

PULLEY - drive, alternator

1шт.
