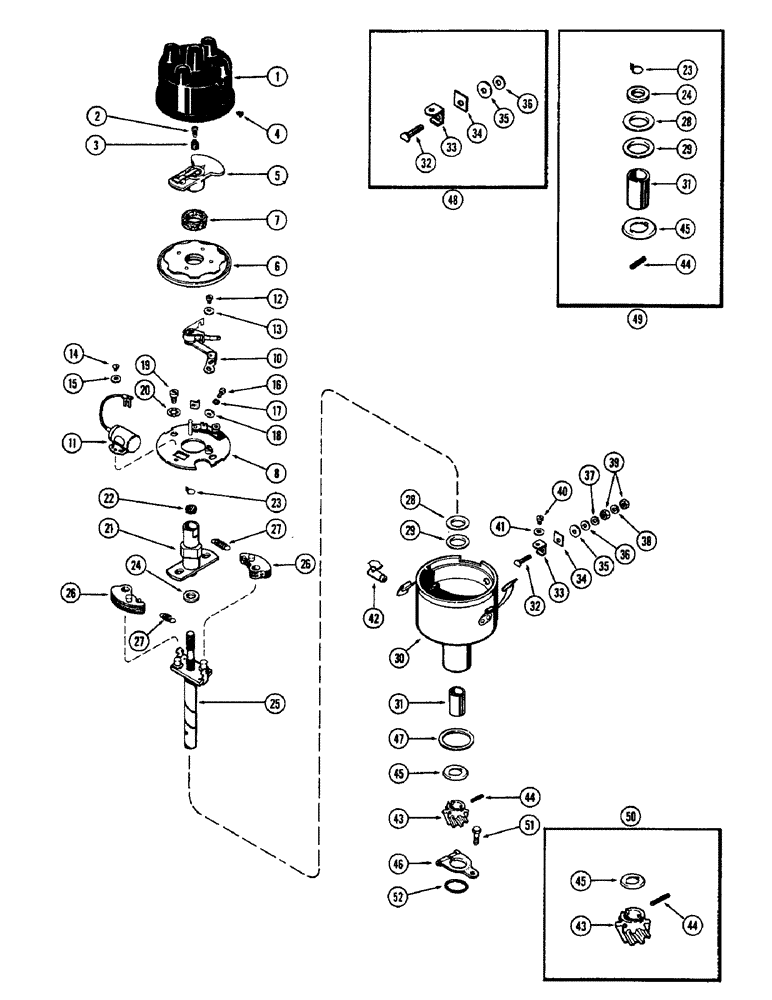

Запчасти Case 580 (067A) - A30358 DISTRIBUTOR, (159) SPARK IGNITION ENGINE, WITHOUT TACHOMETER DRIVE (55) - ELECTRICAL SYSTEMS

A30358

DISTRIBUTOR

ASSY. - (Prestolite #IAD-6003-2F), Inlcudes: Ref. 1 - 47

1шт.

1

A8368

CAP

ASSY., Inlcudes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - brush tension

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - contact (Carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - rubber, vent hole

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

COVER ASSY. - breaker plate, Inlcudes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust, felt

1шт.

8

A25196

PLATE

ASSY. - breaker, Inlcudes: Ref. 10 - 18

1шт.

A40929

KIT

- points and condenser, Inlcudes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40929)

1шт.

11

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40929)

1шт.

12

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

177-72

SCREW - point set (#8-32 x 3/16")

1шт.

14

177-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

15

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

16

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- spring clamp (#6-32 x 5/16" flat hd.)

1шт.

17

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

18

195-6

WASHER,#6

- flat #6

1шт.

19

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate (#10-32 x 5/16" fill. hd.)

2шт.

20

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

21

A25193

CAM

ASSY., Inlcudes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

23

A25180

RING, SNAP

RING - snap (See A40322)

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - cam (Order A40322)

1шт.

25

A25177

SHAFT

- drive

1шт.

26

A25198

WEIGHT

- governor

2шт.

27

A25199

SPRING KIT

SPRING - governor weight (Set of 2)

1шт.

28

A24752

WASHER

- thrust, inner (See A40322)

1шт.

29

A24753

WASHER

- thrust, outer (See A40322)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order A30358)

1шт.

31

A24766

BUSHING

BEARING - drive shaft (See A40322)

1шт.

32

NSS

NOT SOLD SEPARAT

CONTACT - lo-tension terminal (Order A40321)

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR - lo-tension (Order A40321)

1шт.

34

NSS

NOT SOLD SEPARAT

INSULATION - inner (Order A40321)

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order A40321)

1шт.

36

NSS

NOT SOLD SEPARAT

INSULATION - contact outer (Order A40321)

1шт.

37

195-5

WASHER

- #10 plain

1шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

39

129-27

NUT,Hex, #10 - 32

- hex. #10-32

2шт.

40

174-56

SCREW - connector (#6-32 x 3/16" rd. hd.)

1шт.

41

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

42

A24887

OILER - drive shaft

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR - drive (Order A40323)

1шт.

44

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

45

A25200

WASHER

- thrust, gear (See A40322 and A40323)

1шт.

46

A29989

ARM

- advance

1шт.

47

A30080

THRUST WASHER

- thrust, advance arm

1шт.

48

A40321

KIT

- terminal stud (Incl. items 32, 33, 34, 35 & 36)

1шт.

49

A40322

KIT

- shaft bearing (Incl. items 23, 24, 28, 29, 31, 44 & 45)

1шт.

50

A40323

GEAR

KIT - gear (Incl. items 43, 44 & 45)

1шт.

51

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

52

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor to block (1-1/16 x 1-5/16 x 1/8")

1шт.
