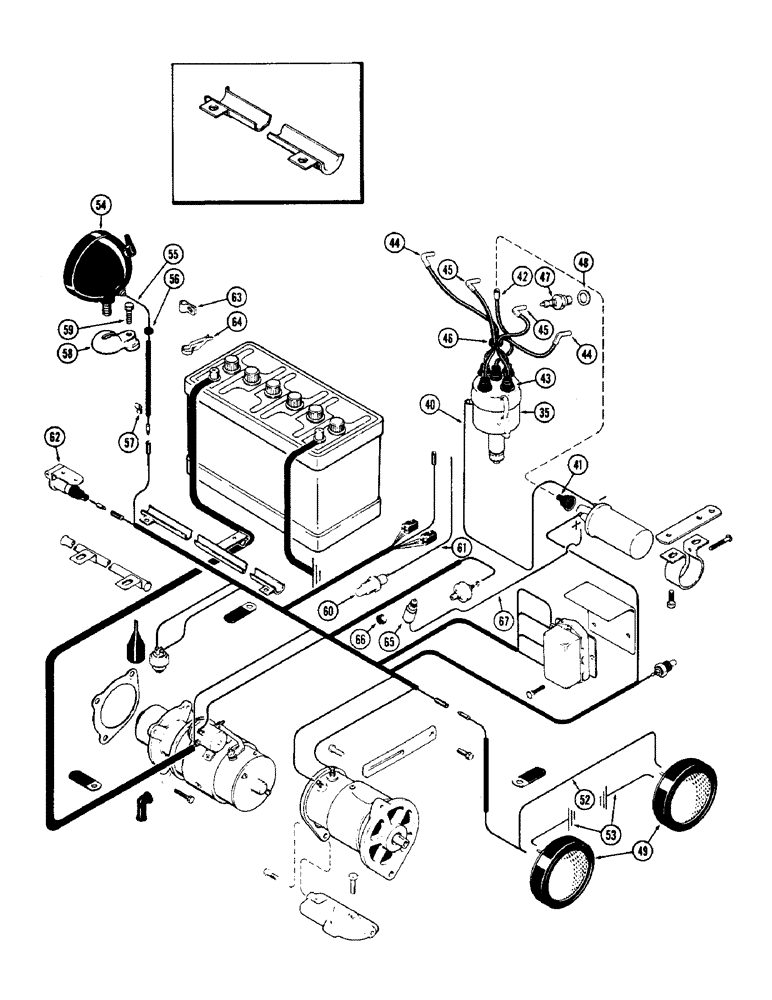

Запчасти Case 580 (065E) - ELECT. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/GENERATOR, USED PRIOR TO TRAC. S/N. 8656 (55) - ELECTRICAL SYSTEMS

35

A30358

DISTRIBUTOR

ASSY. - w/out tach. drive (Prestolite #IAD-6003-2F) (See Figure 067A)

1шт.

40

G13085

ELECTRICAL WIRE

WIRE - lo-tension, dist. to coil (12")

1шт.

41

G46803

BOOT

NIPPLE - coil wire

1шт.

42

CASA30038

CABLE

WIRE - hi-tension, coil to dist. (11")

1шт.

43

A29338

COVER

NIPPLE - distributor wire

5шт.

44

A29994

CABLE

WIRE - #1 & #4 spark plugs (10-1/2" long)

2шт.

45

A30018

CABLE

WIRE - #2 & #3 spark plugs (8-1/2" long)

2шт.

46

A30109

WASHER

RING - wire harness

1шт.

47

G44840

SPARK PLUG

ASSY., Inlcudes: Ref. 48

4шт.

48

G46839

GASKET

- spark plug

1шт.

49

D30243

LAMP

ASSY. - head (Repairs Figure 076)

2шт.

52

D39242

ELECTRICAL WIRE

WIRE ASSY. - head lamp

1шт.

53

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

54

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 076)

1шт.

55

A37516

WIRE - tail, Serial Range: lamp-harness

1шт.

56

A27338

GROMMET

- rubber, fender

1шт.

57

G46047

CLIP - tail light, Serial Range: wire-fender

1шт.

58

A34046

BRACKET

- mounting, flood & tail lamp

1шт.

59

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

60

A33241

SWITCH

- warning, converter temperature

1шт.

61

A36677

ELECTRICAL WIRE

WIRE - temp. switch to lamp (16")

1шт.

62

A8170

SOCKET

- auxiliary outlet

1шт.

63

49859

CLAMP

CLIP - tail light, Serial Range: wire-fender

1шт.

64

A37975

CLIP

- tail light, Serial Range: wire-fender

2шт.

65

A38253

SOLENOID

ASSY. - (See Figure 056)

1шт.

66

A37100

X

CLIP - solenoid wire

1шт.

67

A38244

WIRE -, Serial Range: coil-solenoid

1шт.
