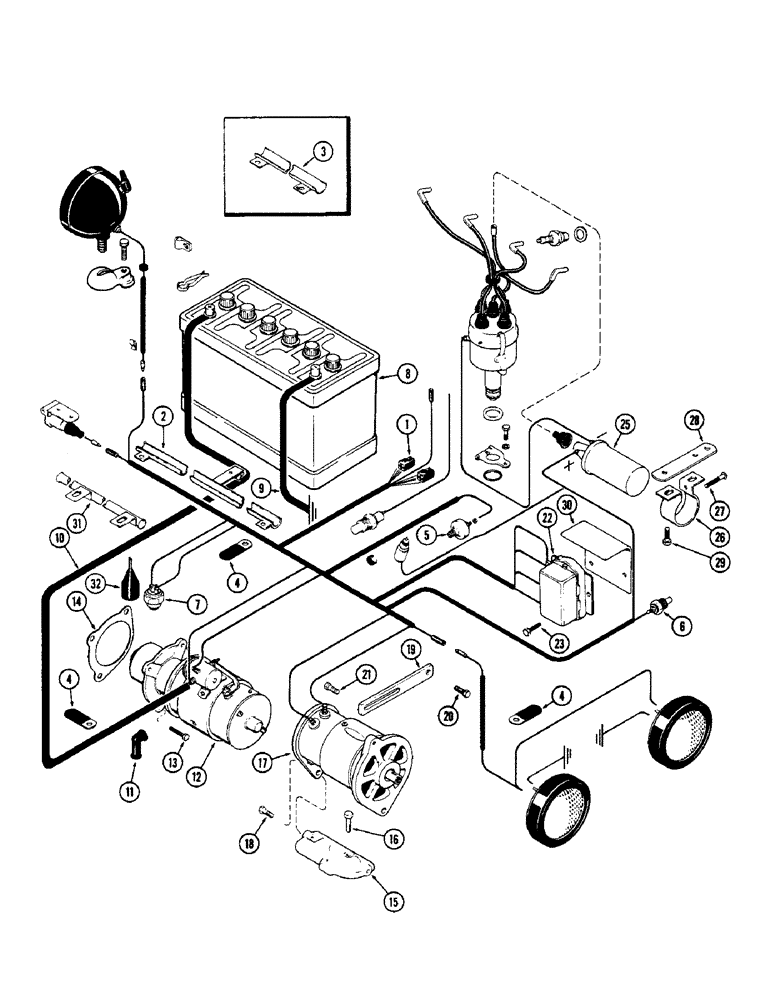

Запчасти Case 580 (065C) - ELEC. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/GENERATOR, USED PRIOR TO TRAC. S/N. 86566 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A37514
HARNESS
ASSY. - main wire
1шт.
2
A38436
CONDUIT - wire (Under fuel tank) (w/center strap) (1st used trac. ser. no. 8359651)
1шт.
3
A37506
CONDUIT - wire (Under fuel tank) (w/out center strap) (Used prior to trac. ser. no. 8359651)
1шт.
4
A37179
CLIP
- wire
1шт.
5
A13794
TRANSMITTER
UNIT - sender, engine oil pressure
1шт.
6
A21462
SENDER UNIT
UNIT - sender, engine temperature
1шт.
7
A20990
SWITCH
- safety, neutral start
1шт.
8
G44805
X
BATTERY - 12 volt
1шт.
9
A38414
STRAP
- battery ground (Replaces A37349)
1шт.
10
A21486
CABLE
-, Serial Range: battery-starter
1шт.
11
A21753
CAP
NIPPLE - cable to starter solenoid
1шт.
12
A36581
STARTER ASSY. - (See Figure 075A) (Prestolite #MDU-7102-A)
1шт.
13
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3шт.
14
G46873
GASKET
- starting motor (w/power shuttle only)
1шт.
15
A38746
BRACKET
- generator mounting (Replaces G2131)
1шт.
16
13-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
- 5/16 x 1-3/8" N.C. hex.
2шт.
17
A41452
GENERATOR ASSY. - (See Figure 071A) (Replaces A36195)
1шт.
18
14-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd
- 5/16 x 1" N.F. hex.
2шт.
19
G11344
STRAP - generator adjusting
1шт.
20
14-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5
- 3/8 x 1-1/4" N.F. hex.
1шт.
21
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
22
A36194
REGULATOR
- voltage
1шт.
23
114-5
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
- 1/4 x 3/4" N.F. hex.
3шт.
25
A41820
COIL
- ignition
1шт.
26
G46106
BRACKET
CLAMP - coil mounting, Inlcudes: Ref. 27
1шт.
27
173-219
SCREW - #10-32 x 1-1/2" rd. hd.
1шт.
28
G11705
BRACKET
- coil mounting
1шт.
29
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
2шт.
30
A38230
SHIELD
- voltage regulator
1шт.
31
A38826
CONDUIT
- wire (On trans. case) (Replaces A37511)
1шт.
32
A20991
BOOT
- safety switch
1шт.
Выбрано товаров: 31
