(065A) - ELEC. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/ALTERNATOR, 1ST USED TRAC. S/N. 8656686

Запчасти Case 580 (065A) - ELEC. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/ALTERNATOR, 1ST USED TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS

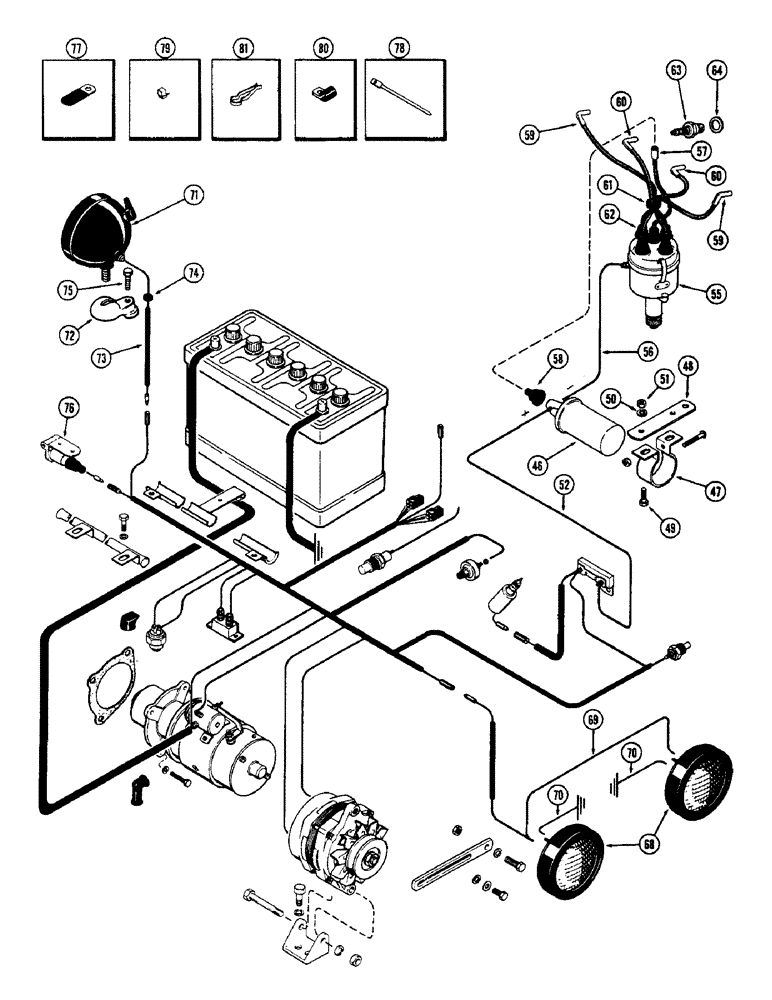

Схема запчастей Case 580 - (065A) - ELEC. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/ALTERNATOR, 1ST USED TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS
59
58
77
55
68
64
76
74
81
78
70
48
47
63
71
69
75
60
80
79
60
57
50
70
72
59
52
46
73
56
61
51
62
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

46

A40778

COIL

ASSY. - ignition

1шт.

47

G46106

BRACKET

CLAMP ASSY. - coil

1шт.

48

G11705

BRACKET

- coil mounting

1шт.

49

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

51

9635082

NUT,5/16" - 18, Gr 5

2шт.

52

A38832

ELECTRICAL WIRE

WIRE - resistor to coil (Pos. term.)

1шт.

55

A18461

DISTRIBUTOR

ASSY. - w/tach. drive (See Figure 066) (Auto-Lite #IBT-4403-A)

1шт.

56

G13085

ELECTRICAL WIRE

WIRE - coil to distributor (12" long) (Use for radio noise suppression)

1шт.

57

CASA30038

CABLE

WIRE - coil to dist. (11") (w/out suppression)

1шт.

58

G46803

BOOT

NIPPLE - hi-tension coil wire

1шт.

59

A39186

CABLE

WIRE - #1 & #4 spark plugs (11-1/2" long) (Used for radio noise suppression)

2шт.

59

A29994

CABLE

WIRE - #1 & #4 spark plugs (10-1/2" long) (Without radio noise suppression)

2шт.

60

A39187

CABLE

WIRE - #2 & #3 spark plugs (8-1/2" long) (Use for radio noise suppression)

2шт.

60

A30018

CABLE

WIRE - #2 & #3 spark plugs (8-1/2" long) (Without radio noise suppression)

2шт.

61

A30109

WASHER

RING - tie, hi-tension wires

1шт.

62

A29338

COVER

NIPPLER - hi-tension distributor wires

5шт.

63

G44840

SPARK PLUG

ASSY., Inlcudes: Ref. 64

4шт.

64

G46839

GASKET

- spark plugs

1шт.

68

D30243

LAMP

ASSY. - head (See Figure 076)

2шт.

69

D39242

ELECTRICAL WIRE

WIRE - head lamps

2шт.

70

A11768

ELECTRICAL WIRE

WIRE - head lamps, ground

2шт.

71

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 076)

1шт.

72

A34046

BRACKET

- tail lamp mounting

1шт.

73

A37516

WIRE - tail lamp

1шт.

74

A27338

GROMMET

- tail lamp wire (In fender)

1шт.

75

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Tail lamp bracket Hex, 3/8"-16 x 1 1/2", G5

1шт.

76

A8170

SOCKET

- auxiliary outlet

1шт.

77

A37179

CLIP

- wires

5шт.

78

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wires

1шт.

79

G46047

CLIP - wires

1шт.

80

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - wires

1шт.

81

A37975

CLIP

- wires

1шт.
