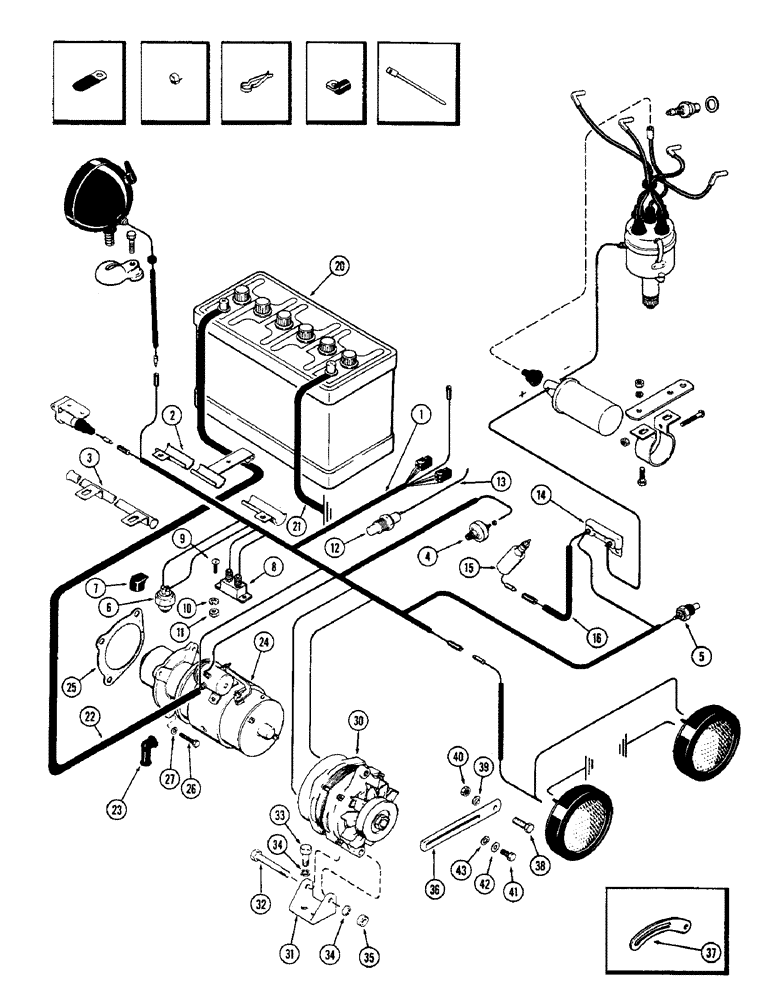

Запчасти Case 580 (064) - ELEC. EQUIPMENT & WIRING, (159) SPARK IGNITION ENG. USED W/ALTERNATOR, 1ST USED TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS

1

A38950

HARNESS

HARNESS ASSY. - main wiring

1шт.

2

A38436

SPARE PART CONDUIT - wire (Under fuel tank)

1шт.

3

A38826

CONDUIT

CONDUIT - wire (On transmission case)

1шт.

4

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

5

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

6

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

7

A61028

BOOT

BOOT - safety switch

1шт.

8

A22877

BREAKER,40A

BREAKER - circuit

1шт.

9

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - #8 x 3/8" N.C. rd. hd.

2шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

11

129-16

NUT,#8-32

NUT, #8-32

2шт.

12

A33241

SWITCH

SENDER - converter temperature

1шт.

A33241 sender - This fits into regulator valve assy (item #1 - A36898 on Figures 096 & 097).

1шт.

13

A36677

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: sender-lamp

1шт.

14

A24504

RESISTOR

RESISTOR - ballast

1шт.

15

A38253

SOLENOID

SOLENOID ASSY. - carburetor shut-off

1шт.

16

A38244

SPARE PART WIRE - shut-off, Serial Range: solenoid-resistor

1шт.

20

F22631

DRY BATTERY

BATTERY - (12 volt) (Dry)

1шт.

20

A39032

X

BATTERY - (12 volt) (Wet-charged) (Order F22631)

1шт.

21

A38414

STRAP

STRAP - battery ground

1шт.

22

A38415

CABLE

CABLE - battery to starter solenoid

1шт.

23

A21753

CAP

NIPPLE - starter solenoid cable

1шт.

24

A36584

STARTING MOTOR

STARTER ASSY. - (See Figure 074) (Prestolite #MDU7104A)

1шт.

24

104223A1R

REMAN-STARTER

Remanufactured Starter 12 Volt Presto Inertia

1шт.

24

104223A1C

CORE-STARTER

Return Part Number, Starter 12 Volt Presto Inertia

1шт.

25

G46873

GASKET

GASKET - starter (Torque converter only)

1шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

27

193-72

LOCK WASHER

WASHER - 3/8" int./ext. skpf.

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

A38815

ALTERNATOR

ALTERNATOR ASSY. - (See Figure 068) (Order 1-A42776, 1-A42777 & 1-A42098)

1шт.

30

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

30

103801A1C

CORE-ALTERNATOR

Return Part Number 12 Volt, 61 Amp Alternator

1шт.

31

A38492

BRACKET

BRACKET - alternator mounting

1шт.

32

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, , Alt. to brkt. Hex, 3/8"-16 x 3", G5

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Bracket to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

A59167

STRAP

STRAP - alternator adjusting (1st used trac. ser. no. 8676101)

1шт.

37

A37017

STRAP

STRAP - alternator adjusting (Used prior to trac. ser. no. 8676101)

1шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Strap to cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

41

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd, Strap to alt.

1шт.

42

195-103

WASHER,5/16"

WASHER - 3/8 x 7/8 x 5/64"

1шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
