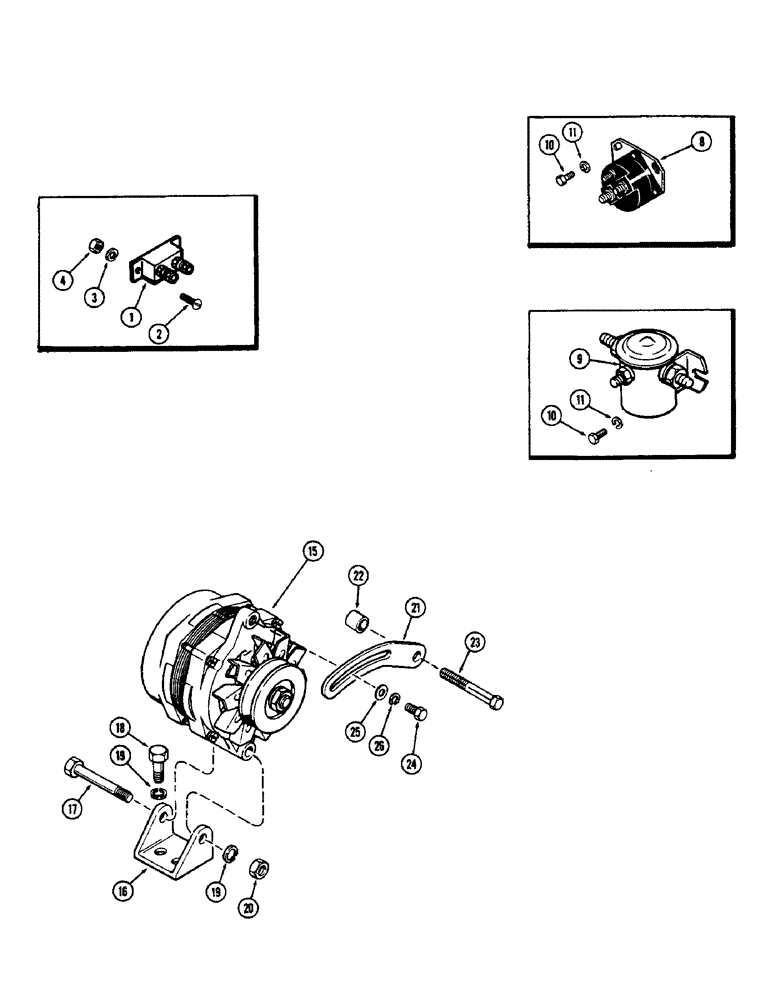

Запчасти Case 580 (061E) - ELECTRICAL MOUNTING PARTS, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A22877

BREAKER,40A

- circuit

1шт.

2

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" N.C., rd. hd.

2шт.

3

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

4

129-16

NUT,#8-32

2шт.

8

A39079

SOLENOID

- heater (1st used trac. ser. no. 8670673)

1шт.

9

A57069

SOLENOID

- heater (Used prior to trac. ser. no. 8670673)

1шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

15

A38815

ALTERNATOR

ASSY. - (See Figure 68) (Order 1-A42776, 1-A42777 & 1-A42098)

1шт.

16

A38492

BRACKET

- alternator mounting

1шт.

17

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Alt. to brkt. Hex, 3/8"-16 x 3", G5

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

A37017

STRAP

- alternator adjusting

1шт.

22

G11271

SPACER

-, Serial Range: strap-cover

1шт.

23

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Strap to cover Hex, 3/8"-16 x 2 1/4", G5

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Strap to alt.

1шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
