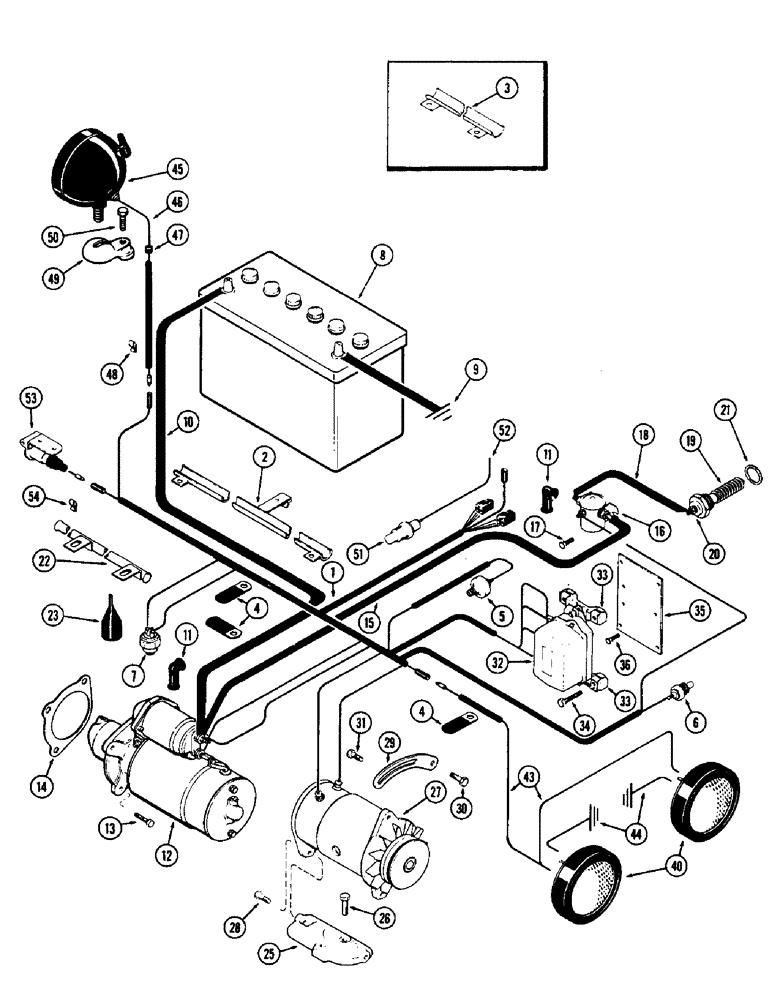

Запчасти Case 580 (061A) - ELEC. EQUIPMENT AND WIRING, (188) DIESEL ENG., USED TRAC. S/N. 8342842 TO 8656686, USED W/GENERATOR (55) - ELECTRICAL SYSTEMS

1

A37514

HARNESS

ASSY. - main wiring

1шт.

2

A38436

CONDUIT - wire (Under fuel tank) (w/center strap) (1st used trac. ser. no. 8359651)

1шт.

3

A37506

CONDUIT - wire (Under fuel tank) (w/out center strap) (Used prior to trac. ser. no. 8359651)

1шт.

4

A37179

CLIP

- wire

1шт.

5

A13794

TRANSMITTER

UNIT - sender, engine oil pressure

1шт.

6

A21462

SENDER UNIT

UNIT - sender, engine temperature

1шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

A38411

DRY BATTERY

- (12 volt) (Dry)

1шт.

8

A39177

X

BATTERY - (12 volt) (Wet-charged) (Order A38411)

1шт.

9

A38414

STRAP

- battery ground (6-3/16" long)

1шт.

10

A38415

CABLE

- battery to starter (57" long)

1шт.

11

A21753

CAP

NIPPLE - terminal, solenoid

2шт.

12

A38413

STARTER MOTOR

STARTER ASSY. - (Torque converter) (Delco-Remy #1107874) (See Figure 72)

1шт.

12

A36582

STARTER ASSY. - (Std. clutch) (Order A36583) (Delco-Remy #1107584) (See Figures 73A & 73C)

1шт.

13

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

14

G46873

GASKET

- starter (w/torque conv. only)

1шт.

15

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid (6" long)

1шт.

16

A57069

SOLENOID

- manifold heater

1шт.

17

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

18

A21483

CABLE

- solenoid to heater (25-1/2" long)

1шт.

19

A37775

HEATER

ASSY. - manifold, Inlcudes: Ref. 20

1шт.

20

129-503

NUT,1/4"-20, Brass

1шт.

21

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

22

A38826

CONDUIT

- wire (On trans. case) (Replaces A37511)

1шт.

23

A20991

BOOT

- safety switch

1шт.

25

A38746

BRACKET

- gen. mtg. (Replaces G2131)

1шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1-1/2" N.C. hex

1шт.

27

A36563

GENERATOR

ASSY. - (See Figure 70) (Delco-Remy #1100443)

1шт.

28

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

29

A37017

STRAP

- generator adjusting

1шт.

30

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 3" N.F. hex.

1шт.

32

A41464

REGULATOR

- voltage

1шт.

33

D32596

MOUNTING PARTS

MOUNTING KIT - regulator shock absorber

1шт.

34

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

4шт.

35

A37405

PLATE - regulator mounting

1шт.

36

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4 x 3/4" N.F. hex.

3шт.

40

D30243

LAMP

ASSY. - head (See Figure 76)

2шт.

43

D39242

ELECTRICAL WIRE

WIRE ASSY. - head lamp

2шт.

44

A11768

ELECTRICAL WIRE

WIRE - head lamp, ground

2шт.

45

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 76)

1шт.

46

A37516

WIRE - tail, Serial Range: lamp-harness

1шт.

47

A27338

GROMMET

- wire (In fender) (Rubber)

1шт.

48

G46047

CLIP - wire (To fender)

1шт.

48

A37975

CLIP

CLP - tail light wire (To fender)

1шт.

49

A34046

BRACKET

- mounting, flood & tail lamp

1шт.

50

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

51

A33241

SWITCH

- warning, converter temperature

1шт.

52

A36677

ELECTRICAL WIRE

WIRE - temp. switch to lamp (16" long)

1шт.

53

A8170

SOCKET

- auxiliary outlet

1шт.

54

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - wire (To fender)

1шт.
