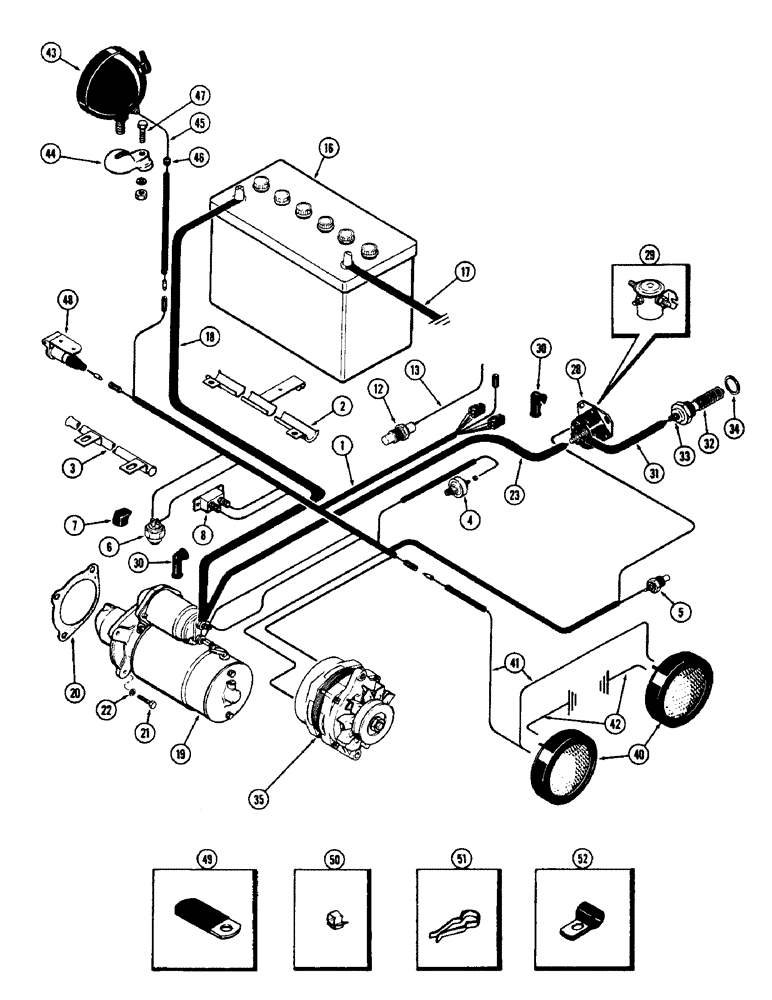

Запчасти Case 580 (060) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, USED W/AL TERNATOR 1ST USED TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS

1

A38950

HARNESS

HARNESS ASSY. - main wiring

1шт.

2

A38436

SPARE PART CONDUIT - wire (Under fuel tank)

1шт.

3

A38826

CONDUIT

CONDUIT - wire (On transmission case)

1шт.

4

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

5

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

6

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

7

A61028

BOOT

BOOT - safety switch

1шт.

8

A22877

BREAKER,40A

BREAKER - circuit (See Figure 61E for hdw.)

1шт.

12

A33241

SWITCH

SENDER - converter temperature

1шт.

13

A36677

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: sender-lamp

1шт.

16

A38411

DRY BATTERY

BATTERY - (12 volt) (Dry)

1шт.

16

A39177

X

BATTERY - (12 volt) (Wet-charged) (Order A38411)

1шт.

17

A38414

STRAP

STRAP - battery ground

1шт.

18

A38415

CABLE

CABLE - battery to starter solenoid

1шт.

19

A39839

STARTING MOTOR

STARTER ASSY. - (Torque converter) (See Figure 71C) (w/10 tooth drive pinion) (Delco-Remy #1109143)

1шт.

19

A38413

STARTER MOTOR

STARTER ASSY. - (Torque converter) (See Figure 72) (w/9 tooth drive pinion) (Delco-Remy #1107874)

1шт.

19

A36582

SPARE PART STARTER ASSY. - (Std. clutch) (Order A36583) (Delco-Remy #1107584) (See Figures 73A & 73C)

1шт.

20

G46873

GASKET

GASKET - starter (Torque converter only)

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

Number missing. This is part nbr 113-219 bolt (now subs to 413-632 bolt).

1шт.

22

193-72

LOCK WASHER

WASHER - 3/8" int./ext. skpf.

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

A36896

CABLE PULLING GRIP

CABLE - starter solenoid to heater solenoid

1шт.

28

A39079

SOLENOID

SOLENOID - heater (1st used trac. ser. no. 8670673)

1шт.

29

A57069

SOLENOID

SOLENOID - heater (Used prior to trac. ser. no. 8670673)

1шт.

30

A21753

CAP

NIPPLE - solenoid terminals

2шт.

31

A21483

CABLE

CABLE - heater, Serial Range: solenoid-heater

1шт.

32

A37775

HEATER

HEATER ASSY. - manifold, Inlcudes: Ref. 33

1шт.

33

129-503

NUT,1/4"-20, Brass

NUT, 1/4"-20, Brass

1шт.

34

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

35

A38815

ALTERNATOR

ALTERNATOR ASSY. - (See Figure 68) (Order 1-A42776, 1-A42777 & 1-A42098)

1шт.

35

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

35

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

40

D30243

LAMP

LAMP ASSY. - head (See Figure 76)

2шт.

41

D39242

ELECTRICAL WIRE

WIRE WIRE - head lamps

2шт.

42

A11764

SPARE PART WIRE - head lamps, ground

2шт.

43

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 76)

1шт.

44

A34046

BRACKET

BRACKET - tail lamp mounting

1шт.

45

A37516

SPARE PART WIRE - tail lamp

1шт.

46

A27338

GROMMET

GROMMET - tail lamp wire (In fender)

1шт.

47

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, , Tail lamp bracket Hex, 3/8"-16 x 1 1/2", G5

1шт.

48

A8170

SOCKET

SOCKET - auxiliary outlet

1шт.

49

A37179

CLIP

CLIP - wires

5шт.

50

G46047

SPARE PART CLIP - wires

1шт.

51

A37975

CLIP

CLIP - wires

1шт.

52

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

CLIP - wires

1шт.
