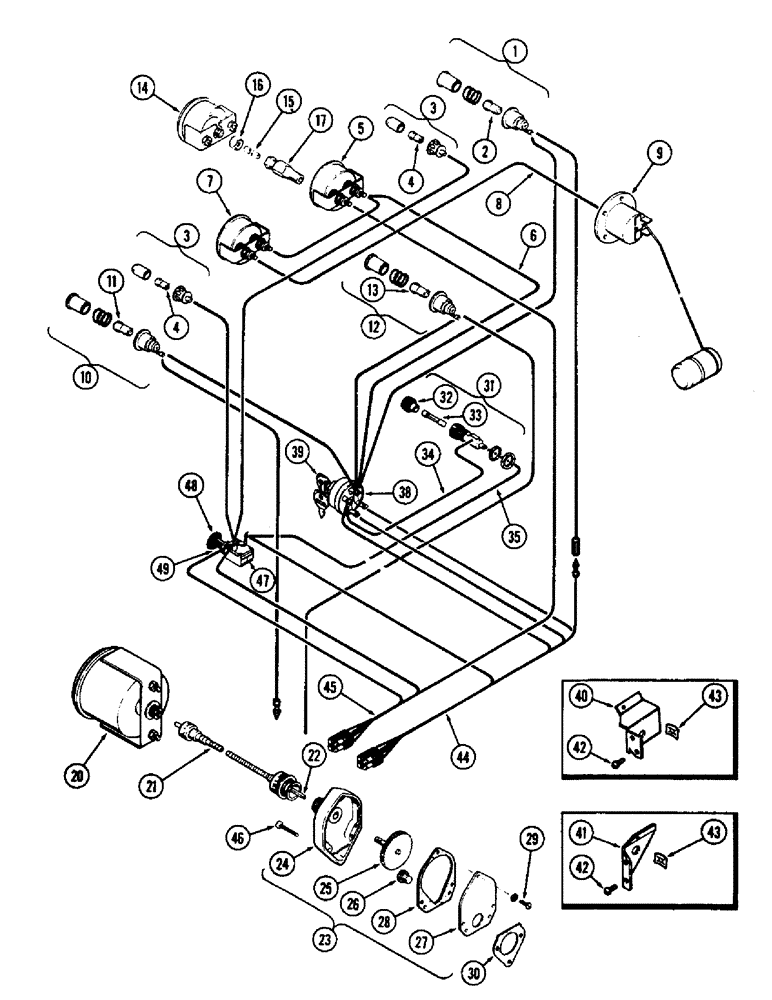

Запчасти Case 580 (059A) - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE, USED W/GENERATOR USED PRIOR TO TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY. - warning, generator, Inlcudes: Ref. 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Inlcudes: Ref. 4

2шт.

4

A22349

BULB

- panel lamp

1шт.

5

A24080

GAUGE

- engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to starting switch

1шт.

7

A24079

GAUGE ASSY.

GAUGE - fuel

1шт.

8

A11783

ELECTRICAL WIRE

WIRE - fuel gauge

1шт.

9

A23480

SENDER UNIT

SENDER - fuel level

1шт.

10

A24084

LAMP

ASSY. - warning, engine oil pressure, Inlcudes: Ref. 11

1шт.

11

A24354

BULB

- oil pressure lamp

1шт.

12

A32145

LAMP BASE

LAMP ASSY. - converter oil temperature, Inlcudes: Ref. 13

1шт.

13

A24354

BULB

- warning lamp

1шт.

14

A33982

ELECTRICAL GAUGE

GAUGE - converter oil pressure

1шт.

15

G46292

TUBE,0.125" OD x 28" L

- converter oil pressure

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge

1шт.

17

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - tube to valve

1шт.

20

A37767

TACHOMETER

- (W/4 speed transmission)

1шт.

20

A37768

TACHOMETER

- (W/8 speed transmission)

1шт.

21

G45357

CABLE

ASSY. - tachometer drive (50-1/2" long w/core) (Replaces G45121), Inlcudes: Ref. 22

1шт.

22

A24523

KIT

CABLE - replacement core (Cut to length req.)

1шт.

23

A36818

DRIVE

ASSY. - tachometer (On generator), Inlcudes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

25

A36522

GEAR WHEEL

GEAR - driven

1шт.

26

G46306

GEAR WHEEL

GEAR - drive

1шт.

27

G46307

COVER - housing

1шт.

28

G46882

GASKET

- cover

1шт.

29

187-1108

SCREW - cover (#8-32 x 3/8" pan hd.)

3шт.

30

G46878

GASKET

- tach., Serial Range: drive-generator

1шт.

31

A22874

HOLDER

ASSY. - fuse, Inlcudes: Ref. 32

1шт.

32

A10958

CAP

- fuse holder

1шт.

33

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

34

A22876

ELECTRICAL WIRE

WIRE - fuse to starting switch (8-1/2")

1шт.

35

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch (4")

1шт.

38

A24510

SWITCH

ASSY - starting, w/keys (Diesel) Inlcudes: Ref. 39

1шт.

39

A24509

KEY

- starting switch (Set of 2)

1шт.

40

A38631

BRACKET - starting switch mtg. (1st used trac. ser. no. 8349587)

1шт.

41

A37319

BRACKET - starting switch mtg. (Order A38631) (Used prior to trac. ser. no. 8349587)

1шт.

42

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- mtg. brkt. (#8 x 1/2" truss hd.)

3шт.

43

131-130

NUT

- (#8 Tinnerman)

3шт.

44

A24076

PLUG

HARNESS - wire (w/red plug)

1шт.

45

A21613

HARNESS

- wire (w/black plug)

1шт.

46

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- #8-32 x 1" pan hd. (Tach. drive to gen.)

1шт.

47

A39887

SWITCH

- lights (Replaced G13142), Inlcudes Ref 48 and 49

1шт.

48

G13141

KNOB

- light switch

1шт.

49

A39888

NUT

- (3/8" N.F. hex.)

2шт.
