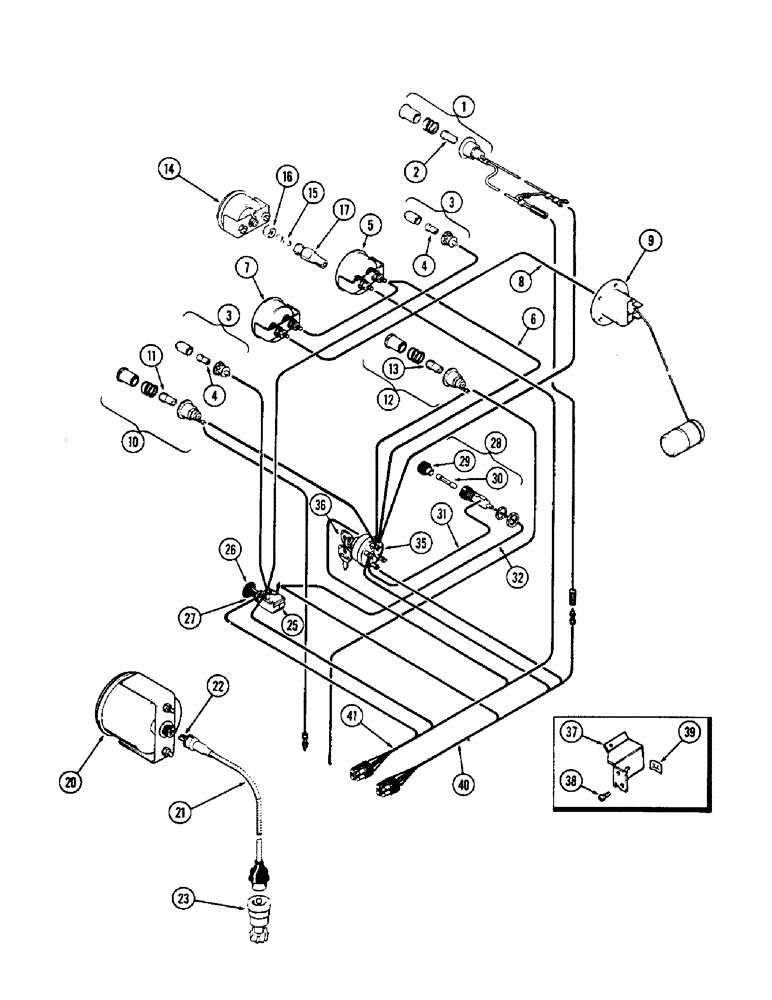

Запчасти Case 580 (058) - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE, USED W/AL TERNATOR 1ST USED TRAC. S/N. 8656686 (55) - ELECTRICAL SYSTEMS

1

A38816

LAMP

ASSY. - warning, alternator, Inlcudes: Ref. 2

1шт.

2

F21950

BULB - warning lamp

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Inlcudes: Ref. 4

2шт.

4

A22349

BULB

- panel lamp

1шт.

5

A24080

GAUGE

- engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to starting switch

1шт.

7

A24079

GAUGE ASSY.

GAUGE - fuel

1шт.

8

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sending unit

1шт.

9

A23480

SENDER UNIT

SENDER - fuel level

1шт.

10

A24084

LAMP

ASSY. - warning, engine oil pressure, Inlcudes: Ref. 11

1шт.

11

A24354

BULB

- oil pressure lamp

1шт.

12

A32145

LAMP BASE

LAMP ASSY. - converter oil temperature, Inlcudes: Ref. 13

1шт.

13

A24354

BULB

- oil pressure lamp

1шт.

14

A33982

ELECTRICAL GAUGE

GAUGE - converter oil pressure

1шт.

15

G46292

TUBE,0.125" OD x 28" L

- converter oil pressure

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge

1шт.

17

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - tube to valve

1шт.

20

A37767

TACHOMETER

- (w/4 speed transmission)

1шт.

20

A37768

TACHOMETER

- (w/8 speed transmission)

1шт.

21

A38817

CABLE

ASSY. - tachometer drive, Inlcudes: Ref. 22

1шт.

22

A24523

KIT

CABLE - replacement core (Cut to length req.)

1шт.

23

A38942

DRIVE ASSY.

- tachometer (In block)

1шт.

25

A39887

SWITCH

- lights (Replaced G13142), Inlcudes: Ref. 26 and 27

1шт.

26

G13141

KNOB

- light switch

1шт.

27

A39888

NUT

- (3/8" N.F. hex.)

2шт.

28

A22874

HOLDER

ASSY. - fuse, Inlcudes: Ref. 29

1шт.

29

A10958

CAP

- fuse holder

1шт.

30

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

31

A22876

ELECTRICAL WIRE

WIRE - fuse to starting switch

1шт.

32

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

35

A24510

SWITCH

ASSY - starting, w/keys (Diesel) Inlcudes: Ref 36

1шт.

36

A24509

KEY

- starting switch (Set of 2)

1шт.

37

A38631

BRACKET - starting switch mounting

1шт.

38

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- mtg. brkt. (#8 x 1/2" truss hd.)

3шт.

39

131-130

NUT

- (#8 Tinnerman)

3шт.

40

A24076

PLUG

HARNESS ASSY. - (w/red plug)

1шт.

41

A21613

HARNESS

ASSY. - (w/black plug)

1шт.
