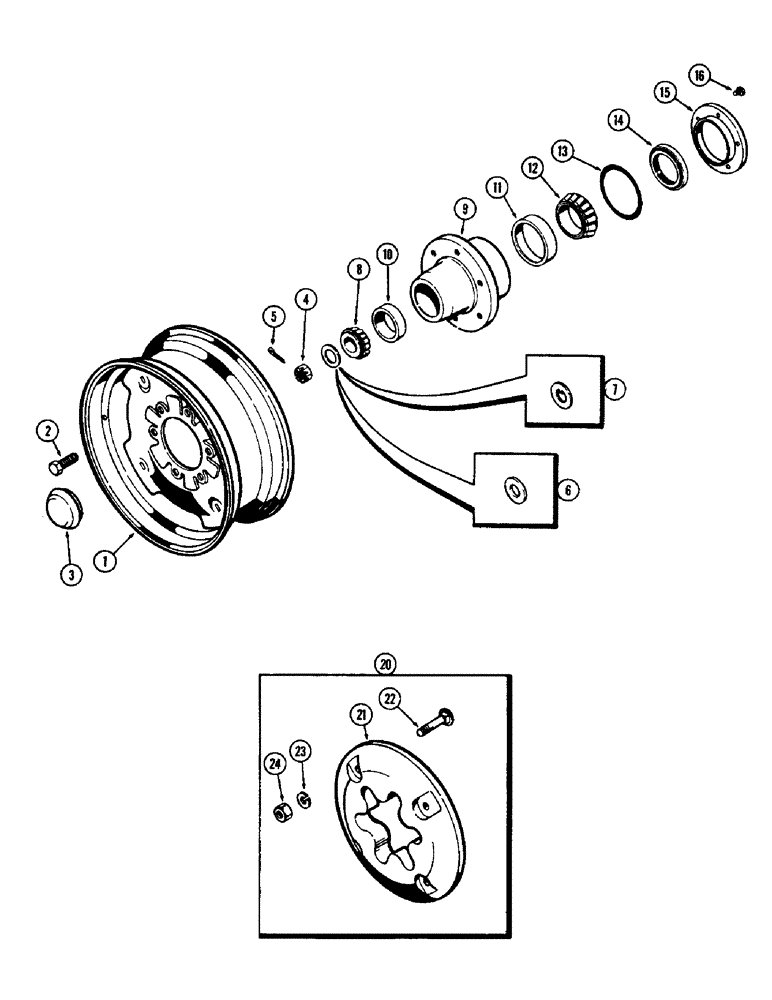

Запчасти Case 580 (121G) - FRONT WHEELS, USED W/1/2"-6 BOLT HUB, USED PRIOR TO TRAC. S/N. 8319561, FRONT WHEEL WEIGHTS (44) - WHEELS

1

A36017

WHEEL

- (Takes 6.50 or 7.50 x 16 tire) (Replaces A38404)

2шт.

2

A30064

BOLT

- 1/2 x 7/8" N.F. hex. special

12шт.

3

A29425

CAP

CAB - hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. sltd.

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- 1-9/64 x 2 x 3/16" (Used on spindle w/o key way)

2шт.

7

A26789

BEARING WASHER

WASHER - 1-9/64 x 2 x 3/16" tab (Used on spindle w/key way)

2шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer-bearing

2шт.

9

G14042

X

HUB ASSY. - front wheel (Order 1-A38187 & 6-B18264), Includes: Ref. 10 and 11

2шт.

10

A27631

CUP

- outer bearing

1шт.

11

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

1шт.

12

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

13

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - 3-1/4 x 3-1/2 x 1/8"

2шт.

14

A27139

SEAL

- oil, 2-15/32 x 3-7/32 x 1/2"

2шт.

15

A27140

RETAINER

- oil seal

2шт.

16

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" N.C. flat hd.

10шт.

20

G12050M

WEIGHT ATTACHMENT - front wheel (Mach. item) (For use with 6 bolt wheels only), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - wheel, front

2шт.

22

11-848

BOLT - 1/2 x 2" N.C. carr., front wheel weights

8шт.

23

92-8

LOCK WASHER,1/2"

front wheel weights 1/2"

8шт.

24

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., front wheels weights

8шт.
