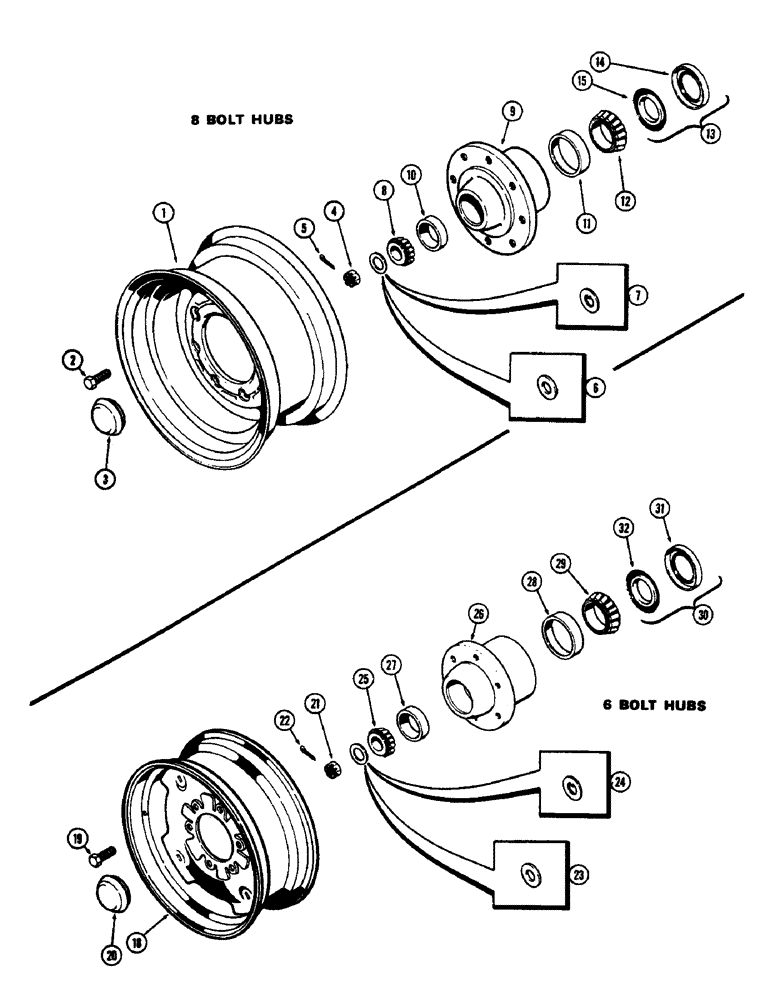

Запчасти Case 580 (121E) - FRONT WHEELS, USED W/5/8"-8 BOLT HUB, 1ST USED TRAC. S/N. 8673410, USED W/9/16"-6 BOLT HUB, USED TRA (44) - WHEELS

1

A39117

WHEEL

- 6" rim (Takes 7.50 x 16 tire) 1-13/16" offset

2шт.

1

A39118

RIM

WHEEL - 8" rim (Takes 11L x 16 tire) 1/4" offset

2шт.

2

A62567

WHEEL BOLT

BOLT - 5/8 x 1-3/8" N.F. hex. special

16шт.

3

A29425

CAP

CAB - hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. sltd.

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- 1-9/64 x 2 x 3/16" (Used on spindle w/o key way) (See Figure 122)

2шт.

7

A26789

BEARING WASHER

WASHER - 1-9/64 x 2 x 3/16" tab (Used on spindle w/key way) (See Figure 122)

2шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

9

A51157

HUB

- front wheel (Replaces A39144)

2шт.

10

A27631

CUP

CAP - outer bearing

2шт.

11

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

2шт.

12

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

13

A57250

OIL SEAL

KIT - front wheel, used prior to trac. ser. no. 832528914 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

18

A38404

RIM

WHEEL - (Takes 6.50 or 7.50 x 16 tire) (Replaces A36017), used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

2шт.

19

B18264

WHEEL BOLT

BOLT - 9/16 x 1-5/32" N.F. hex. special, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

12шт.

20

A29425

CAP

CAB - hub, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

2шт.

21

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. sltd., used w/9/16"-6 bolt hub used trac. ser. no. 8319561 to 8673410

2шт.

22

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used w/9/16"-6 bolt hub used trac. S/N 8319561 to 8673410 3/16" x 1 3/4"

2шт.

23

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- 1-9/64 x 2 x 3/16" (Used on spindle w/o keyway) (See Figure 122), used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

2шт.

24

A26789

BEARING WASHER

WASHER - 1-9/64 x 2 x 3/16" tab (Used on spindle w/keyway) (See Figure 122), used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

2шт.

25

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, used w/9/16"-6 bolt hub used trac. ser. no. 8319561 to 8673410

2шт.

26

A38187

HUB

ASSY. - front wheel, used w/9/16"-6 bolt used trac. ser. no., Serial Range: 8319561-8673410

2шт.

27

A27631

CUP

- outer bearing, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

1шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, used w/9/16"-6 bolt hub used trac. ser. no. 8319561 to 8673410

1шт.

29

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, used w/9/16"-6 bolt hub used trac. ser. no. 8319561 to 8673410

2шт.

30

A57250

OIL SEAL

KIT - front wheel, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL - inner half, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer half, used w/9/16"-6 bolt hub used trac. ser. no., Serial Range: 8319561-8673410

1шт.
