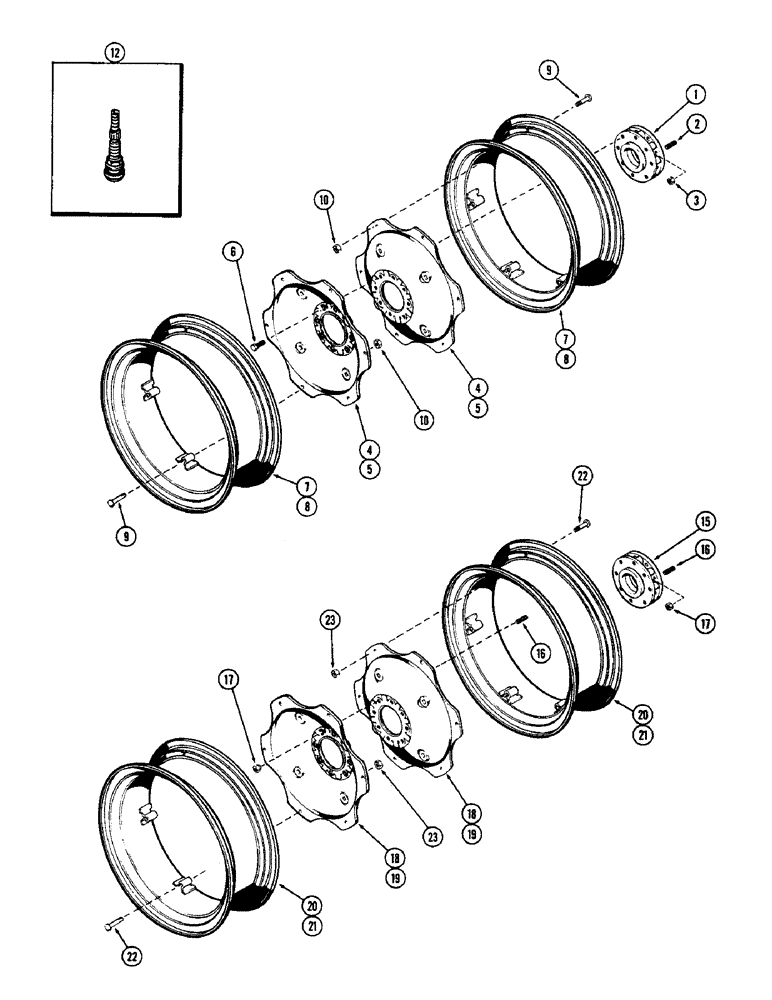

Запчасти Case 580 (121C) - DUAL REAR WHEEL, 1ST USED TRAC. SER. NO. 8325289, USED PRIOR TO TRAC. S/N. 8325289 (44) - WHEELS

1

A38211

ADAPTER

- dual wheel

2шт.

2

A38210

STUD

- adapter to axle (5/8" N.F. x 2-3/8")

16шт.

3

25-1710

NUT,5/8"-18, G5, Hvy

- adapter, 5/8" N.F. hex.

16шт.

4

G46240

DISC

- wheel, 24" w/demountable rim (Used utility & drawbar models)

4шт.

5

G12001

DISC

- wheel, 28" w/demountable rim (Used drawbar models)

4шт.

6

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to adapter (5/8" N.F. x 1" spec.)

16шт.

7

G45205

RIM

- takes 12.4 x 24 tire (Used utility & drawbar models)

4шт.

8

G12002

RIM

- take 12.4 x 28 tire (Used drawbar models)

4шт.

9

G10701

BOLT

- rim (5/8 x 2-11/16" N.F. spec.)

24шт.

10

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex.)

24шт.

12

A20058

VALVE STEM

- For tubeless tubes

4шт.

15

A36528

ADAPTER - dual wheel, used prior to trac. ser. no. 8325289

2шт.

16

A36527

STUD - wheel & adapter (9/16 x 5/8 N.F. x 2-3/8"), used prior to trac. ser. no. 8325289

32шт.

17

F62206

NUT

- adapter & wheel stud (5/8" N.F. spec.), used prior to trac. ser. no. 8325289

32шт.

18

G46240

DISC

- wheel, 24" demountable rim, used prior to trac. ser. no. 8325289

4шт.

19

G12001

DISC

- wheel, 28" demountable rim, used prior to trac. ser. no. 8325289

4шт.

20

G45205

RIM

- demountable (12.4 x 24" tire), used prior to trac. ser. no. 8325289

4шт.

21

G12002

RIM

- demountable (12.4 x 28" tire), used prior to trac. ser. no. 8325289

4шт.

22

G10701

BOLT

- rim (5/8" x 2-11/16" N.F. spec.), used prior to trac. ser. no. 8325289

24шт.

23

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex.), used prior to trac. ser. no. 8325289

24шт.
