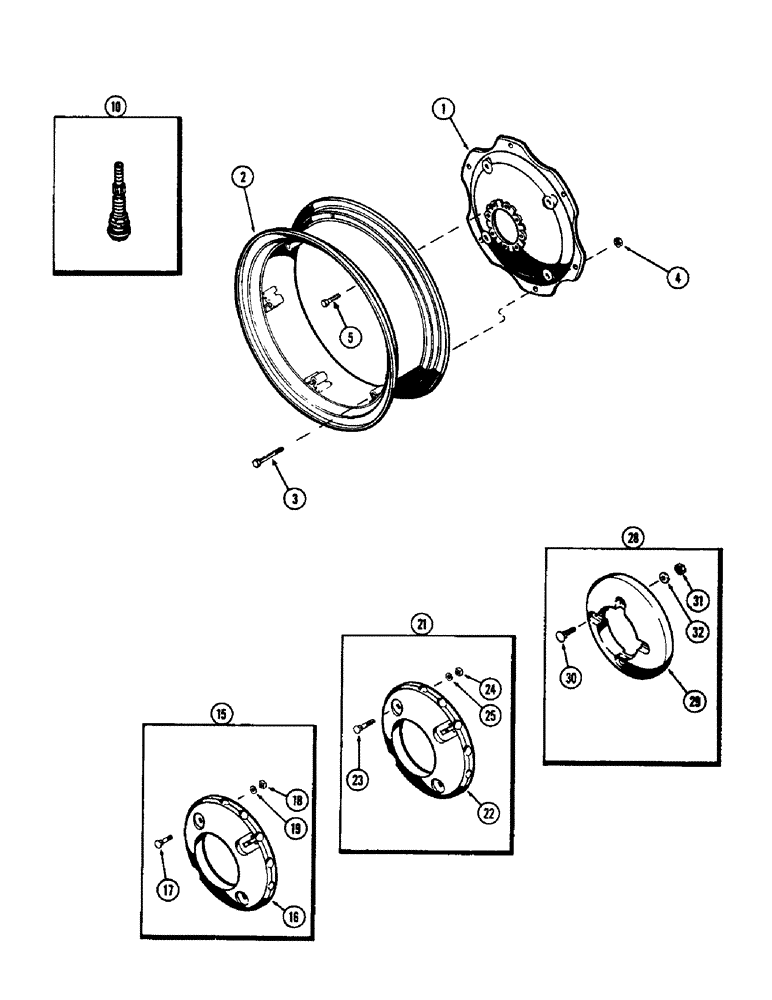

Запчасти Case 580 (121A) - 28" REAR WHEELS, REAR WHEEL WEIGHTS (44) - WHEELS

1

G12001

DISC

- wheel, demountable rim

2шт.

2

G12002

RIM

- takes 12.4 x 28 tire (Used drawbar models)

2шт.

2

G45710

RIM

- takes 13.6 x 28 or 14.9 x 28 tire (Used drawbar models)

2шт.

2

A38637

RIM

- takes 16.9 x 28 tire (Used drawbar & utility models)

2шт.

3

G10701

BOLT

- rim to disc (5/8 x 2-11/16" N.F. spec.)

12шт.

4

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex.)

12шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to axle (5/8" N.F. spec.) (1st used trac. ser. no. 8325289) (Used w/A38209 axle)

16шт.

5

B18264

WHEEL BOLT

BOLT - wheel to axle (9/16" N.F. spec.) (Used w/A37221 axle)

16шт.

10

A20058

VALVE STEM

- Rim (For tubeless tires)

2шт.

15

G12018

WEIGHT SET - 1st & 2nd set for 28" wheels (Mach. item), rear wheel

1шт.

16

NSS

NOT SOLD SEPARAT

WEIGHT - (73 lb. ea.), rear wheel

2шт.

17

11-1052

BOLT (MACHINE)

BOLT - 5/8" x 3-1/4" N.C. rd. hd. sq. nk., rear wheel weights

4шт.

18

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

21

G12609

WEIGHT SET - 24" wheel (1st set) (Mach. item), rear wheel

1шт.

22

NSS

NOT SOLD SEPARAT

WEIGHT - (78 lb. ea.), rear wheel

2шт.

23

11-1036

BOLT (MACHINE)

BOLT - 5/8 x 2-1/4" N.C. rd. hd. sq. nk., rear wheel weights

4шт.

24

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

28

G12610M

WEIGHT SET - 24" wheel (Added set) (Mach. item), rear wheel

1шт.

29

NSS

NOT SOLD SEPARAT

WEIGHT - (78 lb. ea.), rear wheel

2шт.

30

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. rd. hd. sq. nk., rear wheel weights

4шт.

31

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.
