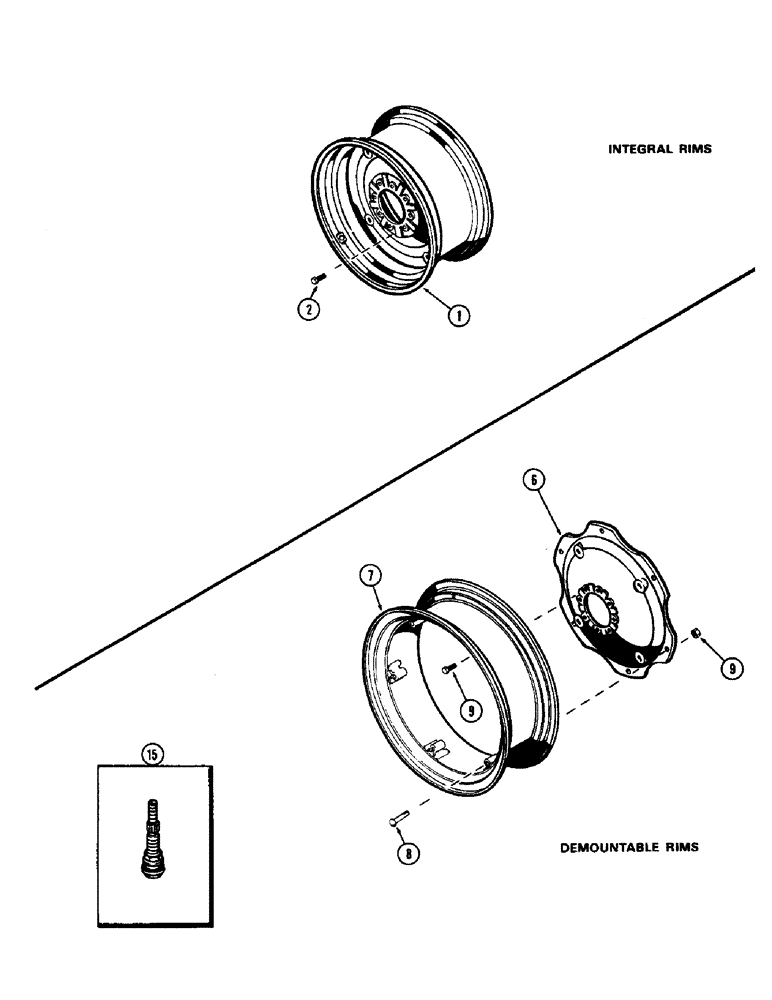

Запчасти Case 580 (120) - 24" REAR WHEELS, INTEGRAL RIMS, DEMOUNTABLE RIMS (44) - WHEELS

1

A39126

WHEEL - takes 16.9 x 24 or 17.5 x 24 tire (Must be used w/backhoe) (1-7/32" offset) (Used with drawbar, utility & harlo models)

2шт.

1

A38403

RIM

WHEEL - takes 14.9 x 24 or 16.9 x 24 tire (Must be used w/backhoe) (7/32" offset) (Used with drawbar, utility & harlo models)

2шт.

1

A35906

WHEEL

- takes 14.9 x 24 or 16.9 x 24 tire (Used with drawbar & utility models w/out backhoe)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel lug (5/8" N.F. special) (1st used trac. ser. no. 8325289) (Used w/A38209 axle)

16шт.

2

B18264

WHEEL BOLT

BOLT - wheel lug (9/16" N.F. special) (Used prior to trac. ser. no. 8325289) (Used w/A37221 axle)

16шт.

6

G46240

DISC

- wheel, demountable rims

2шт.

7

G45205

RIM

- takes 12.4 x 24 tire w/tube (Used w/utility & drawbar models), demountable

2шт.

7

A37091

RIM

- takes 16.9 x 24 or 17.5 x 24 tubeless tire (Used with utility & drawbar models), demountable

2шт.

7

G45204

RIM

- takes 14.9 x 24 or 16.9 x 24 tire w/tube (Used with utility & drawbar models), demountable

2шт.

8

G10701

BOLT

- rim to disc (5/8 x 2-11/16" N.F. spec.), demountable rims

12шт.

9

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex.), demountable rims

12шт.

10

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to axle (5/8" N.F. spec.) (1st used trac. ser. no. 8325289) (Used w/A38209 axle), demountable rims

16шт.

10

B18264

WHEEL BOLT

BOLT - wheel to axle (9/16" N.F. spec.) (Used prior to trac. ser. no. 8325289) (Used w/A37221 axle), demountable rims

16шт.

15

A20058

VALVE STEM

- Rim (For tubeless tires), demountable rims

2шт.
