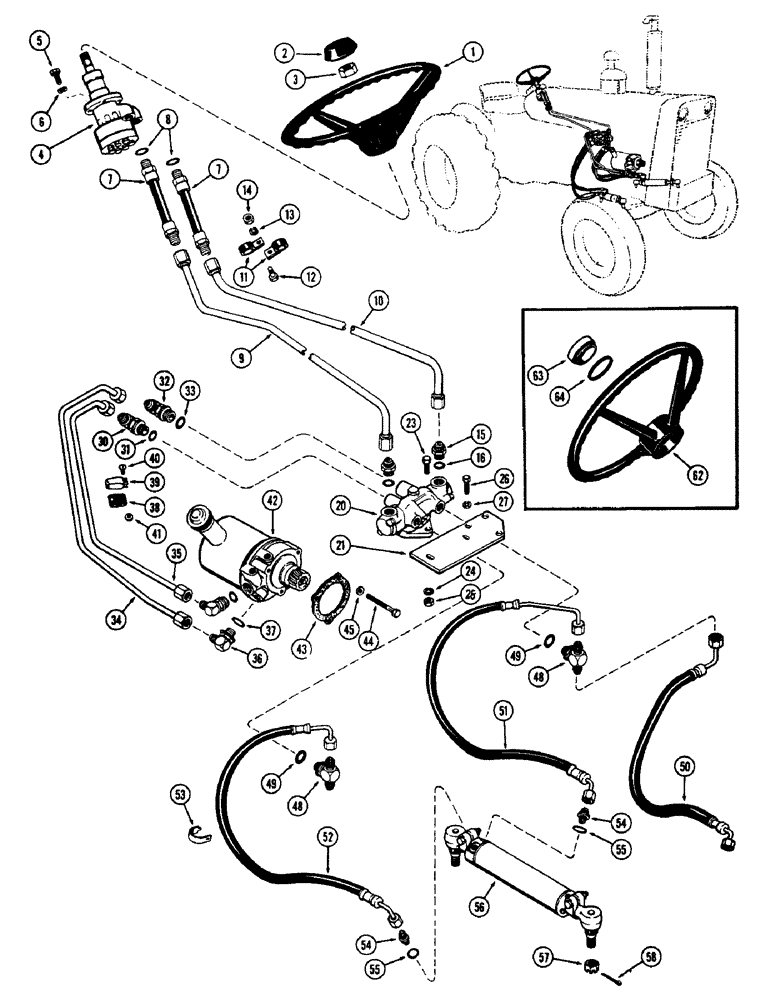

Запчасти Case 580 (126) - STEERING SYSTEM, HYDROSTATIC STEERING, 1ST USED TRAC. S/N. 8675938 (41) - STEERING

1

A37261

X

WHEEL - steering (15" dia.) (Order 1-A61007, 1-A62210 & 1-A29884)

1шт.

2

L15282

CAP

MEDALLION - used w/A37261 str. wheel only

1шт.

3

A14567

JAM NUT

- steering wheel retaining

1шт.

4

A35579

PUMP

ASSY. - (Repairs on Figure 128)

1шт.

5

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1-1/2" N.C. hex

4шт.

6

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

4шт.

7

A39108

HOSE

ASSY. - pump to tubes (9-1/2" long), Inlcudes: Ref. 8

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

9

A39106

TUBE

- pump to valve, right hand

1шт.

10

A39107

TUBE

- pump to valve, left hand

1шт.

11

49838

CLAMP

- pump tubes

2шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - tube to valve

2шт.

20

A37980

VALVE

ASSY. - control (Repairs on Figure 128)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

21

A35581

SPLIT PIN/SAFETY PIN

PLATE - valve mounting

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 x 1-1/4" N.C. hex.

3шт.

24

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

30

A35613

ELBOW

ASSY. - pressure tube to valve, Inlcudes: Ref. 31

1шт.

31

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

A37080

ELBOW

ASSY. - return tube to valve, Inlcudes : Ref. 33

1шт.

34

A35731

TUBE - return, pump to valve (Gas)

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

34

A35733

TUBE

- return, pump to valve (Diesel)

1шт.

35

A35730

TUBE ASSY.

TUBE - pressure, pump to valve (Gas)

1шт.

35

A35732

TUBE

- pressure, pump to valve (Diesel)

1шт.

36

A37080

ELBOW

ASSY. -, Serial Range: tube-pump

2шт.

38

G46835

GROMMET

- rubber, tube clamp

1шт.

39

G46194

CLAMP

- tube

1шт.

40

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #10-32 x 3/4" Phillips hd.

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

1шт.

42

A36559

PUMP

ASSY. - power (Repairs on Figure 130)

1шт.

43

A30042

GASKET

- pump

1шт.

44

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

45

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

48

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose to valve

2шт.

49

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

A35615

HOSE

- valve to L.H. cylinder (32-1/2" long)

2шт.

51

A35614

HOSE

- valve to R.H. cyl., inner port (39-5/8" long)

1шт.

52

A35616

HOSE

- valve to R.H. cyl. outer port (36-1/4" long)

1шт.

53

A35209

CLAMP

- hose

2шт.

54

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY, hose to cylinder

4шт.

55

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

56

A37859

CYLINDER

ASSY. - steering (Repairs on Figure 131A)

2шт.

57

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F. hex.

4шт.

58

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

62

A61007

RIM

WHEEL - steering (15-1/4" dia.)

1шт.

63

A62210

PLUG

MEDALLION - used w/A61007 str. wheel only)

1шт.

64

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - medallion (2-3/8 x 2-5/8 x 1/8")

1шт.
