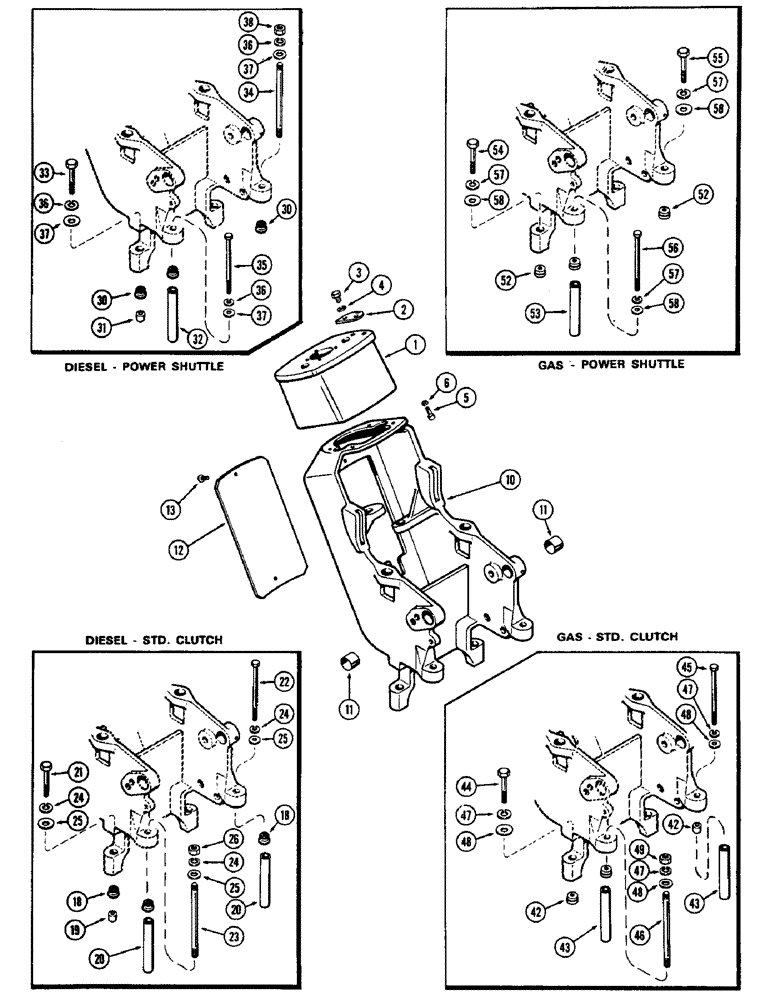

Запчасти Case 580 (124) - STEERING COLUMN AND SUPPORT, HYDROSTATIC STEERING, SUPPORT HARDWARE, DIESEL - STANDARD CLUTCH (41) - STEERING

1

A38297

COLUMN - steering (Replaces A37260)

1шт.

2

A38298

LARGE PLATE

PLATE - shuttle lock

1шт.

3

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

10

A39380

SUPPORT

ASSY. - steering, w/5-1/2" cover opening (1st used trac. ser. no. 8683814), Inlcudes: Ref. 11

1шт.

10

A37740

SUPPORT ASSY. - steering, w/5" cover opening (Used prior to trac. ser. no. 8683814), Inlcudes: Ref. 11

1шт.

11

A37530

BUSHING

- cross shaft, brake pedal

2шт.

12

A39384

COVER - (6-3/4" wide) (Used w/A39380 support)

1шт.

12

A37259

COVER ASSY

COVER - (5-13/16" wide) (Used w/A37740 support)

1шт.

13

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" truss head

2шт.

18

G45343

COMPOSITE RING

BUSHING - mounting (w/rubber insert), support hardware diesel - standard clucth

4шт.

19

A37418

SPACER

- support, rear (1/2" high), support hardware diesel - standard clucth

2шт.

20

G49624

SPACER

- support, front (4-7/8" high), support hardware diesel - standard clucth

2шт.

21

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear (3/8 x 2-3/4" N.C. hex.), support hardware diesel - standard clucth

2шт.

22

15-6108

BOLT - left hand front (3/8 x 6-3/4" N.C. hex.), support hardware diesel - standard clucth

1шт.

23

A38169

STUD

- right hand front (3/8" N.C. x 7-3/16"), support hardware diesel - standard clucth

1шт.

24

92-6

LOCK WASHER,3/8"

WASHER - , lock, support hardware diesel - standard clucth 3/8"

4шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", support hardware diesel - standard clutch

4шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

30

G45343

COMPOSITE RING

BUSHING - mounting (w/rubber insert), diesel - power shuttle

4шт.

31

A37418

SPACER

- support, rear (1/2" high), diesel - power shuttle

2шт.

32

A38488

SPACER

- support, right hand front (3-7/8" high), diesel - power shuttle

1шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear (3/8 x 2-3/4" N.C. hex.), diesel - power shuttle

2шт.

34

A33997

STUD

- left hand front (3/8" N.C. x 3-9/16"), diesel - power shuttle

1шт.

35

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

RH front, diesel - power shuttle Hex, 3/8"-16 x 5 3/4", G5

1шт.

36

92-6

LOCK WASHER,3/8"

WASHER - . lock, diesel - power shuttle 3/8"

4шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", diesel - power shuttle

4шт.

38

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., diesel - power shuttle

1шт.

42

A35627

BUSHING

- mounting (Flanged steel), gas - standard clutch

4шт.

43

G49624

SPACER

- front (4-7/8" high), gas - standard clutch

2шт.

44

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear (3/8 x 2-3/4" N.C. hex.), gas - standard clutch

2шт.

45

15-6108

BOLT - left hand front (3/8 x 6-3/4" N.C. hex.), gas - standard clutch

1шт.

46

A38169

STUD

- right hand front (3/8" N.C. x 7-3/16"), gas - standard clutch

1шт.

47

92-6

LOCK WASHER,3/8"

WASHER - , lock, gas - standard clutch 3/8"

4шт.

48

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", gas - standard clutch

4шт.

49

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., gas - standard clutch

1шт.

52

A35627

BUSHING

- mounting (Flanged, steel), gas - power shuttle

4шт.

53

A38488

SPACER

- right hand front (3-7/8" high), gas - power shuttle

1шт.

54

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear (3/8 x 2-3/4" N.C. hex.), gas - power shuttle

2шт.

55

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- left hand front (3/8 x 3" N.C. hex.), gas - power shuttle

1шт.

56

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

RH front, gas - power shuttle Hex, 3/8"-16 x 5 3/4", G5

1шт.

57

92-6

LOCK WASHER,3/8"

WASHER - , lock, gas - power shuttle 3/8"

4шт.

58

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", gas - power shuttle

4шт.
