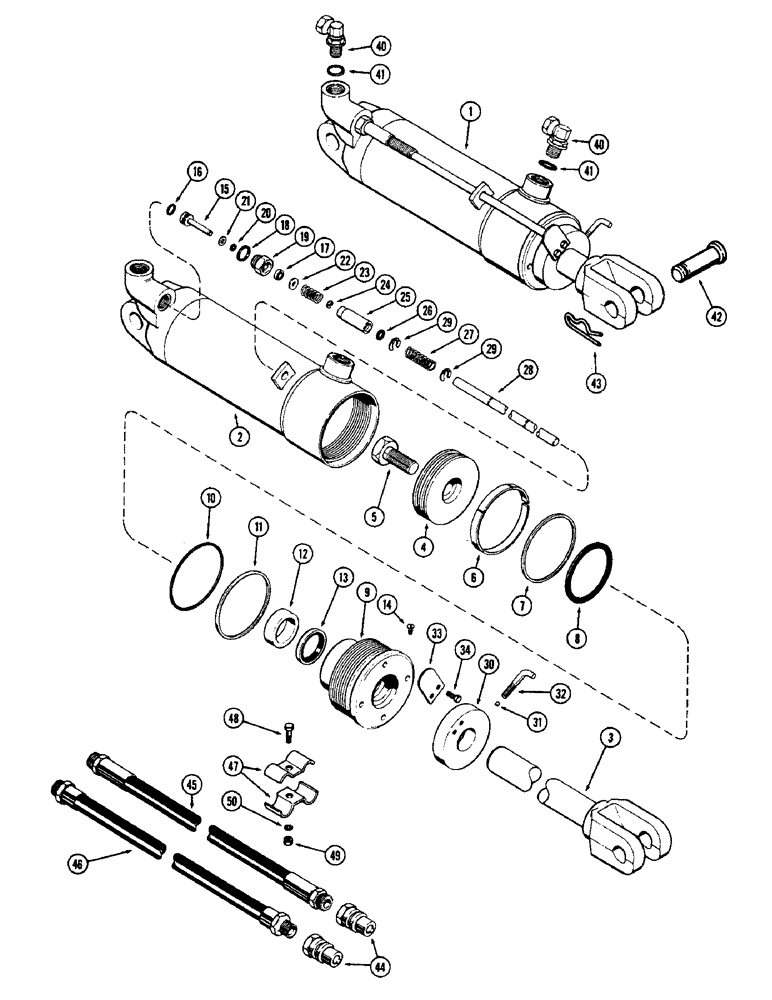

Запчасти Case 580 (155E) - 3-1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP ROCK ISLAND CYLINDER (35) - HYDRAULIC SYSTEMS

1

G32083

CYLINDER

ASSY. - hydraulic, Inlcudes: Ref. 2 - 34

1шт.

2

G32084

TUBE,15.22" L

- cylinder

1шт.

3

G32086

ROD

- piston

1шт.

4

G32093

JACK PISTON

PISTON - cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G32090

RING

- wear, piston (Nylon)

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

7

G32091

SEALING RING

RING - seal, piston (Teflon)

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

8

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - 2-3/4 x 3 x 1/8"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

9

G32426

GLAND

- packing, piston rod

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - 3-1/4 x 3-1/2 x 1/8"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

11

L18944

RING

- back-up

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

12

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, 1-1/4 x 1-3/4 x 13/32"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

13

D95141

WIPER SEAL

SCRAPER - piston rod, 1-1/4 x 1-3/4 x 3/8"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #6-32 x 1/4" rd. hd.

1шт.

15

G31943

PLUNGER

- valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - 27/64 x 5/8 x 3/32"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

17

G31932

WIPER SEAL

SEAL - wiper, 3/16 x 1/2 x 1/8"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

19

G31933

GLAND

ASSY. - valve, Inlcudes: Ref. 20

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 11/64 x 3/8 x 7/64"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

21

G31948

WASHER

- 13/64 x 13/32 x 1/16"

1шт.

22

G31929

WASHER

- spring backing, 7/32 x 5/8 x 1/16"

1шт.

23

G31980

SPRING

- plunger return (1" free length)

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

"O" RING - 7/16 x 9/16 x 1/16"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.

27

G31934

SPRING

- rod return (2-5/16" free length)

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

ROD - stop collar retaining

2шт.

30

G32425

COLLAR

- stop

1шт.

31

G32076

PLUG

- locking

1шт.

32

G32077

BOLT

- hook

1шт.

33

G32075

PLATE

- stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

G32094

KIT

- cylinder repair, Includes Refs. 6 - 8, 10 - 13, 16 - 18, 20 and 26

1шт.

40

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - adapter, 90 degrees, Inlcudes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 15/16 x 3/32"

1шт.

42

A27347

PIN

- yoke

2шт.

43

A29054

HAIR PIN COTTER

- cotter (Internal hair)

2шт.

44

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - breakaway (Repairs page 152)

2шт.

45

A20816

HOSE

- socket to cylinder (106" long)

1шт.

46

A20817

HOSE

- socket to cylinder (118" long)

1шт.

47

A27440

CLAMP

- hose

2шт.

48

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

50

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

For hose adapters see Figure 155A

1шт.

Part of repair kit P/N G32094

1шт.
