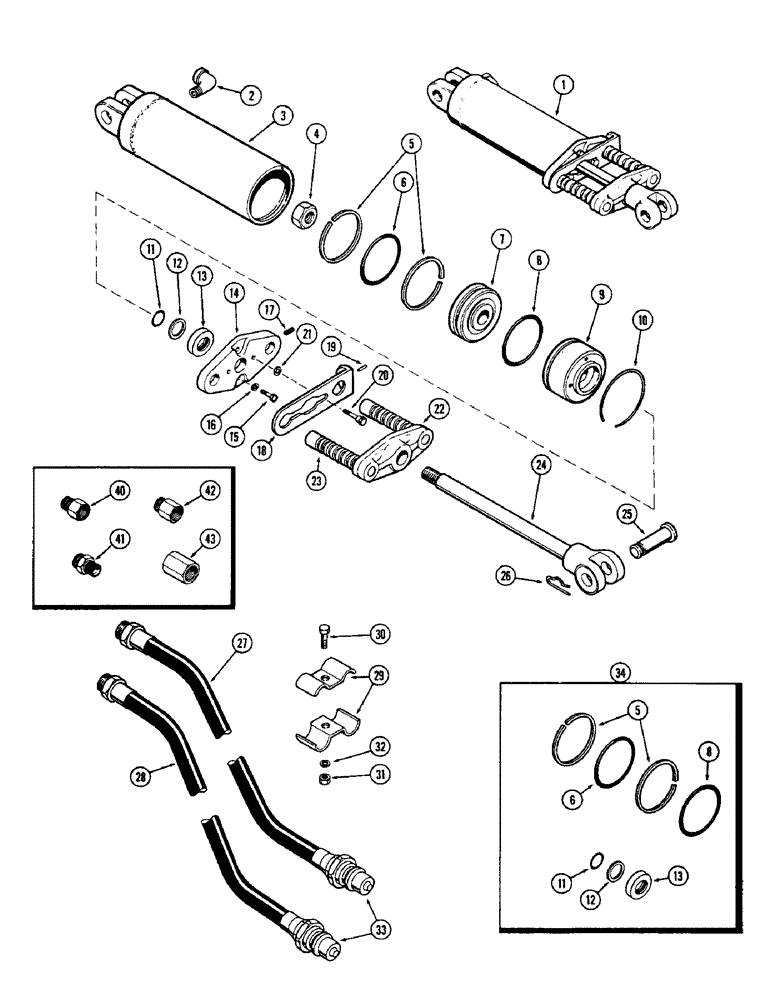

Запчасти Case 580 (155A) - 3-1/4" X 8" REMOTE HYDRAULIC CYLINDER, W/MECHANICAL LIMIT STOP, HYDRAULIC HOSE ADAPTERS (35) - HYDRAULIC SYSTEMS

1

A23557

CYLINDER ASSY. - remote hydraulic, Inlcudes: Ref. 2 - 24

1шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hose, 1/2" P.T. 90 degrees

2шт.

3

NSS

NOT SOLD SEPARAT

BODY & HEAD (Order A23557)

1шт.

4

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8" N.F. hex.)

1шт.

5

A23562

OIL SEAL

RING - back-up, piston (See ref. 34)

2шт.

Part of cylinder repair kit P/N A40758

1шт.

6

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston (2-7/8 x 3-1/4 x 3/16") (See ref. 34)

1шт.

Part of cylinder repair kit P/N A40758

1шт.

7

A23560

PISTON - cylinder

1шт.

8

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O" RING - head (3 x 3-1/4 x 1/8") (See ref. 34)

1шт.

Part of cylinder repair kit P/N A40758

1шт.

9

A23561

HEAD - cylinder

1шт.

10

A31158

RING, SNAP

RING - snap, head

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - head, inner (1-1/8 x 1-3/8 x 1/8") (See ref. 34)

1шт.

Part of cylinder repair kit P/N A40758

1шт.

12

A23553

RING

- back-up, head "O" rings (See ref. 34)

1шт.

Part of cylinder repair kit P/N A40758

1шт.

13

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod (See ref. 34)

1шт.

Part of cylinder repair kit P/N A40758

1шт.

14

A27345

GUIDE - limit stop pin

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex.

2шт.

16

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

17

A27421

SPRING

- limit stop latch

1шт.

18

A31158

RING, SNAP

LATCH ASSY. - limit stop, Inlcudes: Ref. 19

1шт.

19

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

20

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch

2шт.

21

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

22

A31154

STOP ASSY. - piston limit, Inlcudes: Ref. 23

1шт.

23

A31155

PIN - stop

2шт.

24

A30972

ROD - piston

1шт.

25

A27347

PIN

- yoke

2шт.

26

A29054

HAIR PIN COTTER

- cotter, hair pin

2шт.

27

A20816

HOSE

- socket to cylinder (106")

1шт.

28

A20817

HOSE

- socket to cylinder (118")

1шт.

29

A27440

CLAMP

- hose

2шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

31

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

32

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

1шт.

33

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (Repairs Figure 152)

2шт.

34

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

KIT - cylinder repair, Includes Refs. 5, 6, 8, 11, 12 and 13

1шт.

40

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- 7/8"-18 female to 1/2" P.T. male, hydraulic hose

1шт.

41

A27359

ADAPTER

- 7/8"-18 male to 1/2" P.T. male, hydraulic hose

1шт.

42

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- 7/8"-18 male to 1/2" P.T. female, hydraulic hose

1шт.

43

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 7/8"-18 female to 1/2" P.T. female, hydraulic hose

1шт.
