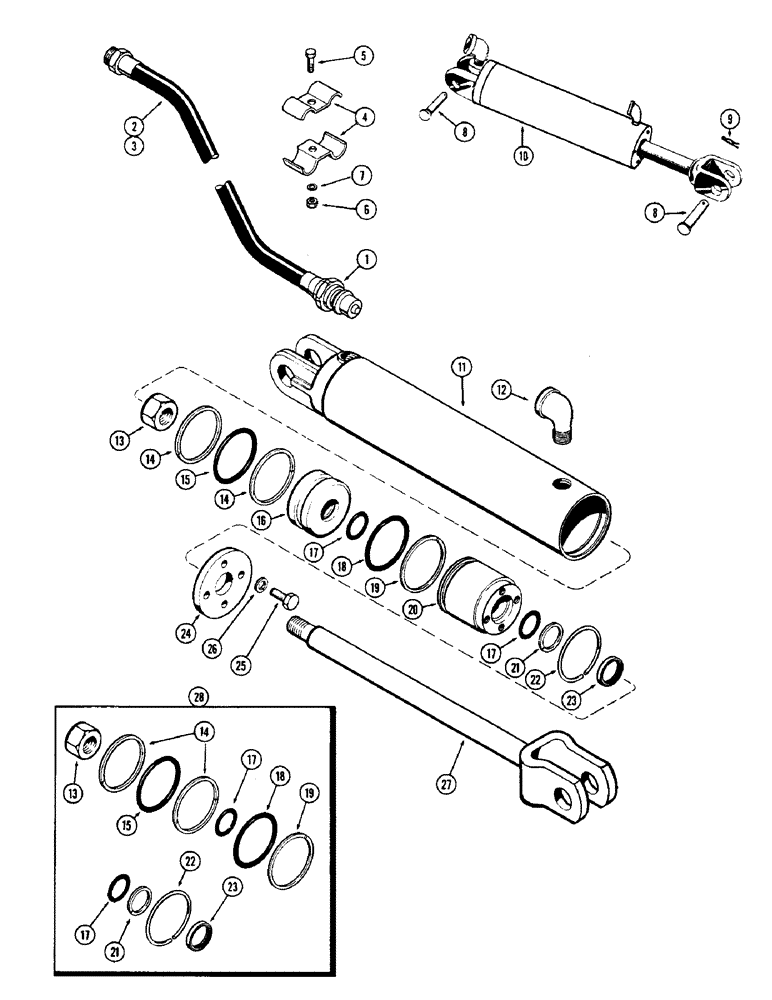

Запчасти Case 580 (154) - 2-1/2" X 8" REMOTE HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (Repairs Figure 152)

2шт.

2

A20816

HOSE

- tractor to cylinder (106")

1шт.

3

A20817

HOSE

- tractor to coupling (118")

1шт.

4

A27440

CLAMP

- hose

2шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

7

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

1шт.

8

A27347

PIN

- coupling, cylinder

2шт.

9

A29054

HAIR PIN COTTER

- cotter, coupling pin (Internal hair)

2шт.

10

A35900

CYLINDER ASSY. - remote hydraulic, Inlcudes: Ref. 11 - 27

1шт.

11

A35893

CYLINDER

TUBE ASSY.

1шт.

12

221-1561

ELBOW UNION

ELBOW - reducing, 1/2 x 3/8"

2шт.

13

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock, piston (3/4" N.F.) (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

14

A35810

RING

- back-up, piston (See ref. 28)

2шт.

Part of repair kit P/N A24671

1шт.

15

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - piston (2-1/8 x 2-1/2 x 3/16") (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

16

A35897

PISTON ASSY.

PISTON

1шт.

17

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - piston rod (1 x 1-1/4 x 1/8") (See ref. 28)

2шт.

Part of repair kit P/N A24671

1шт.

18

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - inner head (2-1/4 x 2-1/2 x 1/8") (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

19

A35901

RING

- back-up (2-1/2" O.D.) (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

20

A35895

HEAD - inner

1шт.

21

A35899

RING

- back-up (1-1/4" O.D.) (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

22

A35898

RING, SNAP

RING - snap, head to cylinder (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

23

A35902

OIL SEAL

SEAL - oil, piston rod (See ref. 28)

1шт.

Part of repair kit P/N A24671

1шт.

24

A35896

PLATE - end

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

26

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

4шт.

27

A35894

ROD - piston

1шт.

28

A24671

KIT

- repair, Includes Refs. 13, 14, 15, 17, 18, 19, 21, 22 and 23

1шт.
