Запчасти Case 580 (150) - REMOTE HYDRAULIC CONTROLS, POWER SHUTTLE (35) - HYDRAULIC SYSTEMS

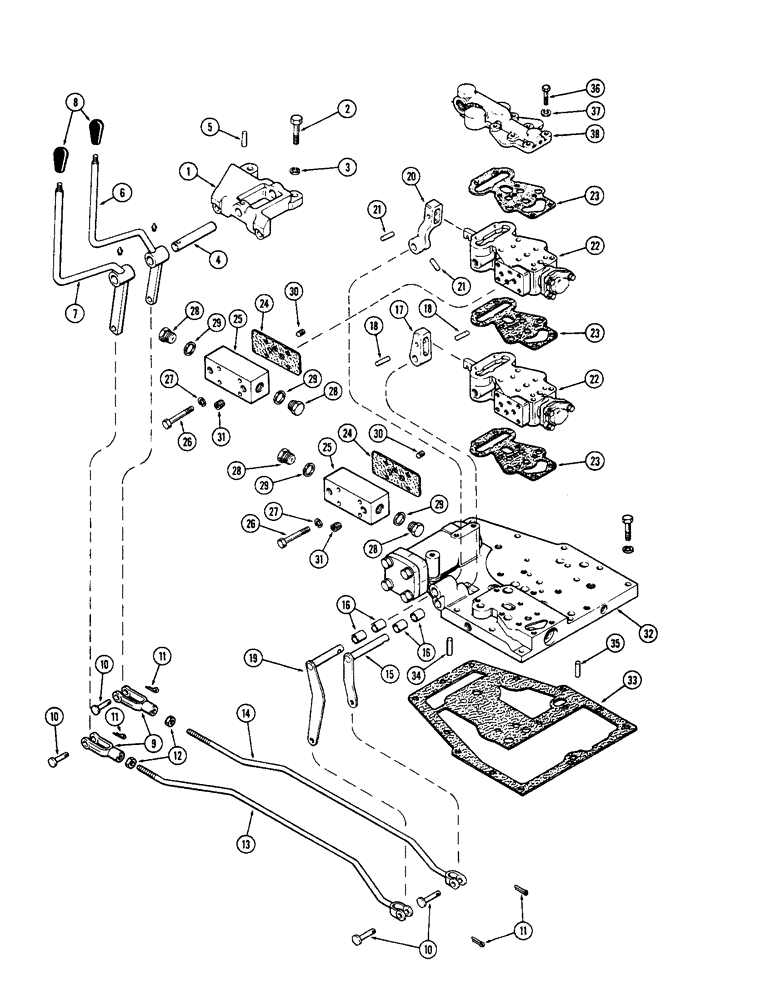

Схема запчастей Case 580 - (150) - REMOTE HYDRAULIC CONTROLS, POWER SHUTTLE (35) - HYDRAULIC SYSTEMS
36
28
30
16
38
31
29
33
4
22
26
2
24
6
18
25
22
27
9
37
26
21
21
16
23
35
30
25
11
32
11
14
29
28
28
34
15
27
1
23
10
18
29
29
13
5
7
3
31
12
19
23
11
20
10
17
28
24
10
8

Артикул

Название

Примечание

Количество

1

A35478

BRACKET

- hand lever

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

4

A35488

SHAFT

- pivot, hand lever

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

A37339

LEVER

- hand, inner

1шт.

7

A37341

LEVER - hand, outer

1шт.

8

A14051

GRIP

KNOB - hand lever

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to lever

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

4шт.

11

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

4шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

13

A35480

ROD - control, outer

1шт.

14

A35479

ROD - control, inner

1шт.

15

A35448

CRANK

- lower, Serial Range: valve-rod

1шт.

16

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - crank

4шт.

17

G1108

ARM ASSY.

BELLCRANK - lower valve spool

1шт.

18

138-2005

PIN,1/4" x 1", Coiled

2шт.

19

A35449

CRANK - upper, Serial Range: valve-rod

1шт.

20

G1107

CRANK

BELLCRANK - upper valve spool

1шт.

21

138-2005

PIN,1/4" x 1", Coiled

2шт.

22

A35618

LOCK VALVE

VALVE ASSY. - control (Repairs Figure 146)

2шт.

23

A35617

GASKET

- valve

3шт.

24

G10930

GASKET

-, Serial Range: manifold-valve

2шт.

25

A35437

MANIFOLD

VALVE - manifold

1шт.

26

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

26

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT - 5/16 x 2-3/8" N.C. hex. hd.

2шт.

27

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

8шт.

28

A14280

PLUG

- end, manifold

4шт.

29

A27927

OIL PAN GASKET SET

- end plug

4шт.

30

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Manifold inner Hex Soc, 1/4"-18 NPTF

2шт.

31

221-1843

PLUG

- pipe (Lower manifold only) (3/8" P.T., sckt. hd.)

1шт.

32

A37869

HOUSING

- adapter, hyd. (Includes plug) (See Figure 96)

1шт.

33

A37517

GASKET,0.79mm Thk

- adapter housing

1шт.

34

G10711

PIN

- dowel, rear (1/2 x 3/4")

1шт.

35

A29426

AXLE PIN

PIN - dowel, front (3/8 x 3/4")

1шт.

36

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

- 5/16 x 5-1/4" N.C. hex. hd.

7шт.

36

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

8шт.

38

A35440

COVER - valve (w/no hitch)

1шт.

Выбрано товаров: 40
